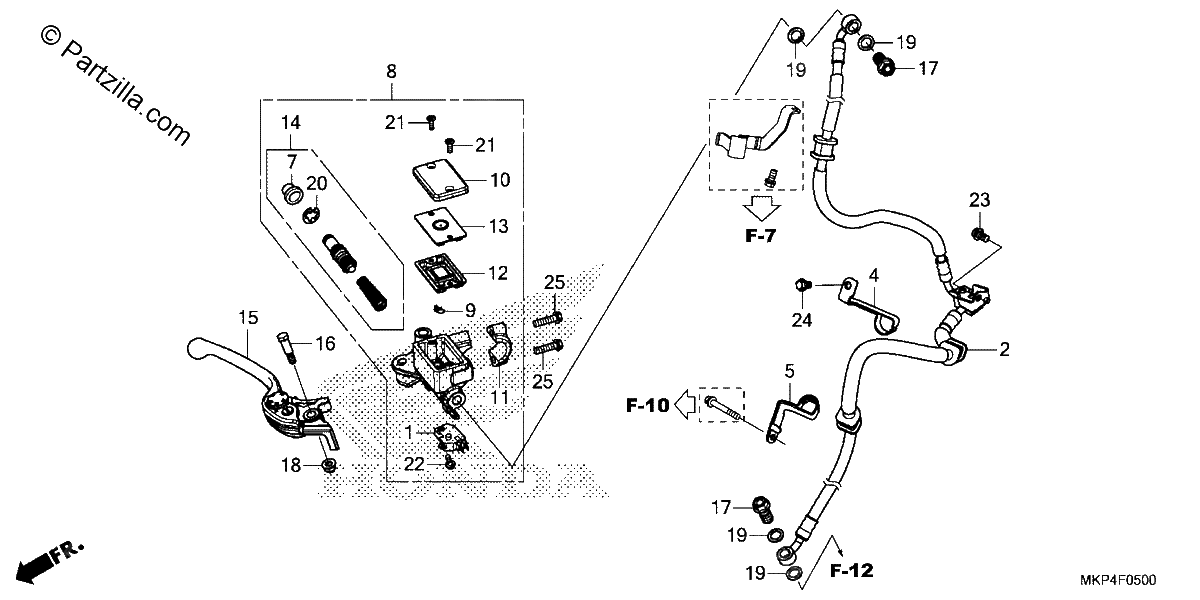

FRONT BRAKE MASTER CYLINDER 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
#002
HOSE, Front BRAKE
$118.26¢59 131
#004
CLAMP A, FR. BRAKE HOSE
$68.61¢34 306
#005
CLAMP B, FR. BRAKE HOSE
$59.18¢29 588
#007
BOOT
$14.24¢7 119
#008
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)
$157.13¢78 563
#008
MASTER CYLINDER SUB-ASSY., FR.BRAKE (NISSIN)
$157.13¢78 563
#009
PROTECTOR
$5.20¢2 600
#010
CAP, MASTER CYLINDER (COO)
$5.04¢2 519
#010
CAP, MASTER CYLINDER
$5.04¢2 519
#011
HOLDER, MASTER CYLINDER
$15.74¢7 869
#012
DIAPHRAGM
$10.88¢5 438
#013
PLATE, DIAPHRAGM
$2.92¢1 463
#014
MASTER CYLINDER SET
$46.40¢23 200
#015
LEVER ASSY., R. HANDLE
$106.42¢53 213
#016
BOLT, HANDLE LEVER PIVOT
$7.88¢3 938
#017
BOLT, OIL (10X22)
$8.89¢4 444
#018
NUT, CAP (6MM)
$3.65¢1 825
#019
WASHER, OIL BOLT
$4.85¢2 425
#020
CIRCLIP
$3.10¢1 550
#021
SCREW, FLAT (4X12)
$1.16¢581
#021
SCREW, FLAT (4X12)
$1.16¢581
#022
SCREW-WASHER (4X12)
$1.72¢862
#022
SCREW-WASHER (4X12)
$1.72¢862
#023
BOLT, FLANGE (6X10)
$2.09¢1 044
#024
BOLT, FLANGE (6X10)
$5.76¢2 881
#025
BOLT, FLANGE (6X22)
$2.99¢1 494
