CRANKCASE

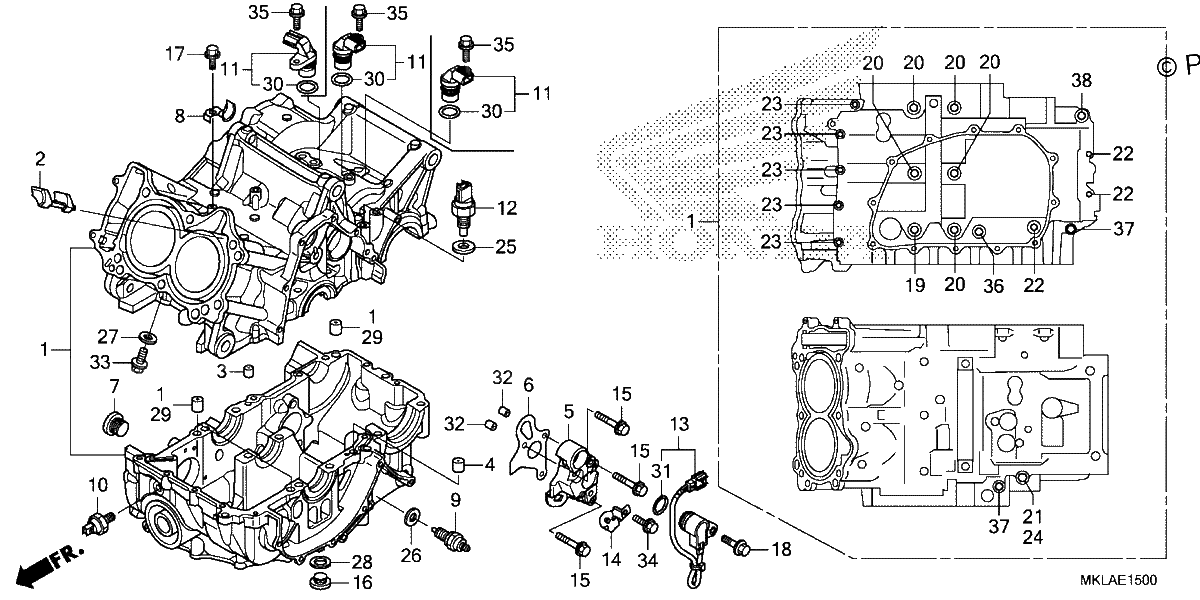

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CRANKCASE SET
$2741.22¢1 370 610
#002
PLATE, PARTITION
$6.77¢3 387
#003
ORIFICE (1.1MM)
$4.45¢2 225
#004
ORIFICE (1.5MM)
$4.90¢2 449
#005
HOLDER, ANGLE SENSOR
$51.39¢25 697
#006
GASKET, CHANGE SWITCH
$8.56¢4 278
#007
BOLT, SEALING (20MM)
$10.80¢5 399
#008
STAY, FUEL HOSE
$5.37¢2 685
#009
SWITCH Assembly., NEUTRAL
$22.60¢11 299
#010
SWITCH Assembly., OIL PRESSURE (DENSO)
$103.06¢51 532
#011
SENSOR ASSY., SPEED
$70.60¢35 299
#013
SENSOR ASSY., ANGLE (350DEGREE)
$236.49¢118 243
#014
STAY, ANGLE SENSOR WIRE
$3.89¢1 943
#015
BOLT, FLANGE (6X28)
$2.32¢1 162
#016
BOLT, SEALING (12X8)
$7.54¢3 772
#017
BOLT, FLANGE (6X16)
$1.18¢592
#018
BOLT, KNOCK (6MM)
$3.42¢1 708
#019
BOLT, FLANGE (9X150)
$15.65¢7 826
#020
BOLT, FLANGE (9X125)
$5.69¢2 846
#021
BOLT, FLANGE (8X100)
$3.96¢1 978
#022
BOLT, SPECIAL (6X45)
$3.86¢1 932
#023
BOLT, SPECIAL (6X32)
$3.27¢1 633
#024
WASHER, SEALING (8MM)
$2.09¢1 047
#026
WASHER, NEUTRAL
$2.28¢1 138
#027
WASHER, SEALING (6.5MM)
$3.36¢1 679
#028
WASHER (12MM)
$3.47¢1 737
#029
PIN, DOWEL (10X16)
$4.80¢2 398
#030
O-RING B
$3.09¢1 547
#031
O-RING (16.5X2.5)
$5.69¢2 846
#032
PIN, DOWEL (8X10)
$2.66¢1 328
#033
BOLT, FLANGE (6X12)
$1.92¢960
#034
BOLT, FLANGE (6X14)
$1.13¢564
#035
BOLT, FLANGE (6X18)
$1.92¢960
#036
BOLT, FLANGE (8X45)
$1.74¢868
#037
BOLT, FLANGE (8X70)
$3.16¢1 581
#038
BOLT, FLANGE (10X70)
$2.60¢1 299
