MIDDLE COWL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

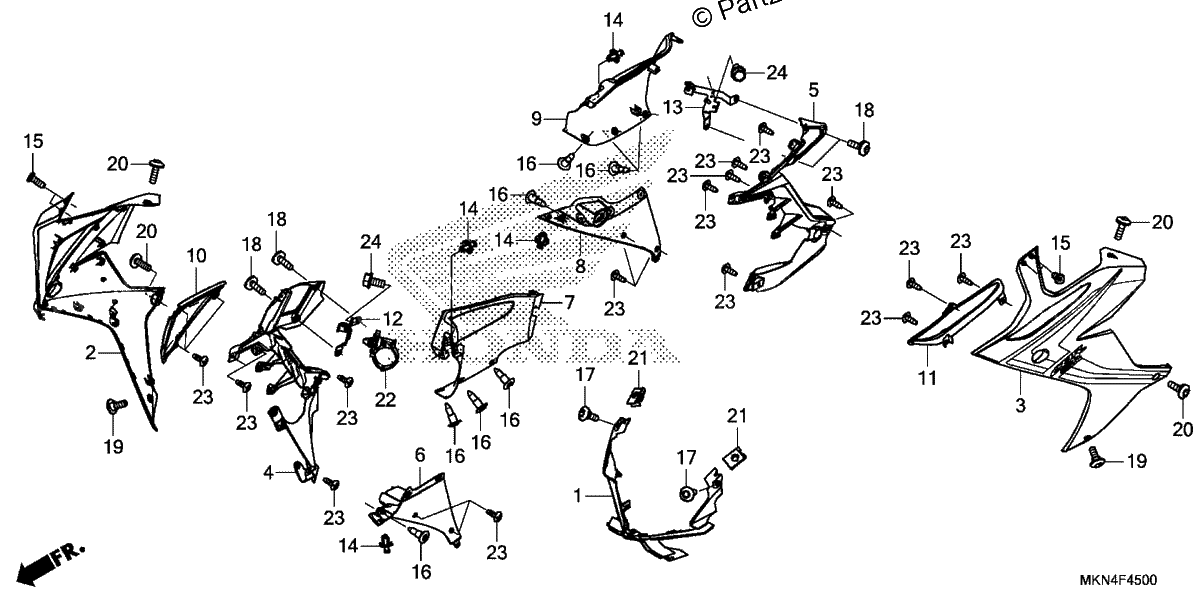

Diagrama de MIDDLE COWL

Repuestos

#001
64191-MKN-D10
COVER, Front. (LOWER) (WOL)
$11.55¢5 775
1
#002
64210-MKN-D30ZA
COWL SET A, R. MIDDLE (TYPE1) (WL)
$168.32¢84 163
1
#003
64220-MKN-D30ZA
COWL SET A, L MIDDLE (TYPE1) (WL)
$196.54¢98 269
1
#004
64232-MKN-D10
COWL B, Right MIDDLE (WOL)
$29.15¢14 575
1
#005
64242-MKN-D10
COWL B, L. MIDDLE
$29.01¢14 506
1
#006
64251-MKN-D10
PANEL, R. MIDDLE (INNER)
$17.00¢8 500
1
#007
64256-MKN-D10
PANEL, Right. (UPPER) (INNER)
$20.46¢10 231
1
#008
64261-MKN-D10
PANEL, L MIDDLE (INNER)
$19.86¢9 931
1
#009
64266-MKN-D10
PANEL, L. (UPPER) (INNER)
$20.46¢10 231
1
#010
64271-MKN-D10
COVER, Right AIR DUCT
$12.31¢6 156
1
#011
64281-MKN-D10
COVER, L AIR DUCT
$14.39¢7 194
1
#012
64650-MKN-D10
STAY, R. MIDDLE COWL
$17.18¢8 588
1
#013
64660-MKN-D10
STAY, L. MIDDLE COWL
$18.52¢9 263
1
#014
90116-K0A-E11
RIVET, PUSH (6MM)
$1.66¢831
1
#015
90116-MKF-D40
BOLT, SPECIAL (5X16)
$3.28¢1 638
1
#016
90116-SP0-003
CLIP, BUMPER SEAL
$5.72¢2 863
1
#017
90124-MKN-D50
SCREW, SPECIAL (5X14)
$1.72¢862
1
#018
90133-MKN-D50
SCREW, PAN (5X16)
$1.72¢862
1
#019
90134-KPP-T00
SCREW, PAN (5X14)
$1.23¢613
1
#020
90134-MJE-D00
SCREW, PAN (5X16)
$1.45¢725
1
#021
90677-KAN-T00
NUT, CLIP (5MM)
$0.83¢413
1
#022
91556-HL1-A00
CLIP, WATER HOSE
$4.26¢2 131
1
#023
93903-24380
SCREW, TAPPING (4X12)
$1.16¢581
1
#024
95701-06012-07
BOLT, FLANGE (6X12)
$2.09¢1 044
1
