RADIATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

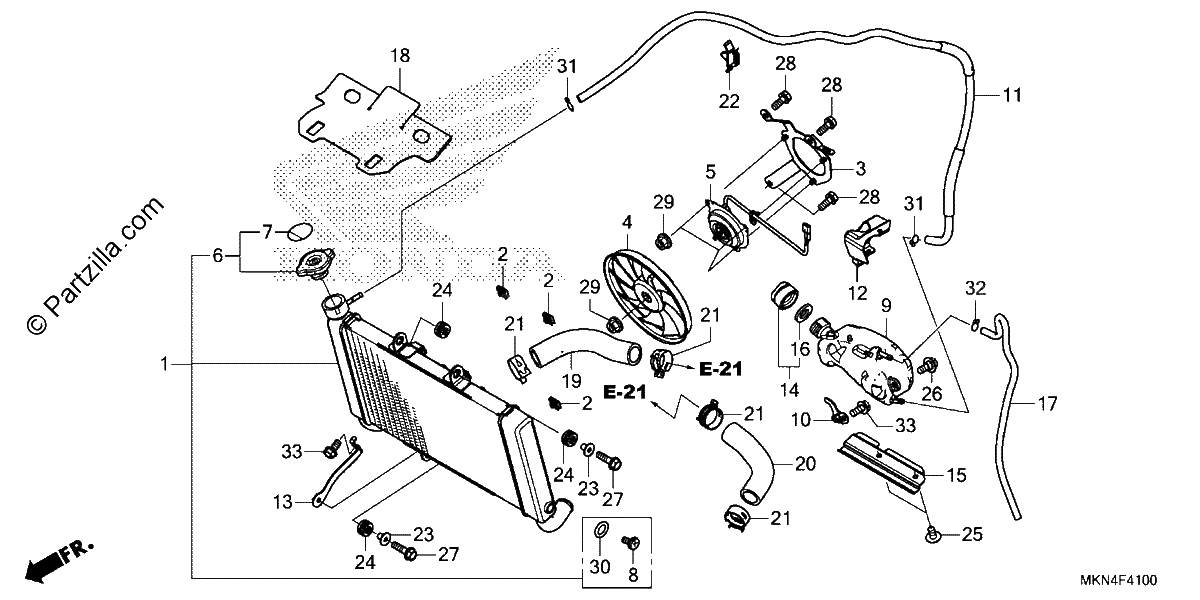

Diagrama de RADIATOR

Repuestos

#001
19010-MKN-L21
RADIATOR (TOYO)
$273.71¢136 856
1
#002
19014-KEA-003
NUT, SETTING (6MM)
$3.75¢1 875
1
#003
19015-MJE-D01
SHROUD
$26.34¢13 169
1
#004
19020-MFG-D01
FAN, COOLING
$52.88¢26 438
1
#005
19030-MKN-D51
MOTOR Assembly., FAN
$150.88¢75 438
1
#006
19037-GEE-710
CAP, RADIATOR
$35.16¢17 581
1
#007
19046-PAA-A00
LABEL, RADIATOR CAP
$3.65¢1 825
1
#008
19071-MEC-003
PETCOCK, DRAIN
$4.34¢2 169
1
#009
19101-MJE-D00
TANK, RADIATOR RESERVE
$9.75¢4 875
1
#010
19102-MJE-D00
STAY, RESERVE TANK
$3.79¢1 894
1
#011
19103-MJE-D00
TUBE, RESERVE TANK
$16.74¢8 369
1
#012
19104-MJE-D00
COVER, RESERVE TANK
$7.38¢3 688
1
#013
19105-MJE-D00
STAY, RADIATOR (LOWER)
$10.58¢5 288
1
#014
19106-GET-000
CAP ASSY., RESERVE TANK
$8.36¢4 181
1
#015
19106-MJE-DB0
GUARD, RESERVE TANK HEAT
$14.10¢7 050
1
#016
19107-GET-000
GASKET, RESERVE TANK
$4.54¢2 269
1
#017
19108-MJE-D00
TUBE, RESERVE TANK OVERFLOW
$8.11¢4 056
1
#018
19126-MKN-D50
GUARD, RADIATOR HEAT
$7.19¢3 594
1
#019
19501-MJE-D00
HOSE A, RADIATOR
$17.38¢8 688
1
#020
19502-MJE-D00
HOSE B, RADIATOR
$16.13¢8 063
1
#021
19511-R9G-004
CLIP, WATER HOSE
$8.88¢4 438
1
#022
32161-393-003
CLIP, WIRE HARNESS
$3.77¢1 888
1
#023
61102-KTY-D30
COLLAR, RADIATOR MOUNTING
$4.86¢2 431
1
#024
61304-415-000
RUBBER, HEADLIGHT CASE MOUNTING
$4.20¢2 100
1
#025
90106-KRG-000
SCREW, PAN (6X12)
$2.81¢1 406
1
#026
90111-162-000
BOLT, FLANGE (6MM)
$3.65¢1 825
1
#027
90115-MKN-D50
BOLT, FLANGE (6X22)
$1.57¢788
1
#028
90120-GHB-601
BOLT-WASHER (6X12)
$2.48¢1 238
1
#029
90315-MK3-003
NUT, SERRATE (5MM)
$2.99¢1 494
1
#030
91353-MEC-003
O-RING (9.8X1.9)
$4.15¢2 075
1
#031
95002-02100
CLIP, TUBE (B10)
$2.44¢1 219
1
#032
95002-50000
CLIP, TUBE (C9)
$1.54¢769
1
#033
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
