OIL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

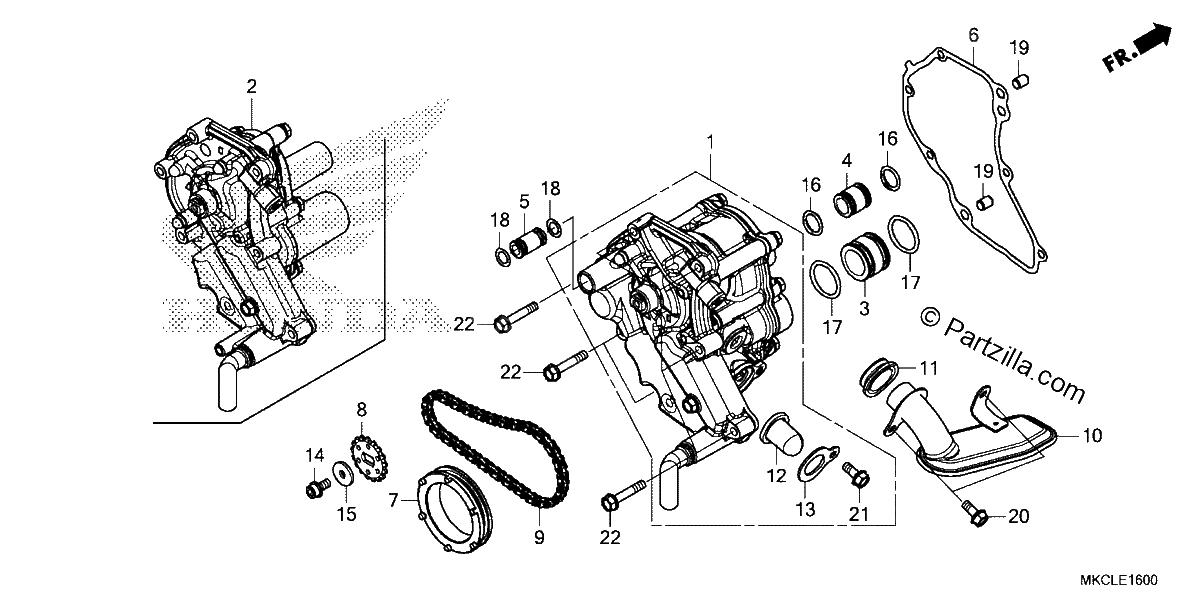

Diagrama de OIL PUMP

Repuestos

#002
15100-MKC-A20
PUMP ASSY., OIL
$195.06¢97 532
1
#003
15106-MKC-A00
JOINT, FEED LINE (IN)
$13.50¢6 751
1
#004
15107-MKC-A00
JOINT, FEED LINE (OUT)
$10.27¢5 135
1
#007
15131-MKC-A01
SPROCKET, OIL PUMP DRIVE (31T)
$73.42¢36 708
1
#008
15134-MKC-A00
SPROCKET, OIL PUMP DRIVEN (17T)
$48.98¢24 489
1
#009
15135-MCA-003
CHAIN, OIL PUMP (DID25H-54L) (54L) (DAIDO)
$25.06¢12 529
1
#010
15150-MKC-A00
STRAINER, OIL
$56.59¢28 296
1
#011
15154-MM5-000
GASKET, OIL STRAINER
$7.37¢3 686
1
#014
90003-HA0-003
BOLT, SOCKET (6X12)
$3.09¢1 547
1
#015
90488-MB0-000
WASHER (6X2.3)
$5.69¢2 846
1
#016
91303-MKC-A00
O-RING (14.8X2.4)
$4.09¢2 047
1
#017
91305-384-750
O-RING (25X3)
$3.36¢1 679
1
#017
91305-MN1-670
O-RING (25X3)
$3.36¢1 679
1
#019
94301-08100
PIN, DOWEL (8X10)
$2.66¢1 328
1
#020
95701-06014-00
BOLT, FLANGE (6X14)
$1.13¢564
1
#022
95701-06032-00
BOLT, FLANGE (6X32)
$2.22¢1 110
1
