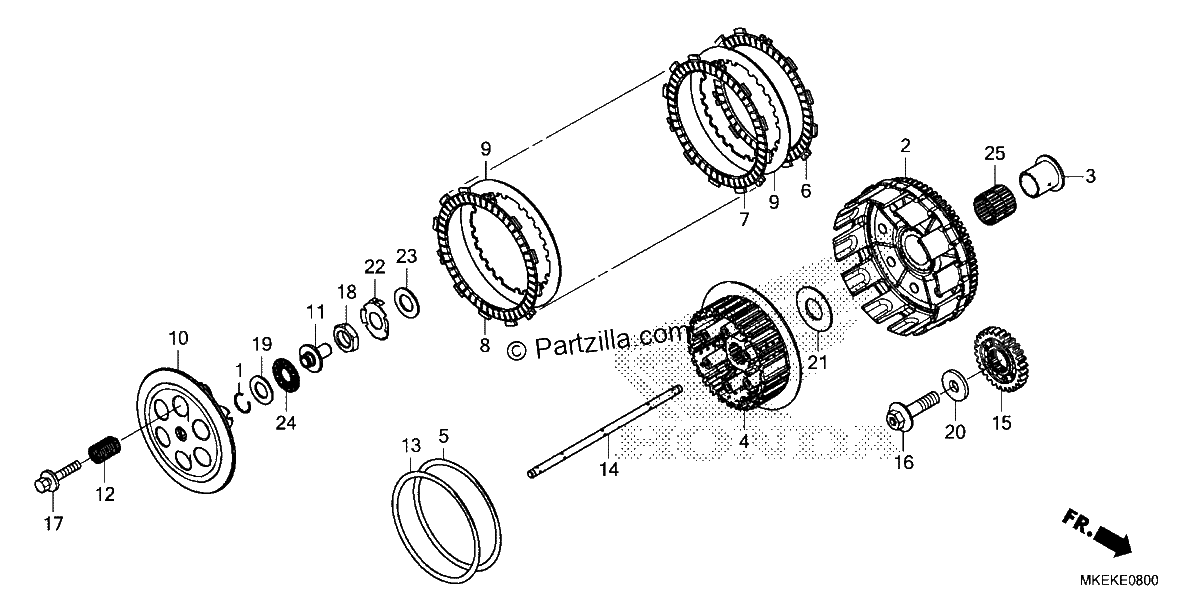

CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

Repuestos

#001

13115-147-000

CLIP, PISTON PIN (10MM)

$2.85¢1 425

#002

22100-MKE-A00

CLUTCH OUTER

$506.41¢253 206

#003

22106-KS7-000

COLLAR, CLUTCH (OUTER)

$30.59¢15 294

#004

22120-MKE-A00

CENTER, CLUTCH

$112.04¢56 019

#005

22125-MBN-670

SEAT, JUDDER SPRING

$9.83¢4 913

#006

22201-MBN-670

DISK, CLUTCH FRICTION

$23.46¢11 731

#007

22201-MEN-670

DISK B, CLUTCH FRICTION

$17.05¢8 525

#008

22201-MEN-A10

DISK, CLUTCH FRICTION

$17.75¢8 875

#009

22321-MKE-A00

PLATE B, CLUTCH

$15.80¢7 900

#010

22351-MKE-A70

PLATE, CLUTCH PRESSURE

$81.13¢40 563

#011

22352-MKE-A70

PIECE, CLUTCH LIFTER

$55.54¢27 769

#012

22401-MEN-A80

SPRING, CLUTCH

$5.76¢2 881

#013

22402-MBN-670

SPRING, JUDDER

$24.76¢12 381

#014

22850-MKE-A00

ROD, CLUTCH LIFTER

$78.44¢39 219

#015

23121-MKE-A00

GEAR, PRIMARY DRIVE (28T)

$94.54¢47 269

#016

90013-MEY-670

BOLT, SPECIAL (12X47)

$8.51¢4 256

#017

90024-MEN-A70

BOLT-WASHER (6X35)

$3.11¢1 556

#018

90235-MEN-A30

NUT (18MM)

$6.23¢3 113

#019

90401-MKE-A70

WASHER (12.1X25X1)

$2.99¢1 494

#020

90402-KW6-960

WASHER, PLAIN (12MM)

$6.74¢3 369

#021

90421-MKE-A00

WASHER (23X48X2)

$8.94¢4 469

#022

90461-KZ3-J10

WASHER, LOCK (18MM)

$7.57¢3 787

#023

90501-ML3-910

WASHER (18X32X2)

$5.30¢2 650

#024

91001-147-003

BEARING, NEEDLE (12MM) (NTN)

$14.60¢7 300

#025

91021-ML3-003

BEARING, NEEDLE (28X32X27.2) (THOMPSON)

$20.90¢10 450
