RIGHT CRANKCASE COVER WATER PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

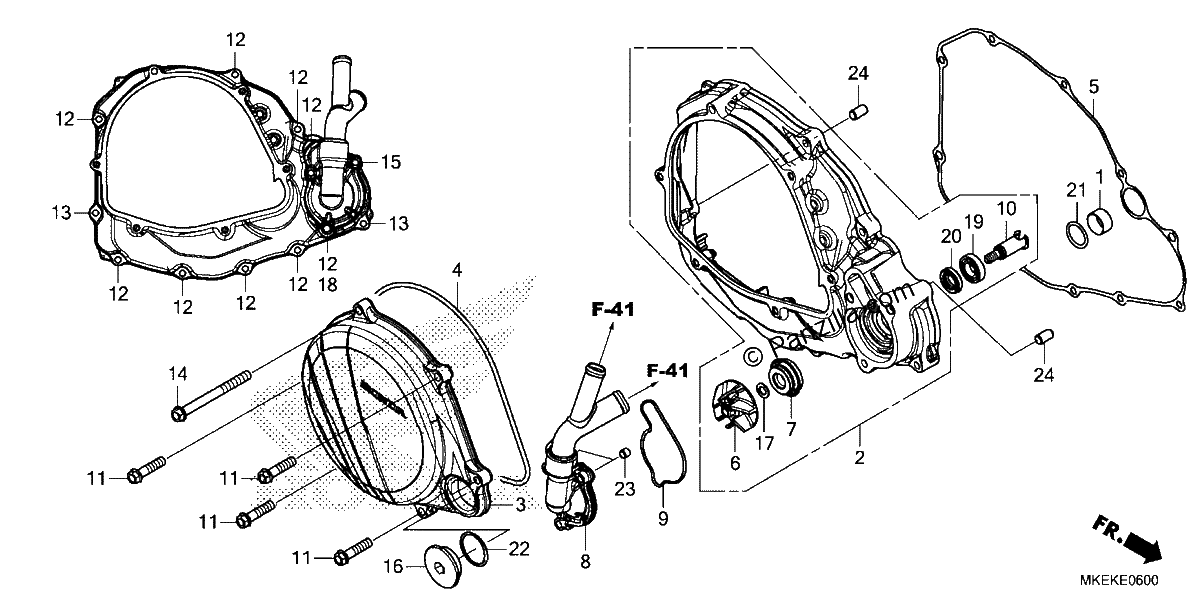

Diagrama de RIGHT CRANKCASE COVER WATER PUMP

Repuestos

#001
11102-MKE-A00
COLLAR, WATER PASS
$5.28¢2 639
1
#002
11330-MKE-A70
COVER Assembly., Right CRANKCASE
$350.58¢175 289
1
#003
11351-MKE-A00
COVER, CLUTCH
$158.76¢79 379
1
#004
11352-MKE-A70
GASKET, CLUTCH COVER
$13.17¢6 584
1
#005
11394-MKE-A71
GASKET, Right COVER
$32.99¢16 497
1
#006
19215-MEN-850
IMPELLER, WATER PUMP
$45.48¢22 741
1
#007
19217-KRN-A61
SEAL, MECHANICAL
$49.55¢24 777
1
#008
19220-MKE-A00
COVER, WATER PUMP
$129.36¢64 682
1
#009
19226-MKE-A00
GASKET, WATER PUMP
$5.70¢2 852
1
#010
19241-MKE-A00
SHAFT, WATER PUMP
$64.33¢32 165
1
#011
90020-GHB-680
BOLT, FLANGE (6X25)
$2.68¢1 340
1
#012
90020-GHB-690
BOLT, FLANGE (6X28)
$2.75¢1 374
1
#013
90020-GHB-720
BOLT, FLANGE (6X35)
$2.94¢1 472
1
#014
90020-GHB-790
BOLT, FLANGE (6X65)
$3.62¢1 811
1
#015
90020-GHB-810
BOLT, FLANGE (6X75)
$3.81¢1 903
1
#016
90087-HB5-000
CAP (30MM)
$17.95¢8 976
1
#017
90447-KE1-000
WASHER, SEALING (7MM)
$3.15¢1 576
1
#018
90463-ML7-000
WASHER, SEALING (6.5MM)
$3.36¢1 679
1
#019
91002-MEN-A31
BEARING, BALL (12X24X6)
$9.50¢4 749
1
#020
91201-148-003
OIL SEAL (12X22X5) (ARAI)
$4.52¢2 260
1
#020
91201-965-000
OIL SEAL (12X22X5)
$4.52¢2 260
1
#021
91302-MKE-A70
O-RING (2.4X19)
$2.27¢1 133
1
#022
91305-KF0-003
O-RING (27X2) (ARAI)
$3.36¢1 679
1
#023
91320-KE1-000
PIN, DOWEL (8X7)
$2.64¢1 322
1
#024
94301-08140
PIN, DOWEL (8X14)
$2.66¢1 328
1
