CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

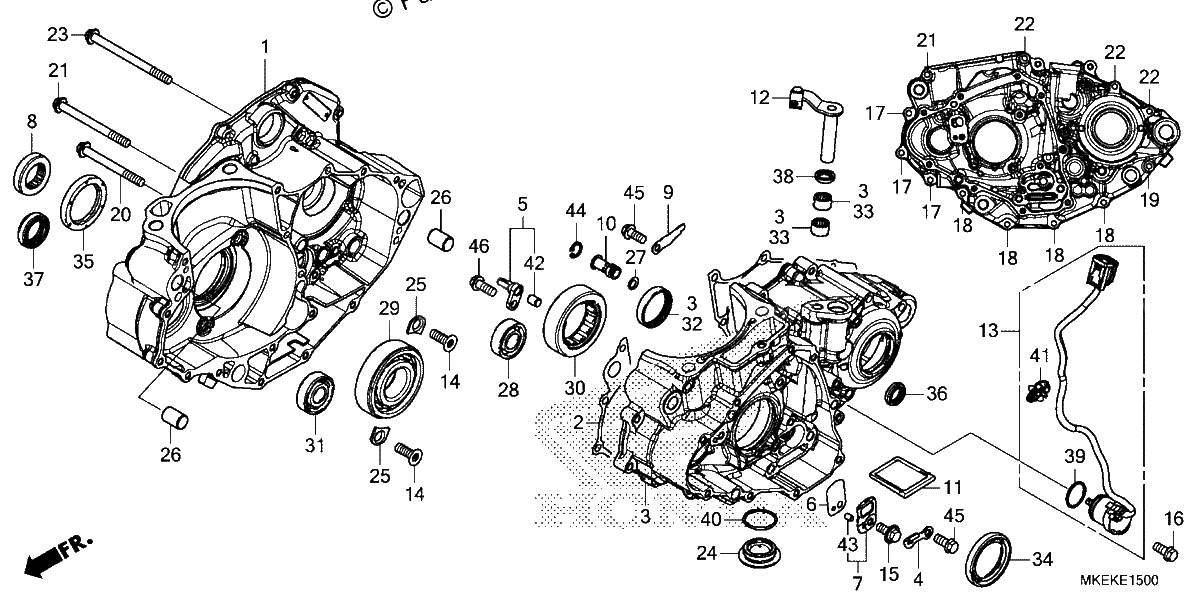

Diagrama de CRANKCASE

Repuestos

#001
11100-MKE-A70
CRANKCASE, Right.
$557.37¢278 685
1
#002
11191-MKE-A01
GASKET, CRANKCASE
$22.65¢11 327
1
#003
11200-MKE-A70
CRANKCASE, L.
$561.99¢280 997
1
#004
11206-MKE-A00
PLATE, CAM CHAIN GUIDE
$3.89¢1 943
1
#005
11210-MKE-A71
JET, PISTON
$46.30¢23 149
1
#006
11221-MKE-A00
VALVE, REED
$8.68¢4 341
1
#007
11230-MKE-A00
STOPPER, REED VALVE
$31.79¢15 893
1
#008
13415-MKE-A00
COLLAR, CRANKSHAFT
$36.33¢18 164
1
#009
15201-MKE-A00
PLATE, OIL GUIDE
$5.36¢2 680
1
#010
15220-MEN-A30
VALVE ASSY., RELIEF
$29.20¢14 599
1
#011
15421-MKE-A70
SCREEN, OIL FILTER
$15.18¢7 590
1
#012
22810-MKE-A70
LEVER, CLUTCH LIFTER
$60.83¢30 417
1
#013
35759-MKE-A71
SWITCH Assembly., CHANGE
$115.70¢57 851
1
#013
35759-MKE-A72
SWITCH Assembly., CHANGE
$115.70¢57 851
1
#014
90001-MEN-850
SCREW, SPECIAL FLAT (6X17)
$2.13¢1 064
1
#015
90019-MKE-A00
BOLT-WASHER (6X14)
$2.81¢1 403
1
#016
90020-GHB-620
BOLT, FLANGE (6X12)
$2.54¢1 271
1
#017
90025-GHB-690
BOLT, FLANGE (6X28)
$2.75¢1 374
1
#018
90025-GHB-740
BOLT, FLANGE (6X40)
$3.15¢1 576
1
#019
90025-GHB-760
BOLT, FLANGE (6X50)
$3.43¢1 713
1
#020
90025-GHB-780
BOLT, FLANGE (6X60)
$3.62¢1 811
1
#021
90025-GHB-800
BOLT, FLANGE (6X70)
$3.71¢1 857
1
#022
90025-GHB-810
BOLT, FLANGE (6X75)
$3.36¢1 679
1
#023
90025-GHB-820
BOLT, FLANGE (6X80)
$3.89¢1 943
1
#024
90088-MKE-A70
BOLT, DRAIN (30MM)
$17.76¢8 878
1
#025
90441-MEN-A30
PLATE, BEARING HOLDER
$4.01¢2 007
1
#026
90701-MKE-A00
PIN, DOWEL (14X20)
$4.92¢2 461
1
#027
90751-GK1-003
O-RING (8.5X1.7)
$3.21¢1 604
1
#028
91001-MEN-A31
BEARING, RADIAL BALL SPECIAL (6202)
$11.94¢5 969
1
#029
91001-MKE-A71
BEARING, RADIAL BALL (30X72X19)
$53.64¢26 818
1
#030
91002-MEY-671
BEARING, SPECIAL ROLLER (NTN)
$53.72¢26 858
1
#031
91004-MKE-A01
BEARING, RADIAL BALL (15X38X11)
$25.46¢12 731
1
#032
91022-KA4-741
BEARING, SHELL (33X38X8) (NTN)
$19.93¢9 965
1
#033
91053-719-005
BEARING, NEEDLE (12X16X10) (NTN)
No Disponible
1
#033
91101-PZ9-000
BEARING, NEEDLE (12X16X10)
$9.34¢4 669
1
#034
91201-MEB-671
OIL SEAL (38X52X7) (ARAI)
$14.16¢7 078
1
#035
91202-MKE-A01
OIL SEAL (39X53X7)
$17.99¢8 993
1
#036
91203-KSP-911
OIL SEAL (14X22X5) (ARAI)
$2.28¢1 138
1
#037
91203-MKE-A01
OIL SEAL (22X33X7.5)
$8.82¢4 410
1
#038
91205-MEB-671
OIL SEAL (12X18X3) (ARAI)
$3.85¢1 926
1
#039
91305-KC1-850
O-RING (16.5X2.5)
$2.32¢1 162
1
#040
91356-425-005
O-RING (29.7X2.4) (NOK)
$3.36¢1 679
1
#041
91541-S0A-003
CLIP, HARNESS BAND (145MM) (BLACK)
$3.69¢1 846
1
#042
94301-08100
PIN, DOWEL (8X10)
$2.66¢1 328
1
#043
94303-04065
PIN C, DOWEL (4X6.5)
$2.53¢1 265
1
#044
94520-14000
CIRCLIP, INNER (14MM)
$1.09¢546
1
#045
96001-06014-00
BOLT, FLANGE (6X14)
$2.13¢1 064
1
#046
96001-06016-00
BOLT, FLANGE (6X16)
$1.24¢621
1
