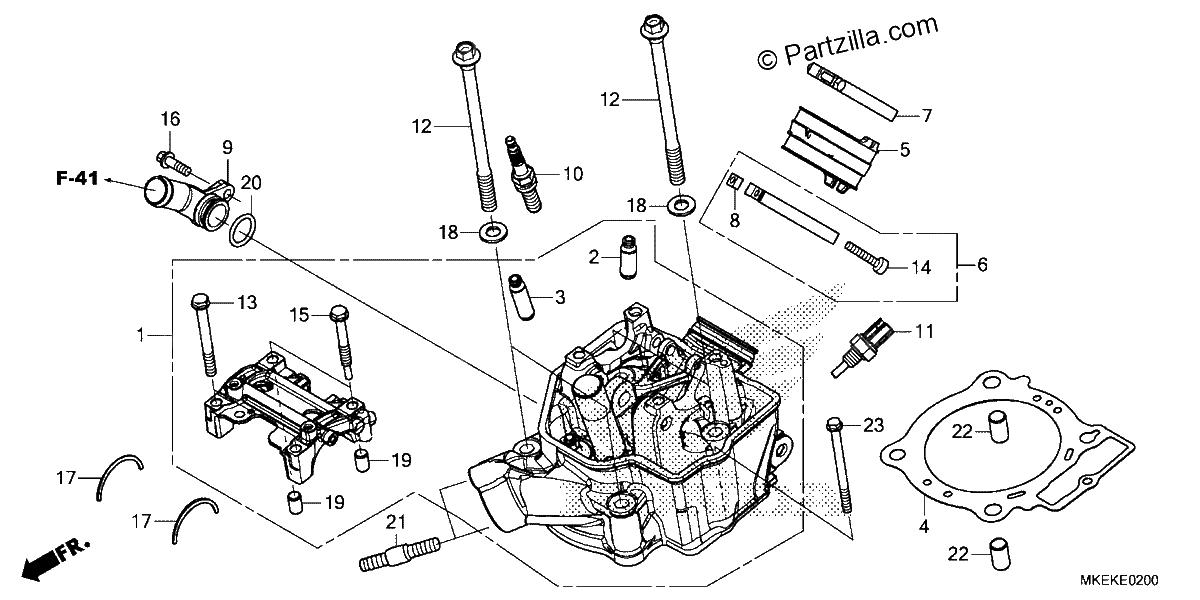

CYLINDER HEAD
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CYLINDER HEAD Assembly BARE (AVAIL THROUGH CONTROLLED PARTORDER- SEE PIB#17170 TO ORDER)
No Disponible
#002
GUIDE, VALVE (OVER SIZE)
$20.86¢10 431
#003
GUIDE, EX. VALVE (O.S.)
$18.54¢9 269
#004
GASKET, CYLINDER HEAD
$47.53¢23 763
#005
INSULATOR, THROTTLE BODY
$21.09¢10 544
#006
BAND A, INSULATOR
$10.61¢5 306
#007
BAND, INSULATOR
$9.14¢4 569
#008
NUT, SQUARE (5MM)
$2.76¢1 381
#009
JOINT, WATER
$29.94¢14 969
#010
SPARK PLUG (SILMAR9A9S) (NGK)
$21.36¢10 681
#010
SPARK PLUG (SILMAR10A9S) (NGK)
$21.36¢10 681
#011
SENSOR ASSY., WATER TEMPERATURE
$58.26¢29 131
#012
BOLT, FLANGE (10X143)
$11.11¢5 556
#013
BOLT, FLANGE (7X65)
$3.65¢1 825
#014
BOLT, RECESSED (5X28)
$1.95¢975
#015
BOLT, SPECIAL (7X45)
$3.65¢1 825
#016
BOLT, FLANGE (6X20)
$2.99¢1 494
#017
WASHER, CAMSHAFT THRUST
$3.40¢1 700
#018
WASHER, PLAIN (10MM)
$3.65¢1 825
#019
PIN, DOWEL (9X14)
$5.21¢2 606
#020
O-RING (19X3) (NOK)
$3.36¢1 681
#021
BOLT, STUD (8X22)
$2.75¢1 375
#022
PIN, DOWEL (12X20)
$2.95¢1 475
#023
BOLT, FLANGE (6X80)
$2.85¢1 425
