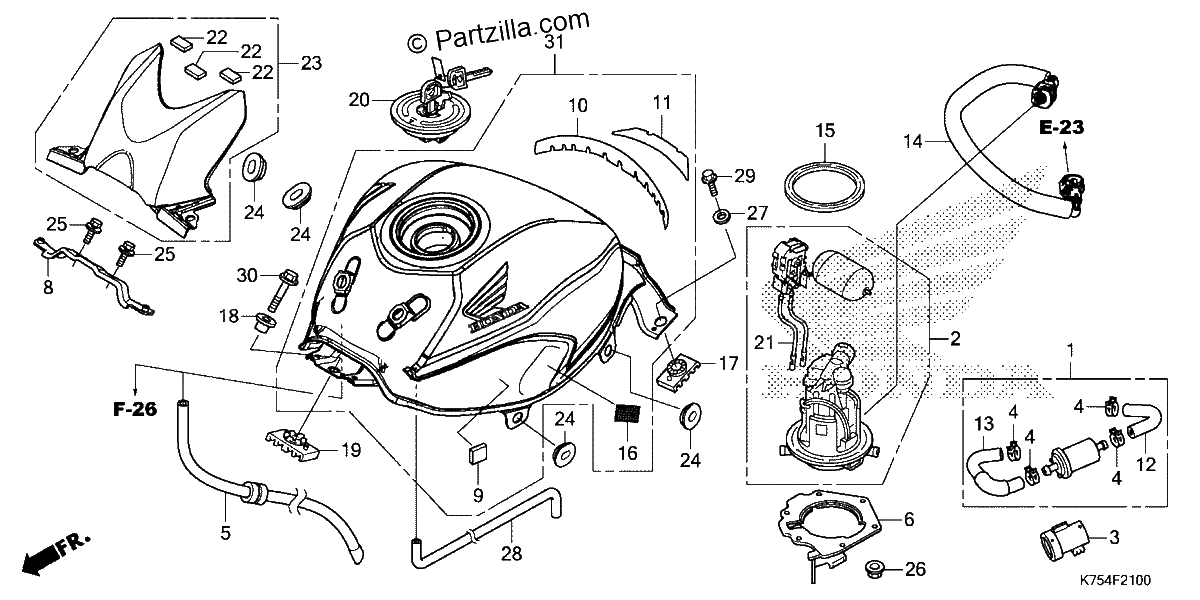

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
FILTER KIT, FUEL
$65.14¢32 569
#002
PUMP ASSY., FUEL
$557.70¢278 850
#003
HOLDER, FUEL FILTER
$11.83¢5 913
#004
CLAMP, TUBE (14.0)
$1.82¢913
#006
PLATE, SETTING
$8.97¢4 488
#008
STAY, TANK LID
$8.18¢4 088
#009
RUBBER, FUEL TANK
$2.46¢1 231
#010
FILM A, TANK PROTECTOR
$16.96¢8 481
#011
FILM B, TANK PROTECTOR
$11.73¢5 863
#012
TUBE A, FUEL PUMP
$21.68¢10 838
#013
TUBE B, FUEL PUMP
$31.64¢15 819
#014
HOSE, FUEL FEED
$68.79¢34 394
#015
GASKET, FUEL PUMP
$26.81¢13 406
#016
FASTENER A, DUAL LOCK (18X28)
$3.15¢1 575
#017
CUSHION, FUEL TANK (B)
$3.71¢1 856
#018
COLLAR, FUEL TANK
$2.17¢1 088
#019
CUSHION, FUEL TANK (A)
$4.55¢2 275
#020
CAP, FUEL FILLER
$160.29¢80 144
#020
CAP, FUEL FILLER
$160.29¢80 144
#021
FUEL UNIT
$149.32¢74 663
#022
RUBBER SPONGE, TANK COVER
$1.76¢881
#023
COVER ASSY., FUEL TANK *NH436M*(MAT GUNPOWDER BLACK METALLIC)
$41.96¢20 981
#023
COVER ASSY., FUEL TANK *R380*(GRAND PRIX RED)
$41.92¢20 963
#024
GROMMET, AIR CLEANER HOUSING
$4.45¢2 225
#025
BOLT-WASHER (6X14)
$2.09¢1 044
#026
NUT, FLANGE (6MM)
$0.80¢400
#027
WASHER, PLAIN (6MM)
$1.00¢500
#028
BULK HOSE, VACUUM (8X1000) (8X50)
$27.96¢13 981
#029
BOLT, FLANGE (6X12)
$1.99¢994
#030
BOLT, FLANGE (8X30)
$1.80¢900
#031
TANK SUB-ASSY., FUEL (TYPE3) (WL)
$632.92¢316 463
#031
TANK SUB-ASSY., FUEL (TYPE1) (WL)
$632.92¢316 463
