RIGHT CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

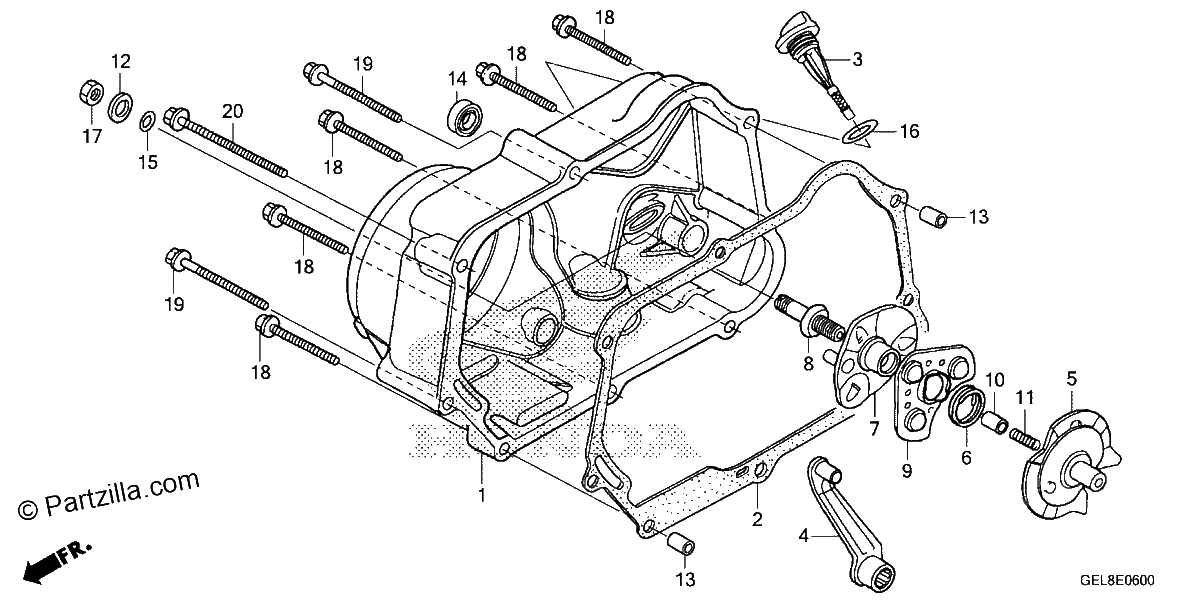

Diagrama de RIGHT CRANKCASE COVER

Repuestos

#001
11330-GEL-A80
COVER, R. CRANKCASE
$179.79¢89 896
1
#002
11394-GW8-681
GASKET, R. CRANKCASE COVER
$14.49¢7 245
1
#002
11394-GW8-682
GASKET, Right CRANKCASE COVER
$14.49¢7 245
1
#003
15651-179-701
DIPSTICK, OIL
$11.70¢5 848
1
#004
22810-GEL-A80
LEVER, CLUTCH
$38.01¢19 004
1
#005
22820-GEL-A80
PLATE, CLUTCH CAM
$22.70¢11 350
1
#006
22825-GEL-A80
SPRING, CAM PLATE SIDE
$3.77¢1 886
1
#007
22830-GEL-A80
PLATE, CLUTCH LIFTER
$18.17¢9 085
1
#008
22846-GEL-A80
BOLT, CLUTCH ADJUSTING
$5.39¢2 697
1
#009
22860-GEL-A80
RETAINER, BALL
$8.64¢4 318
1
#010
25551-GEL-A80
THROUGH, OIL
$6.52¢3 260
1
#011
25555-GEL-A80
SPRING, OIL THROUGH
$2.66¢1 328
1
#012
90485-KVR-C00
WASHER (8MM)
$3.33¢1 667
1
#013
90702-KVR-C00
PIN, DOWEL SPECIAL (8X12)
$5.19¢2 593
1
#014
91202-302-010
OIL SEAL (13.8X24X5)
$5.62¢2 812
1
#014
91202-KFL-841
OIL SEAL (13.8X24X5)
$5.62¢2 812
1
#014
91205-HB2-771
OIL SEAL (13.8X24X5)
$5.62¢2 812
1
#014
91205-HB2-772
OIL SEAL (13.8X24X5)
$5.62¢2 812
1
#015
91303-001-010
O-RING (8MM)
$2.86¢1 432
1
#016
91307-KRM-840
O-RING (18X3)
$0.98¢489
1
#017
94030-08000
NUT, HEX. (8MM)
$1.26¢633
1
#018
96001-06040-00
BOLT, FLANGE (6X40)
$2.56¢1 282
1
#019
96001-06065-00
BOLT, FLANGE (6X65)
$2.77¢1 386
1
#020
96001-06080-00
BOLT, FLANGE (6X80)
$2.62¢1 311
1
