MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

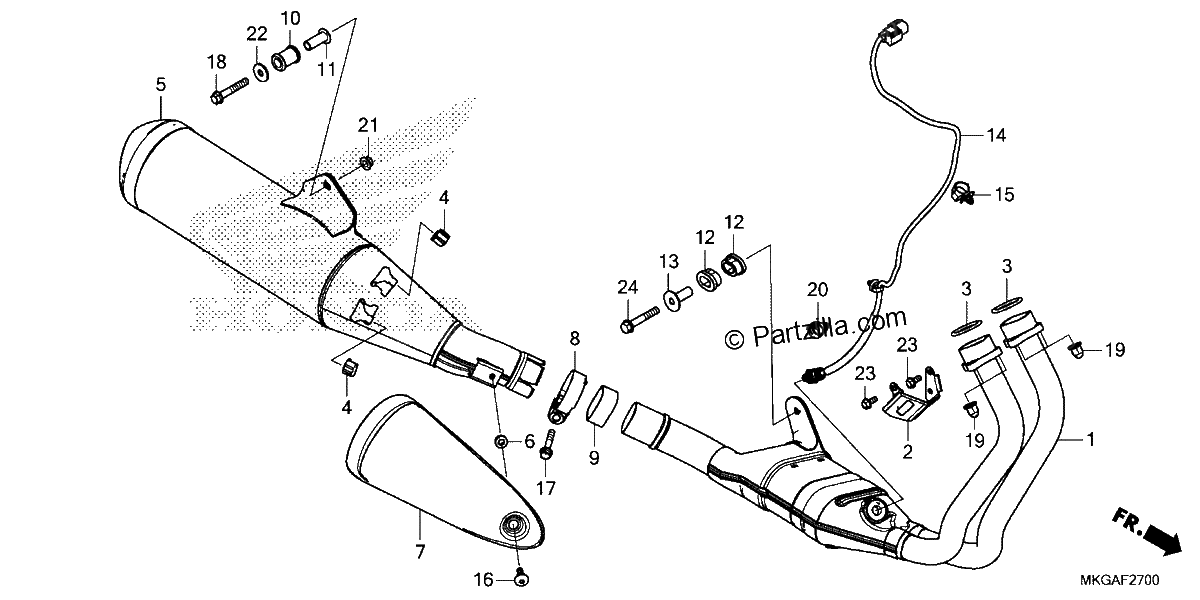

Diagrama de MUFFLER

Repuestos

#001
18150-MKG-A00
PIPE, EX.
$822.42¢411 211
1
#002
18190-MGZ-J40
COVER, SENSOR
$27.39¢13 696
1
#003
18291-MN4-920
GASKET, EX. PIPE
$5.92¢2 961
1
#004
18293-MN0-000
RUBBER, PROTECTOR
$2.53¢1 265
1
#005
18310-MKG-A00
MUFFLER
$453.10¢226 550
1
#006
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.59¢1 294
1
#007
18355-K87-A00
COVER, MUFFLER
$27.85¢13 926
1
#008
18376-MG7-000
BAND, L Rear MUFFLER
$28.96¢14 478
1
#009
18391-MJW-J01
GASKET, MUFFLER
$11.59¢5 796
1
#010
18421-MB0-000
RUBBER, MUFFLER MOUNTING
$7.07¢3 536
1
#011
18422-KAF-700
COLLAR, MUFFLER MOUNTING
$6.60¢3 301
1
#011
18422-MAL-600
COLLAR, MUFFLER MOUNTING
$6.60¢3 301
1
#012
18422-MGZ-J00
RUBBER, EX. PIPE MOUNTING
$9.50¢4 749
1
#013
18423-MGZ-J00
COLLAR, EX PIPE MOUNTING
$5.86¢2 932
1
#014
36531-MKG-A31
SENSOR, OXYGEN
$156.42¢78 212
1
#015
53781-SE0-952
CLIP, RETURN HOSE
$8.97¢4 485
1
#016
90115-K87-A00
SCREW, PAN (6X12)
$1.30¢650
1
#017
90161-MCT-770
BOLT, FLANGE (8X40)
$2.62¢1 311
1
#018
90163-GHB-730
BOLT, FLANGE (8X50)
$0.94¢471
1
#019
90304-KPH-700
NUT, HEX CAP (8MM)
$2.01¢1 006
1
#020
90683-MGC-920
CLIP, HARNESS
$3.69¢1 846
1
#021
94050-08070
NUT, FLANGE (8MM)
$1.77¢886
1
#022
94103-08700
WASHER, PLAIN (8MM)
$1.12¢558
1
#023
95701-06014-07
BOLT, FLANGE (6X14)
$1.63¢816
1
#024
95701-08050-00
BOLT, FLANGE (8X50)
$2.69¢1 346
1
