EXHAUST MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

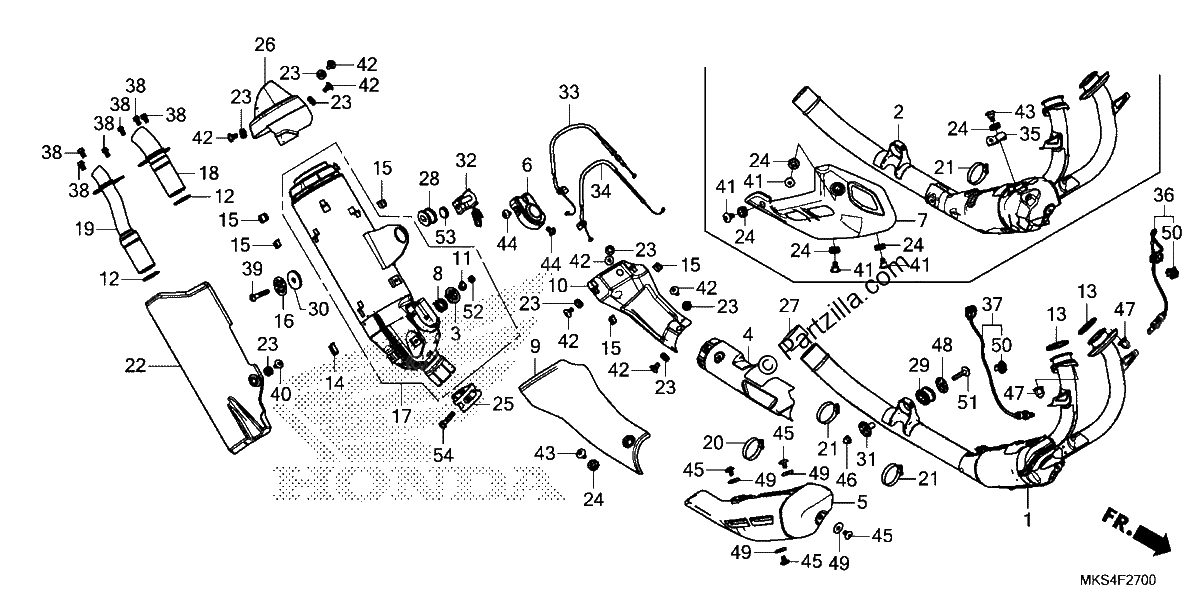

Diagrama de EXHAUST MUFFLER

Repuestos

#002
18100-MKS-AT0
COVER, EX.
$2145.96¢1 072 979
1
#003
18170-MKS-E20
GUIDE, VALVE CABLE
$24.62¢12 311
1
#004
18180-MKS-E20
COVER A, EX. PIPE
$150.41¢75 204
1
#006
18184-MKS-E20
COVER, VALVE GUIDE
$33.71¢16 853
1
#007
18185-MKS-E20
COVER B, EX. PIPE
$200.51¢100 257
1
#008
18186-MKF-D41
SPRING, RETURN
$7.69¢3 847
1
#009
18186-MKS-E20
COVER, EX. (OUTER)
$24.47¢12 236
1
#010
18190-MKS-E20
COVER C, EX. PIPE
$42.66¢21 333
1
#011
18195-MFJ-D00
WASHER B, LOCK
$3.98¢1 989
1
#012
18291-MEB-670
GASKET, EX. PIPE
$5.49¢2 743
1
#013
18291-MM8-880
GASKET, EX PIPE
$7.97¢3 985
1
#014
18293-MJP-G50
RUBBER, PROTECTOR GASKET
$4.24¢2 122
1
#015
18293-MN0-000
RUBBER, PROTECTOR
$2.53¢1 265
1
#016
18309-MJP-G50
WASHER (8.5X43)
$3.86¢1 932
1
#017
18310-MKS-AT0
MUFFLER
$1540.83¢770 414
1
#018
18317-MKS-AT0
ARRESTER A, SPARK
$76.67¢38 335
1
#019
18318-MKS-AT0
ARRESTER B, SPARK
$117.83¢58 914
1
#021
18329-MKS-E20
BAND, EX. PROTECTOR
$19.20¢9 603
1
#022
18340-MKS-E20
COVER, MUFFLER
$228.32¢114 160
1
#023
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.59¢1 294
1
#024
18345-MKS-E20
RUBBER, PROTECTOR MOUNTING
$3.36¢1 679
1
#025
18371-MKS-E20
BAND, MUFFLER
$31.54¢15 772
1
#026
18380-MKS-E20
COVER, TAIL CAP
$82.24¢41 118
1
#027
18391-ML0-003
GASKET, MUFFLER
$31.29¢15 646
1
#028
18421-MJP-G50
RUBBER, MUFFLER MOUNTING
$6.92¢3 461
1
#029
18422-MFJ-D10
RUBBER, EX. PIPE MOUNTING
$21.88¢10 942
1
#030
18422-MJP-G50
WASHER, RUBBER
$4.34¢2 168
1
#031
18423-MGC-N20
COLLAR, EX. PIPE MOUNTING
$7.56¢3 778
1
#032
18423-MKS-E20
COLLAR, MUFFLER MOUNTING
$33.41¢16 704
1
#033
18910-MKS-E20
CABLE A, EX. VALVE
$80.86¢40 428
1
#034
18920-MKS-E20
CABLE B, EX. VALVE
$56.32¢28 158
1
#035
18950-MKS-E20
STAY B, COVER
$17.96¢8 981
1
#036
36533-MKS-E01
SENSOR, R. AIR FUEL RATIO
$267.33¢133 665
1
#036
36534-MKS-E01
SENSOR, L. AIR FUEL RATIO
$267.33¢133 665
1
#037
36533-MKS-E01
SENSOR, R. AIR FUEL RATIO
$267.33¢133 665
1
#037
36534-MKS-E01
SENSOR, L. AIR FUEL RATIO
$267.33¢133 665
1
#038
96001-06010-07
BOLT, FLANGE (6X10)
$1.92¢960
1
#038
90101-KCE-000
BOLT, FLANGE (6X10)
$1.92¢960
1
#039
90109-MBT-611
BOLT, SOCKET (8X45)
$4.48¢2 242
1
#040
90113-GFP-B00
SCREW, PAN (6X12)
$3.99¢1 995
1
#041
90113-MKS-E20
SCREW, PAN (6X14)
$2.60¢1 299
1
#042
90114-MKS-E20
SCREW, PAN (6X12)
$2.42¢1 208
1
#043
90115-MKS-E20
SCREW, PAN (6X14)
$2.60¢1 299
1
#044
90116-MKS-E20
BOLT, SPECIAL (5X8)
$4.81¢2 403
1
#046
90301-MKS-E20
NUT, FLANGE CAP (8MM)
$3.79¢1 897
1
#047
90304-ME1-670
NUT, CAP (8MM)
$6.64¢3 318
1
#048
90501-MGC-N20
WASHER (8.5X38)
$3.84¢1 920
1
#050
91542-SNA-003
CLIP, HARNESS BAND (164.5MM) (DARK BLUE)
$0.64¢322
1
#051
93404-08040-04
BOLT-WASHER (8X40)
$1.33¢667
1
#052
94001-06020-0S
NUT, HEX. (6MM)
$1.62¢811
1
#053
95011-63000
RUBBER C, STAND STOPPER
$4.36¢2 179
1
#054
96400-08035-04
BOLT, FLANGE (8X35)
$0.76¢380
1
