REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

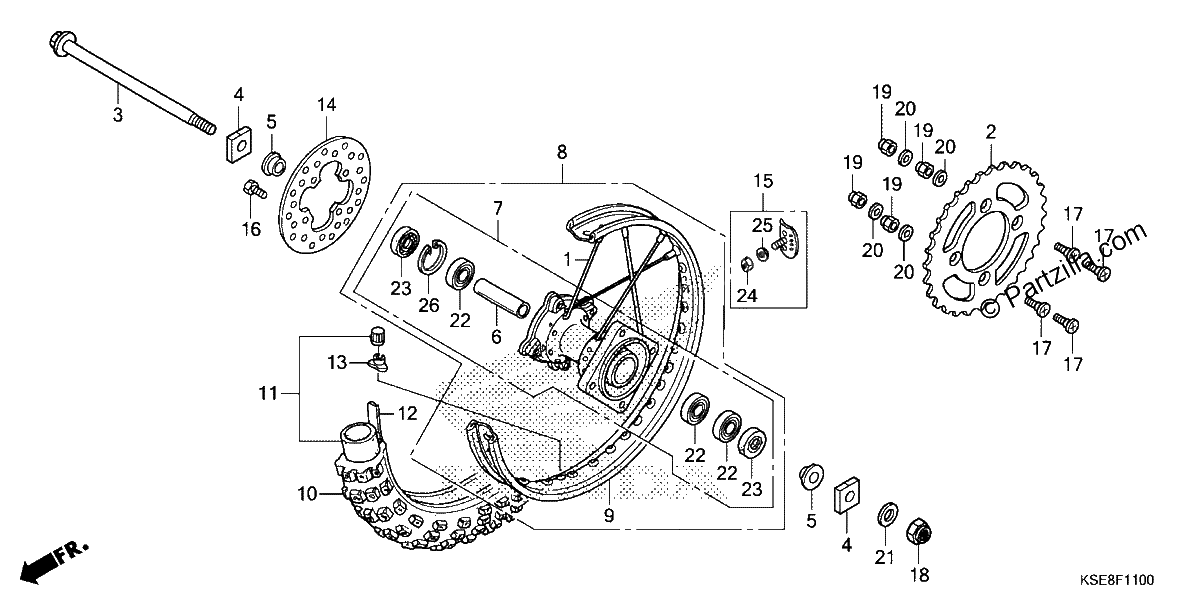

Diagrama de REAR WHEEL

Repuestos

#001
06420-KSE-670
SPOKE SET, RR.
$3.62¢1 811
1
#002
41201-GBF-830
SPROCKET, FINAL (49T) (SUNSTAR)
$131.01¢65 504
1
#002
41201-GBF-K00
SPROCKET, FINAL (50T) (SUNSTAR)
$131.01¢65 504
1
#002
41201-KSE-670
SPROCKET, FINAL DRIVEN (50T)
$64.10¢32 051
1
#002
41203-GBF-830
SPROCKET, FINAL (51T) (SUNSTAR)
$134.91¢67 453
1
#003
42301-KSE-000
AXLE, RR. WHEEL
$29.44¢14 720
1
#004
42305-KSE-000
COLLAR, RR. AXLE
$19.15¢9 574
1
#005
42311-KSE-000
COLLAR, RR. WHEEL SIDE
$16.99¢8 493
1
#006
42620-KSE-000
COLLAR, RR. WHEEL DISTANCE
$10.22¢5 112
1
#007
42635-KSE-670
HUB SUB-ASSY., RR.
$253.66¢126 828
1
#008
42650-KSE-670
WHEEL SUB-ASSY., RR.
$593.48¢296 740
1
#009
42701-KSE-671
RIM, RR. WHEEL
$235.40¢117 702
1
#010
42711-KSE-F11
TIRE, RR. (90/100-14 49M) (DUNLOP)
$110.74¢55 372
1
#010
42711-KSE-F12
TIRE, Rear. (90/100-14 49M) (DUNLOP)
$110.74¢55 372
1
#011
42712-GS2-701
TUBE, TIRE (90/100-14) (DUNLOP)
$35.27¢17 635
1
#012
42713-GS2-701
FLAP, TIRE (1.60X14) (DUNLOP)
$9.44¢4 721
1
#013
42714-KA3-710
CAP, VALVE
$11.18¢5 589
1
#014
43351-KSE-000
DISK, RR. BRAKE
$191.22¢95 611
1
#015
44715-MA0-770
STOPPER, BEAD (1.60)
$39.30¢19 648
1
#016
90105-KAE-870
BOLT, DISK (6X17)
$3.36¢1 679
1
#017
90125-KA4-000
SCREW, FLAT (8X31)
$3.44¢1 719
1
#018
90305-GW2-711
NUT, U (16MM)
$17.49¢8 746
1
#019
90309-ML3-791
NUT, U (8MM) (FUSE RASHI)
$4.86¢2 432
1
#020
90465-MC4-000
WASHER (8MM)
$2.98¢1 489
1
#021
90501-GBM-750
WASHER (16MM)
$1.21¢604
1
#022
91051-KSE-003
BEARING, RADIAL BALL (6003)
$12.87¢6 434
1
#023
91205-VM6-003
DUST SEAL (23X35X7)
$10.32¢5 158
1
#024
94001-08000-0S
NUT, HEX. (8MM)
$1.54¢771
1
#025
94111-08000
WASHER, SPRING (8MM)
$1.12¢558
1
#026
94520-35000
CIRCLIP, INNER (35MM)
$2.30¢1 150
1
