SADDLEBAG

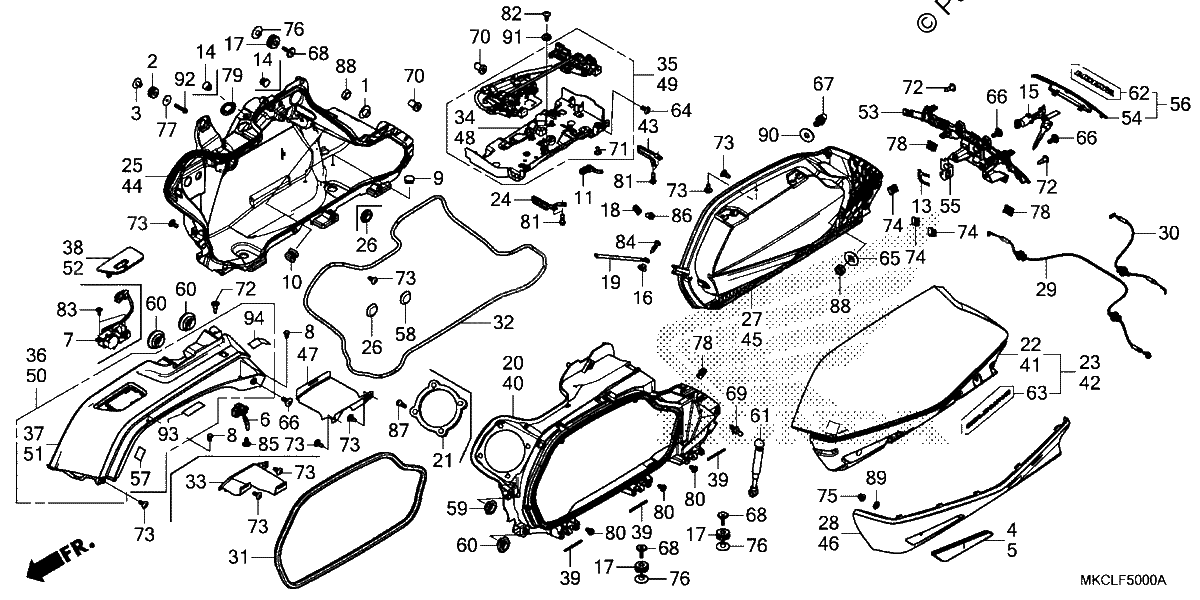

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
COLLAR (8MM)
$6.66¢3 329
#002
RUBBER, RADIATOR MOUNTING
$5.63¢2 818
#003
COLLAR, RADIATOR MOUNTING
$7.72¢3 858
#004
REFLECTOR, Right Rear REFLEX
$64.22¢32 108
#005
REFLECTOR, L Rear REFLEX
$64.89¢32 447
#006
SWITCH ASSY., LID OPENER
$57.05¢28 526
#007
SWITCH ASSY., PASSENGER
$107.29¢53 647
#008
PLUG, HEAD PIPE
$2.42¢1 208
#009
PLUG, HOLE
$2.66¢1 328
#010
PLUG, HOLE
$2.50¢1 248
#011
LEVER, HOT STARTER
$18.11¢9 056
#012
TAPE, COVER
$1.91¢954
#013
SPRING, LOCK KEY SETTING
$5.35¢2 674
#014
RUBBER, SEAT SIDE
$5.51¢2 754
#015
KEY, EMERGENCY
No Disponible
#016
COLLAR, FENDER SETTING
$3.06¢1 529
#017
RUBBER, SADDLEBAG MOUNTING
$16.81¢8 407
#018
STAY B, LID STOPPER
$5.83¢2 915
#019
CABLE, SADDLEBAG STOPPER
$16.65¢8 326
#020
BODY, R. SADDLEBAG
$860.82¢430 410
#022
LID, R. SADDLEBAG (TYPE1)
$918.85¢459 425
#024
ROD A, SADDLEBAG STRIKER
$18.17¢9 085
#025
PANEL, R. SADDLEBAG
$283.13¢141 565
#026
PLUG, BLIND (20MM)
$6.19¢3 093
#027
INNER LID, R. SADDLEBAG
$277.45¢138 724
#028
COVER, R. SADDLEBAG LID *NH1*(BLACK)
$76.79¢38 393
#029
CABLE, R. SADDLEBAG EMERGENCY
$26.79¢13 397
#030
CABLE, L. SADDLEBAG EMERGENCY
$18.17¢9 085
#031
RUBBER, SADDLEBAG LID SEAL
$57.63¢28 813
#032
RUBBER, BACK PANEL SEAL
$26.81¢13 403
#033
GUARD, R. SADDLEBAG HEAT
$21.82¢10 908
#034
COVER, R. SADDLEBAG CATCH (NOT AVAILABLE)
No Disponible
#035
CATCH ASSY., R. SADDLEBAG
$364.85¢182 425
#037
COVER, R. SADDLEBAG (UPPER) (TYPE5)
$264.29¢132 146
#038
COVER, R. SADDLEBAG SWITCH
$30.37¢15 186
#039
PIN, SADDLEBAG HINGE
$5.09¢2 547
#040
BODY, L. SADDLEBAG
$860.82¢430 410
#041
LID, L. SADDLEBAG (TYPE1)
$918.85¢459 425
#043
ROD B, SADDLEBAG STRIKER
$18.17¢9 085
#044
PANEL, L. SADDLEBAG
$283.13¢141 565
#045
INNER LID, L. SADDLEBAG
$277.45¢138 724
#046
COVER, L. SADDLEBAG LID *NH1*(BLACK)
$53.16¢26 582
#047
GUARD, L. SADDLEBAG HEAT
$18.17¢9 085
#048
COVER, L. SADDLEBAG CATCH (NOT AVAILABLE)
No Disponible
#049
CATCH ASSY., L. SADDLEBAG
$364.85¢182 425
#051
COVER, L. SADDLEBAG (UPPER) (TYPE5)
$264.29¢132 146
#052
COVER, L. SADDLEBAG SWITCH
$30.37¢15 186
#053
COWL, RR. CENTER SADDLEBAG
$57.42¢28 710
#054
COVER, RR. CENTER SADDLEBAG
$18.75¢9 373
#055
STAY, EMERGENCY CABLE
$9.07¢4 537
#057
TAPE D, PROTECTION
No Disponible
#057
TAPE D, PROTECTION
$2.53¢1 265
#058
GROMMET, DRAIN HOLE (25MM)
$4.98¢2 490
#059
GROMMET, RR. COVER
$3.36¢1 679
#060
GROMMET, AIR CLEANER HOUSING
$6.27¢3 134
#061
DAMPER, SADDLEBAG LID
$63.17¢31 585
#064
SCREW, SPECIAL (5X16)
$4.99¢2 496
#065
COLLAR A, FENDER SETTING
$2.12¢1 058
#066
SCREW, SPECIAL (5X14)
$3.52¢1 759
#067
STUD, BALL
$6.88¢3 439
#068
SCREW, SPECIAL (6MM)
$4.43¢2 214
#069
STUD, BALL
$18.17¢9 085
#070
NUT, WELL (5MM)
$3.78¢1 892
#071
SCREW (5X12)
$2.66¢1 328
#072
CLIP, BUMPER SEAL
$5.27¢2 633
#073
SCREW, TAPPING (5X12)
$2.66¢1 328
#074
NUT, SPRING (5MM)
$3.36¢1 679
#075
NUT, FLANGE (5MM) (FUSE RASHI)
$5.52¢2 760
#076
COLLAR, SADDLEBAG MOUNTING
$5.63¢2 818
#077
WASHER, FENDER MOUNTING
$3.36¢1 679
#078
NUT, CLIP (5MM)
$4.54¢2 271
#079
GROMMET (30MM)
$0.70¢351
#080
SCREW, TAPPING (4X8)
$0.85¢426
#081
SCREW, TAPPING (5X16)
$1.07¢535
#082
SCREW, TAPPING (4X10)
$1.07¢535
#083
SCREW, TAPPING (4X10)
$1.60¢799
#084
SCREW, TAPPING (5X20)
$0.77¢385
#085
SCREW, TAPPING (3X8)
$0.77¢385
#086
SCREW, TAPPING (4X16)
$1.07¢535
#088
NUT, HEX. (8MM)
$1.54¢771
#089
WASHER, PLAIN (5MM)
$1.17¢586
#090
WASHER, PLAIN (8MM)
$0.98¢489
#091
WASHER, PLAIN (4MM)
$1.17¢586
#092
BOLT, FLANGE (6X32)
$1.66¢828
#093
TAPE E, PROTECTION
$3.79¢1 897
#094
TAPE F, PROTECTION
$4.48¢2 242
