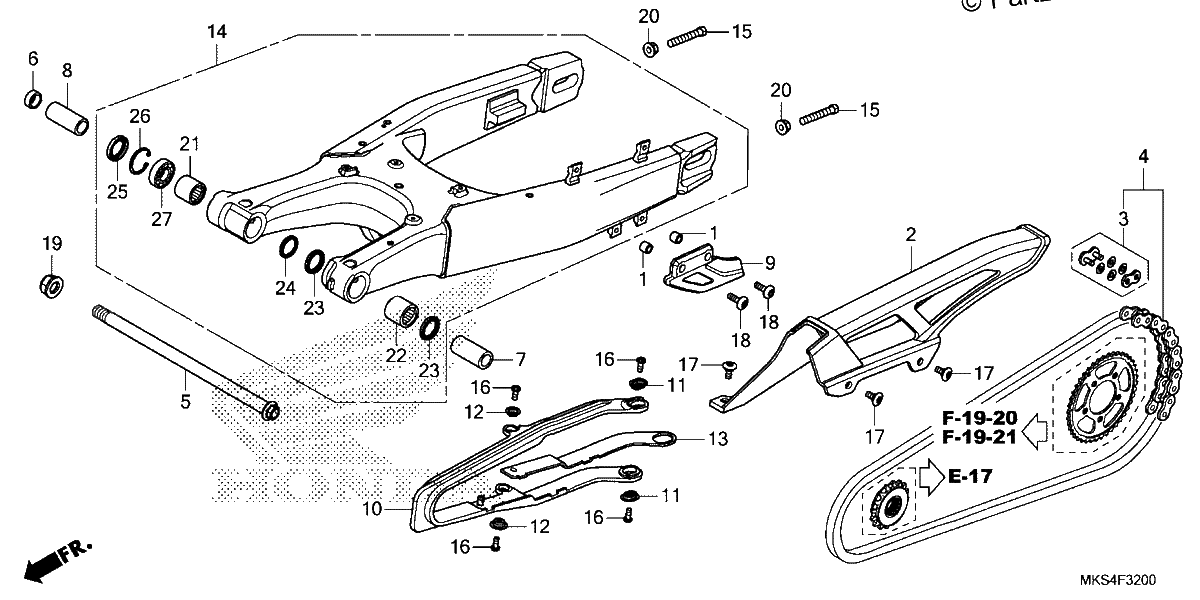

SWINGARM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
COLLAR, DISTANCE
No Disponible
#002
CASE, DRIVE CHAIN
$107.71¢53 854
#003
MASTER LINK SET (DAIDO)
$15.75¢7 877
#004
CHAIN, DRIVE (DID525HV3-130ZB)(DAIDO) (STANDARD LINK 124L)
$233.61¢116 805
#005
BOLT, SWINGARM PIVOT
$64.11¢32 056
#006
COLLAR A, PIVOT
$6.14¢3 070
#007
COLLAR, L. PIVOT DISTANCE
$20.31¢10 154
#008
COLLAR, R. PIVOT DISTANCE
$19.76¢9 878
#009
GUARD, CHAIN
$23.29¢11 644
#010
SLIDER, CHAIN
$64.42¢32 212
#011
WASHER, CHAIN SLIDER
$3.06¢1 529
#012
WASHER, CHAIN SLIDER
$3.81¢1 903
#013
RUBBER, CHAIN SLIDER
$13.24¢6 618
#014
SWINGARM SUB-ASSY., RR. (TYPE1)
$1770.02¢885 011
#015
BOLT, HEX. (8X50)
$2.86¢1 432
#016
SCREW, PAN (5X12)
$2.22¢1 110
#017
SCREW, SPECIAL (6X14)
$3.21¢1 604
#018
BOLT, SPECIAL (6X20)
$3.04¢1 518
#019
NUT, SPECIAL U (16MM)
$9.97¢4 985
#019
NUT, U (16MM)
$9.97¢4 985
#020
NUT, HEX. (8MM)
$3.79¢1 897
#021
BEARING, NEEDLE (24X31X28)
$18.23¢9 114
#022
BEARING, NEEDLE (NTN)
$28.69¢14 346
#023
DUST SEAL (25X33X4)
$7.76¢3 881
#024
OIL SEAL (24X31X3.5)
$11.24¢5 618
#025
DUST SEAL (23X35X5)
$9.73¢4 865
#026
CIRCLIP, INNER (35MM)
$2.30¢1 150
#027
BEARING, RADIAL BALL (6003)
$15.12¢7 561
