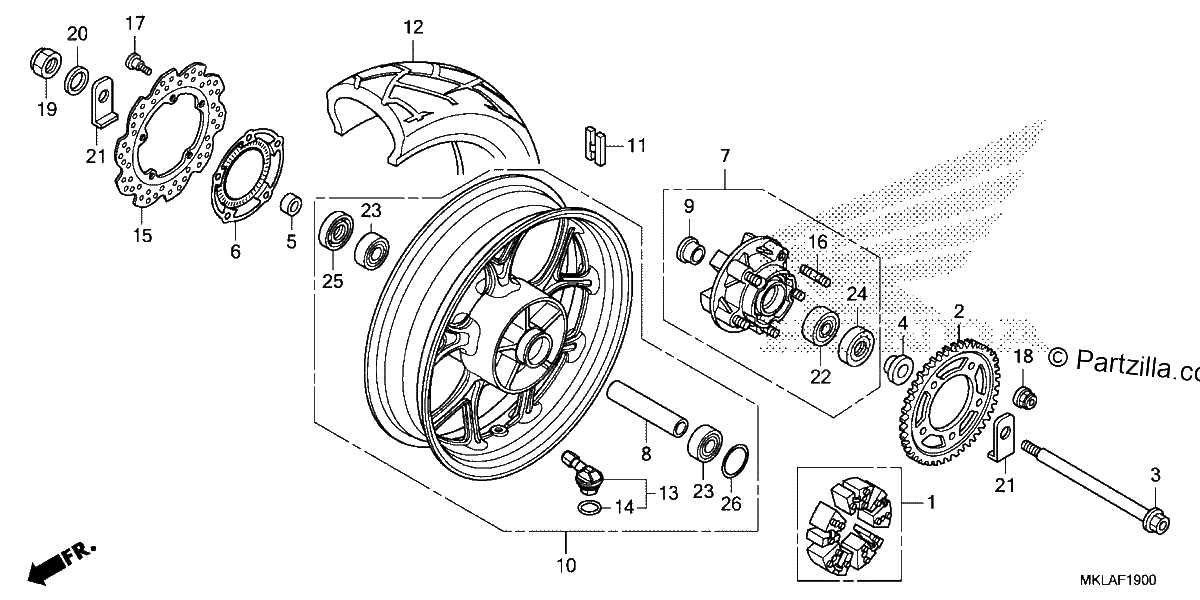

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
DAMPER SET, WHEEL
$61.81¢30 906
#002
SPROCKET, FINAL DRIVEN (39T)
$92.03¢46 017
#003
AXLE, Rear WHEEL
$56.33¢28 163
#004
COLLAR, L. RR. WHEEL SIDE
$25.13¢12 564
#005
COLLAR, RR. BRAKE SIDE
$16.69¢8 343
#006
RING, Rear PULSER
$74.62¢37 312
#007
FLANGE SUB-Assembly., Rear DRIVEN
$307.82¢153 910
#008
COLLAR, RR. AXLE DISTANCE
$30.14¢15 071
#009
COLLAR B, RR. WHEEL DISTANCE
$20.80¢10 402
#010
WHEEL SUB-ASSY., RR. (TYPE1)
$1061.33¢530 667
#011
WEIGHT, BALANCE (10G)
$10.04¢5 020
#011
WEIGHT, BALANCE (20G)
$20.62¢10 310
#011
WEIGHT, BALANCE (30G)
$20.32¢10 160
#012
TIRE, RR. (160/60ZR17 M/C 69W) (BS)
$246.88¢123 441
#012
TIRE, Rear. (160/60ZR17 M/C 69W)(DUNLOP)
$230.82¢115 408
#012
TIRE, RR. (160/60ZR17 M/C 69W) (DUNLOP)
No Disponible
#013
VALVE ASSY., CLAMP IN
$17.71¢8 855
#014
O-RING
$1.81¢903
#015
DISK, RR. BRAKE (SUNSTAR)
$402.89¢201 445
#016
BOLT, STUD (12X25)
$4.47¢2 237
#017
BOLT, BRAKE DISK (8X24)
$6.92¢3 461
#017
BOLT, BRAKE DISK (8X24) (TSUKIBOSHI)
$6.92¢3 461
#018
NUT, FLANGE (12MM) (FUSE RASHI)
$4.30¢2 151
#019
NUT, U (18MM)
$7.60¢3 801
#020
WASHER (20X31.5X2)
$3.58¢1 788
#021
WASHER, RR. SWINGARM
$4.68¢2 340
#022
BEARING, ANGULAR BALL (22X50X15)
$40.69¢20 344
#023
BEARING, RADIAL BALL (6204UU)
$13.90¢6 952
#024
DUST SEAL (30X50X7)
$13.73¢6 865
#025
DUST SEAL (30X47X7.5)
$17.03¢8 516
#026
O-RING (55X2)
$3.36¢1 679
