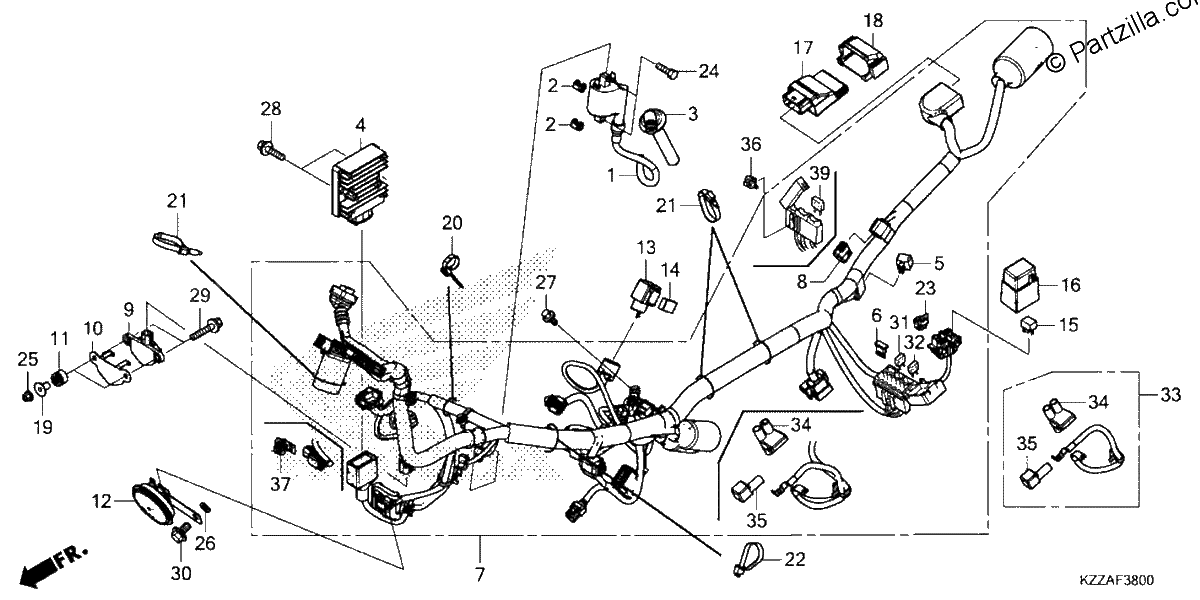

WIRE HARNESS 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
COIL, IGNITION
$41.39¢20 694
#002
SPACER, IGNITION COIL
$3.36¢1 681
#003
CAP ASSY., NOISE SUPPRESSOR
$44.96¢22 481
#004
RECTIFIER Assembly., REGULATOR
$292.02¢146 013
#005
RECTIFIER, SILICON
$30.66¢15 331
#006
DIODE ASSY., THREE WAY (SUMITOMO)
$12.64¢6 319
#007
WIRE HARNESS
$635.39¢317 694
#008
CAP, DUMMY (4P) (RED)
$5.83¢2 913
#009
SENSOR ASSY., BANK ANGLE (M6)
$139.65¢69 825
#010
STAY, BANK ANGLE SENSOR
$3.33¢1 663
#011
RUBBER, SPEEDOMETER MOUNTING
$6.20¢3 100
#012
HORN (HIGH)
$35.70¢17 850
#013
RELAY, TURN SIGNAL (MITSUBA)
$96.76¢48 381
#014
SUSPENSION, TURN SIGNAL RELAY (MITSUBA)
$3.65¢1 825
#015
RELAY, POWER (MICRO ISO 4P) (OMRON)
$7.43¢3 713
#016
COVER, RELAY (2P)
$4.65¢2 325
#017
PGM-FI UNIT
$230.61¢115 306
#018
CUSHION, PGM-FI UNIT
$1.95¢975
#019
COLLAR, PILLION SEAT
$5.55¢2 775
#020
BAND, WIRE
$5.42¢2 713
#021
BAND, WIRE (165MM) (BLACK)
$3.65¢1 825
#022
BAND, WIRE HARNESS
$4.51¢2 256
#023
CLIP, CONNECTOR (DARK GREEN)
$4.68¢2 338
#024
BOLT, HEX. (6X20)
$1.79¢894
#025
NUT, FLANGE (6MM)
$0.80¢400
#026
WASHER, PLAIN (8MM)
$1.15¢575
#027
BOLT, FLANGE (6X12)
$2.09¢1 044
#028
BOLT, FLANGE (6X22)
$2.31¢1 156
#029
BOLT, FLANGE (6X30)
$2.41¢1 206
#030
BOLT, FLANGE (8X14)
$1.68¢838
#031
FUSE, MINI (5A)
$1.49¢744
#032
FUSE, MINI (10A)
$1.70¢850
#033
CABLE, STARTER MAGNETIC BATTERY
$31.95¢15 975
#034
COVER, STARTER MAGNETIC TERMINAL
$39.81¢19 906
#035
COVER, BATTERY TERMINAL
$5.04¢2 519
