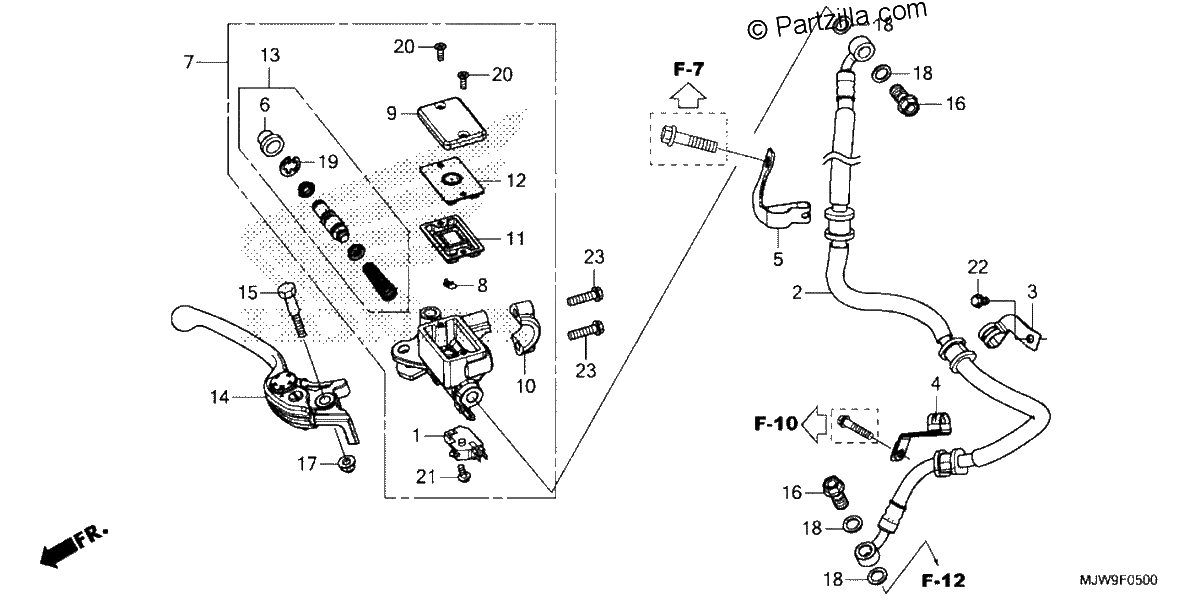

FRONT BRAKE MASTER CYLINDER 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH Assembly., Front STOP (ALPS)
$19.77¢9 884
#002
HOSE, FR. BRAKE
$26.54¢13 271
#003
CLAMP A, Front BRAKE HOSE
$2.69¢1 346
#004
CLAMP B, Front BRAKE HOSE
$3.45¢1 725
#005
CLAMP C, Front BRAKE HOSE
$4.24¢2 122
#006
BOOT
$13.10¢6 549
#007
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)
$144.55¢72 277
#008
PROTECTOR
$4.78¢2 392
#009
CAP, MASTER CYLINDER (COO)
$4.63¢2 317
#009
CAP, MASTER CYLINDER
$4.63¢2 317
#010
HOLDER, MASTER CYLINDER
$14.48¢7 239
#011
DIAPHRAGM
$10.00¢5 002
#012
PLATE, DIAPHRAGM
$2.69¢1 346
#013
MASTER CYLINDER SET
$42.69¢21 344
#014
LEVER ASSY., R. HANDLE (COO)
$98.61¢49 306
#015
BOLT, HANDLE LEVER PIVOT
$7.24¢3 622
#016
BOLT, OIL (10X22)
$8.18¢4 088
#017
NUT, CAP (6MM)
$3.36¢1 679
#018
WASHER, OIL BOLT
$4.46¢2 231
#019
CIRCLIP
$2.85¢1 426
#020
SCREW, FLAT (4X12)
$1.07¢535
#020
SCREW, FLAT (4X12)
$1.07¢535
#021
SCREW-WASHER (4X12)
$1.59¢793
#021
SCREW-WASHER (4X12)
$1.59¢793
#022
BOLT, FLANGE (6X10)
$1.92¢960
#023
BOLT, FLANGE (6X22)
$2.18¢1 092
