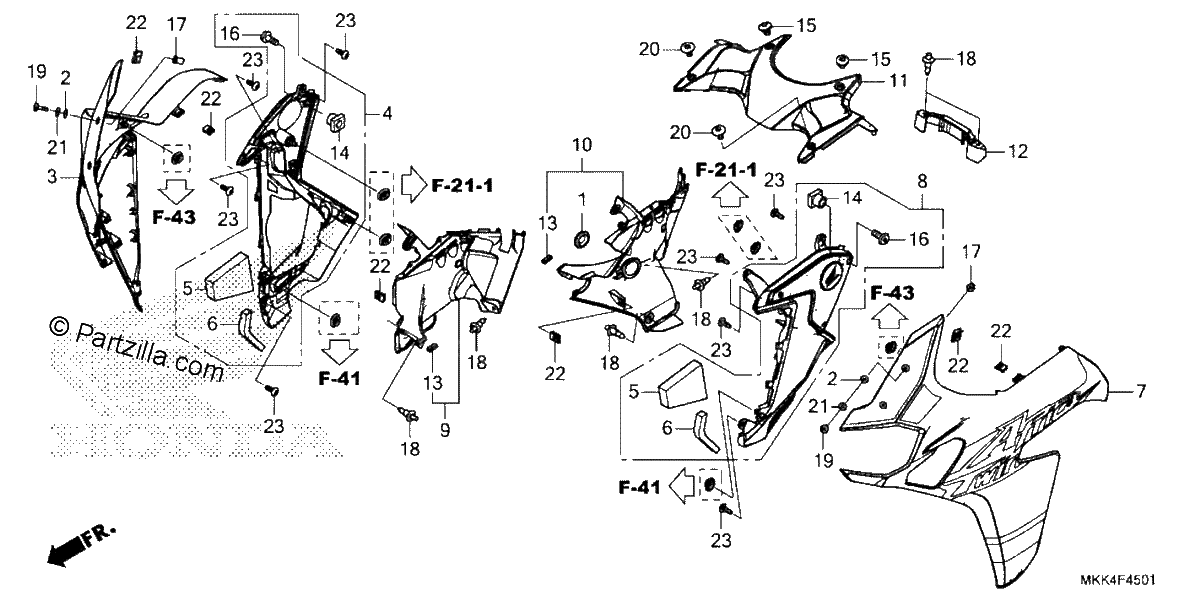

MIDDLE COWL 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
GROMMET, AUDIO BOX
$7.64¢3 818
#002
WASHER, SCREEN SETTING
$2.62¢1 311
#003
COWL SET, R. MIDDLE (TYPE1) (WL)
$580.45¢290 226
#004
COVER SET, R. FR. SIDE (WL)
$161.11¢80 557
#005
MAT A, FR. SIDE COWL
$6.35¢3 174
#006
MAT B, FR. SIDE COWL
$3.27¢1 633
#007
COWL SET, L. MIDDLE (TYPE1) (WL)
$580.45¢290 226
#008
COVER SET, L. FR. SIDE (WL)
$161.11¢80 557
#009
COVER, Right. (INNER)
$21.14¢10 568
#010
COVER, L. (INNER)
$21.14¢10 568
#011
COVER, FR. TANK
$26.69¢13 346
#012
COVER, RR. TANK
$13.97¢6 986
#013
PROTECTOR, RUBBER
$2.06¢1 029
#014
NUT, SPECIAL (5MM) (NOT AVAILABLE)
$4.24¢2 122
#015
BOLT, SPECIAL (6X8)
$3.36¢1 679
#016
BOLT, SPECIAL (5X8)
$2.59¢1 294
#017
NUT, COWL SETTING (5MM)
$5.04¢2 519
#018
CLIP, BUMPER SEAL
$5.27¢2 633
#019
SCREW, PAN (5X20) (SUS)
$2.75¢1 374
#020
SCREW, SPECIAL (5X11)
$2.94¢1 472
#021
WASHER, THRUST (5MM)
$2.24¢1 121
#022
NUT, CLIP (5MM)
$4.54¢2 271
#023
SCREW, TAPPING (4X12)
$1.07¢535
