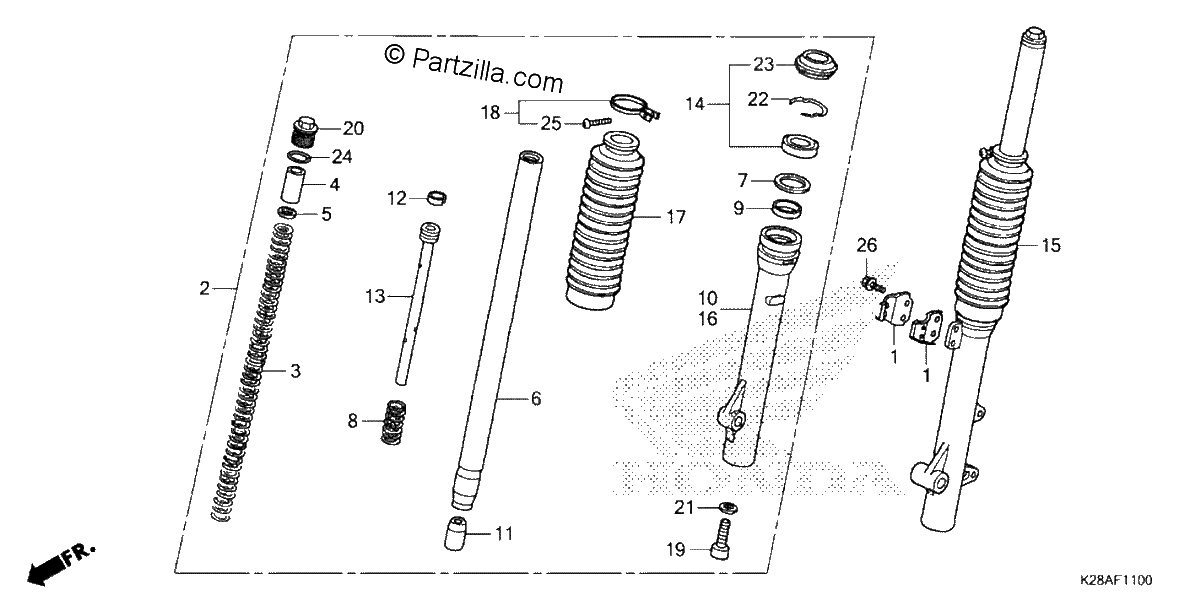

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CLAMP A, BRAKE HOSE
$8.26¢4 131
#002
FORK ASSY., R. FR. (COO)
$729.29¢364 644
#003
SPRING, FR. FORK
$62.98¢31 488
#004
COLLAR, SPRING
$13.55¢6 775
#005
PLATE, SPRING
$4.75¢2 375
#006
PIPE, FR. FORK
$331.23¢165 613
#007
WASHER, OIL SEAL (CHUANNAN ABSORBER)
$6.74¢3 369
#008
SPRING, REBOUND
$12.52¢6 262
#009
GUIDE, FR. FORK (CHUANNAN ABSORBER)
$11.15¢5 575
#010
CASE, R. (LOWER)
$306.66¢153 331
#011
PIECE, OIL LOCK
$13.66¢6 831
#012
RING, PISTON
$7.89¢3 944
#013
PIPE, SEAT
$40.23¢20 113
#014
SEAL SET, FR. FORK
$23.08¢11 538
#015
FORK ASSY., L. FR. (COO)
$729.29¢364 644
#016
CASE, L. (LOWER)
$293.34¢146 669
#017
BOOT, FR. FORK
$60.82¢30 412
#018
BAND, FR. FORK BOOT (CHUANNAN ABSORBER)
$13.71¢6 856
#019
BOLT, SOCKET (8X30) (CHUANNAN ABSORBER)
$4.45¢2 225
#020
BOLT, FR. FORK
$21.15¢10 575
#021
WASHER, SPECIAL (8MM) (CHUANNAN ABSORBER)
$2.52¢1 263
#022
RING, OIL SEAL STOPPER (CHUANNAN ABSORBER)
$1.31¢656
#023
DUST SEAL
$11.76¢5 881
#024
O-RING (22X2.8) (CHUANNAN ABSORBER)
$3.65¢1 825
#025
SCREW, PAN (3X20)
$0.96¢481
#026
BOLT, FLANGE (6X16)
$1.35¢675
