CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

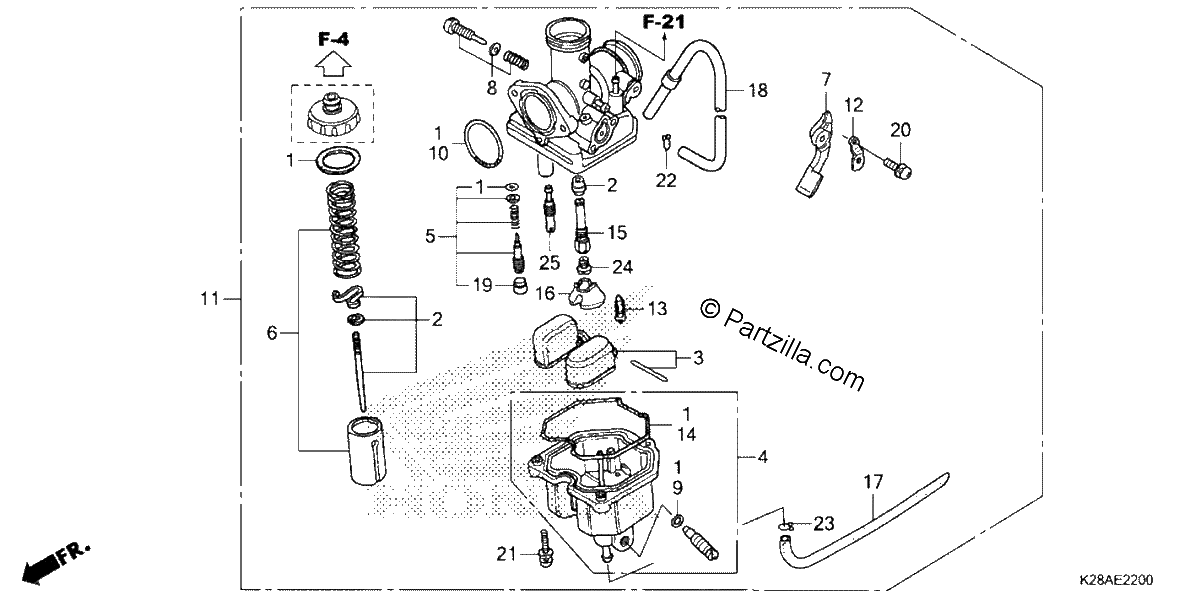

Diagrama de CARBURETOR

Repuestos

#001
16010-KCH-780
GASKET SET
$38.03¢19 013
1
#002
16012-K28-913
NEEDLE SET, JET
$49.20¢24 600
1
#003
16013-KEH-900
FLOAT SET
$65.58¢32 788
1
#004
16015-KN4-A10
CHAMBER SET, FLOAT
$125.57¢62 787
1
#005
16016-K28-911
SCREW SET
$30.47¢15 237
1
#006
16022-K28-911
VALVE SET, THROTTLE
$58.40¢29 200
1
#007
16025-KRF-B41
LEVER SET, CHOKE
$41.45¢20 725
1
#008
16028-KEB-G01
SCREW SET B
$13.95¢6 975
1
#008
16028-KEH-900
SCREW SET B
$13.95¢6 975
1
#009
16075-GHB-640
O-RING (1.3X4.3)
$3.65¢1 825
1
#010
16075-GHB-B70
O-RING (2.4X29)
$9.47¢4 738
1
#011
16100-K28-913
CARBURETOR ASSY. (PDB4B A)
$344.77¢172 388
1
#012
16119-KRF-B41
PLATE, SETTING
$11.41¢5 706
1
#013
16155-KFR-701
VALVE, FLOAT
$31.63¢15 813
1
#014
16163-KCS-920
GASKET, FLOAT CHAMBER
$13.83¢6 913
1
#015
16165-K28-911
HOLDER, NEEDLE JET
$34.61¢17 306
1
#016
16168-382-014
HOLDER, JET
$10.46¢5 231
1
#017
16198-K28-911
TUBE
$11.19¢5 594
1
#018
16199-K28-913
TUBE
$7.24¢3 619
1
#019
16312-KYK-911
CAP, ADJUSTING SCREW
$3.49¢1 744
1
#020
93892-04010-08
SCREW-WASHER (4X10)
$1.47¢737
1
#020
93892-04010-18
SCREW-WASHER (4X10)
$1.47¢737
1
#021
93892-04016-08
SCREW-WASHER (4X16)
$0.94¢469
1
#022
95002-02089
CLIP, TUBE (B1 8)
$1.34¢669
1
#023
95002-02659
CLIP, TUBE (B6.5)
$1.41¢706
1
#024
99101-GHB-1120
JET, MAIN (#112)
$9.68¢4 838
1
#025
99103-KPT-0380
JET (#38X#38)
$13.97¢6 988
1
