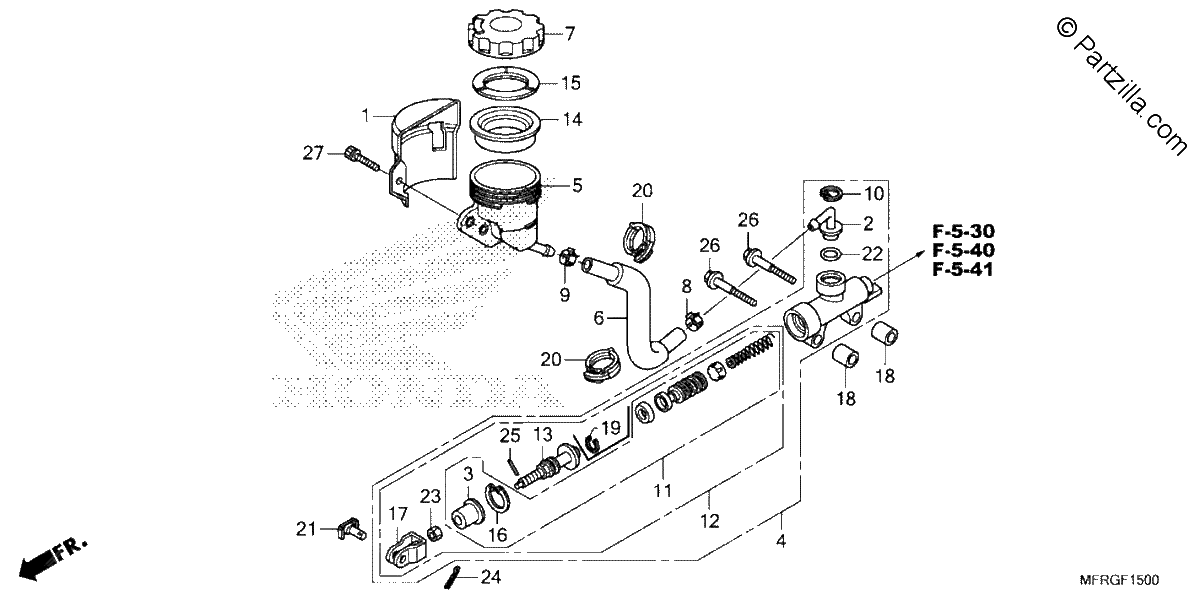

REAR BRAKE MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
COVER, RR. BRAKE OIL CUP
$20.35¢10 175
#002
CONNECTOR, MASTER CYLINDER
$11.65¢5 825
#003
BOOT
$11.74¢5 869
#004
MASTER CYLINDER SUB-ASSY., RR. (COO) (NISSIN)
$300.09¢150 044
#004
MASTER CYLINDER SUB-ASSY., RR. (NISSIN)
$300.09¢150 044
#005
CUP, MASTER CYLINDER OIL
$47.05¢23 525
#006
HOSE, RR. MASTER CYLINDER
$14.30¢7 150
#007
CAP, OIL CUP
$34.38¢17 188
#008
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
#009
CLAMP, MASTER CYLINDER OIL HOSE
$19.68¢9 838
#010
CIRCLIP, Rear MASTER CYLINDER
$4.63¢2 313
#012
PISTON SET, RR. MASTER CYLINDER
$41.57¢20 787
#013
ROD, PUSH
$17.50¢8 750
#014
DIAPHRAGM
$10.59¢5 294
#015
PLATE, DIAPHRAGM
$4.91¢2 456
#016
CIRCLIP
$2.50¢1 250
#017
JOINT, BRAKE ROD
$18.40¢9 200
#018
COLLAR, RR. BRAKE BRACKET
$4.81¢2 406
#019
CIRCLIP, PISTON
$3.66¢1 831
#020
CLIP, WIRE HARNESS
$4.33¢2 163
#021
PIN, JOINT
$4.20¢2 100
#022
O-RING (14.8X2.4)
$3.30¢1 650
#023
NUT, HEX. (8MM)
$1.60¢800
#024
PIN, SPLIT (2.0X15)
$1.34¢669
#025
PIN, SPRING (2X10)
$1.13¢563
#026
BOLT, FLANGE (6X35)
$2.41¢1 206
#027
BOLT, SOCKET (6X16)
$2.24¢1 119
