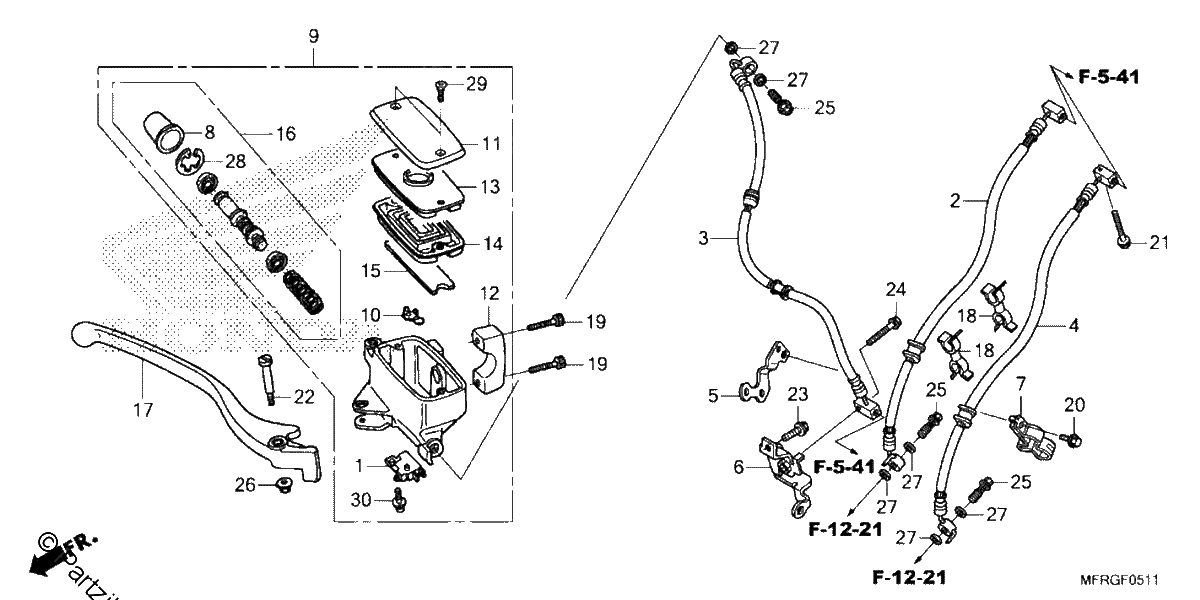

FRONT BRAKE MASTER CYLINDER 3
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH ASSY., FR. STOP
$16.70¢8 350
#002
HOSE C, SUB-BRAKE
$77.05¢38 525
#003
HOSE A, FR. BRAKE
$73.14¢36 569
#004
HOSE F, FR. BRAKE
$67.25¢33 625
#005
BRACKET, L. FR. BRAKE HOSE
$5.14¢2 569
#006
STAY, BRAKE JOINT
$18.85¢9 425
#007
CLAMP, FR. BRAKE HOSE
$11.57¢5 788
#008
BOOT
$14.24¢7 119
#009
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO)
$328.56¢164 281
#009
MASTER CYLINDER SUB-Assembly., Front BRAKE
$328.56¢164 281
#010
PROTECTOR
$5.20¢2 600
#011
CAP, MASTER CYLINDER (NISSIN)
$26.02¢13 013
#012
HOLDER, MASTER CYLINDER (NISSIN)
$24.05¢12 025
#013
PLATE, DIAPHRAGM
$12.36¢6 181
#014
DIAPHRAGM
$17.68¢8 838
#015
FLOAT, FR. MASTER CYLINDER (NISSIN)
$5.45¢2 725
#016
MASTER CYLINDER SET
$46.40¢23 200
#017
LEVER, Right HANDLE
$19.06¢9 531
#018
CLIP, SENSOR HOSE
$4.22¢2 113
#018
CLIP, SENSOR HOSE
$4.22¢2 113
#019
BOLT, SOCKET (6X22)
$1.86¢931
#020
BOLT, FLANGE (6X10)
$1.74¢869
#021
BOLT, FLANGE (6X25)
$2.64¢1 319
#022
BOLT, HANDLE LEVER PIVOT
$11.03¢5 513
#023
BOLT, FLANGE (6X12)
$1.85¢925
#024
BOLT, FLANGE (6X25)
$1.85¢925
#025
BOLT, OIL (10X22)
$8.89¢4 444
#026
NUT, CAP (6MM)
$2.76¢1 381
#027
WASHER, OIL BOLT
$4.85¢2 425
#028
CIRCLIP
$3.10¢1 550
#029
SCREW, FLAT (4X12)
$1.16¢581
#029
SCREW, FLAT (4X12)
$1.16¢581
#030
SCREW-WASHER (4X12)
$1.72¢862
#030
SCREW-WASHER (4X12)
$1.72¢862
