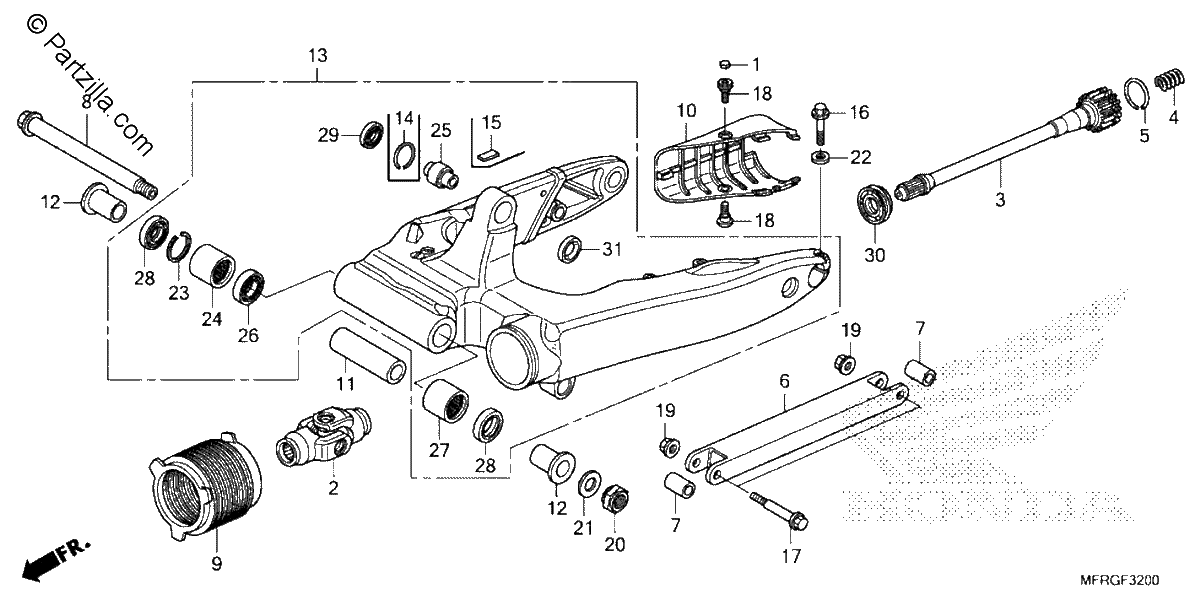

SWINGARM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
PLUG, HEX. (6MM)
$5.47¢2 738
#002
JOINT, YOKE
$225.85¢112 925
#003
SHAFT, PROPELLER
$207.99¢103 994
#004
SPRING, PROPELLER SHAFT
$7.16¢3 581
#005
RING, STOPPER
$5.47¢2 738
#006
LINK, TORQUE
$190.76¢95 381
#007
BUSH, TORQUE LINK
$15.10¢7 550
#008
BOLT, SWINGARM PIVOT
$77.05¢38 525
#009
BOOT, JOINT
$32.54¢16 269
#010
COVER, PROPELLER SHAFT
$31.41¢15 706
#011
COLLAR, CENTER PIVOT DISTANCE
$29.46¢14 731
#012
COLLAR, PIVOT DISTANCE
$36.39¢18 194
#013
SWINGARM SUB-ASSY., RR. *NH1* (BLACK)
$1699.94¢849 969
#015
TAPE, SIDE COVER PROTECTOR
$1.54¢769
#016
BOLT, FLANGE (8X35)
$8.69¢4 344
#017
BOLT, FLANGE (10X50)
$5.58¢2 788
#018
BOLT, SOCKET (6X12)
$4.14¢2 069
#019
NUT, U (10MM)
$5.25¢2 625
#020
NUT, U (18MM)
$8.26¢4 131
#021
WASHER, SPECIAL (18MM)
$3.69¢1 844
#022
WASHER, PLAIN (8MM)
$4.90¢2 450
#023
CIRCLIP (INNER) (37)
$4.04¢2 019
#024
BEARING, NEEDLE
$19.98¢9 988
#025
BEARING, SPHERICAL (10MM)
$46.50¢23 250
#026
BEARING, RADIAL BALL (20X37X9)
$11.99¢5 994
#027
BEARING, NEEDLE
$29.82¢14 913
#028
DUST SEAL (28X37X4)
$7.70¢3 850
#029
DUST SEAL (16X26X2.5)
$7.52¢3 762
#030
OIL SEAL (27X43X7)
$14.09¢7 044
#031
DUST SEAL (16X26X2.5)
$7.52¢3 762
