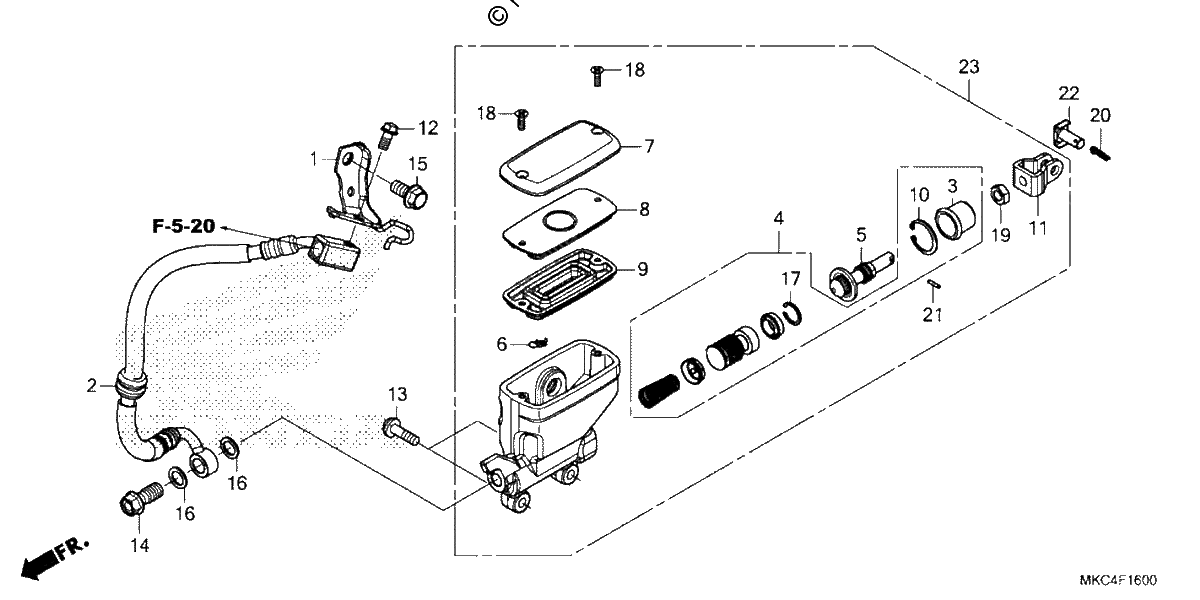

REAR BRAKE MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
STAY B, RR. BRAKE
$10.80¢5 399
#002
HOSE A, RR. BRAKE
$59.68¢29 842
#003
BOOT
$10.80¢5 399
#004
PISTON SET, RR. MASTER CYLINDER
$31.35¢15 675
#005
ROD ASSY., PUSH
$26.36¢13 179
#006
PROTECTOR
$4.78¢2 392
#007
CAP, MASTER CYLINDER (NISSIN)
$23.94¢11 971
#008
PLATE, DIAPHRAGM
$11.37¢5 687
#009
DIAPHRAGM
$16.26¢8 131
#010
CIRCLIP
$2.30¢1 150
#011
JOINT, BRAKE ROD
$16.93¢8 464
#012
BOLT, FLANGE (6X12)
$2.75¢1 374
#013
BOLT, RR. MASTER CYLINDER (6X21)
$3.66¢1 829
#014
BOLT, OIL (10X22)
$8.18¢4 088
#015
BOLT, FLANGE (8X16)
$2.51¢1 254
#016
WASHER, OIL BOLT
$4.46¢2 231
#017
CIRCLIP, PISTON
$3.37¢1 685
#018
SCREW, FLAT (4X12)
$1.07¢535
#018
SCREW, FLAT (4X12)
$1.07¢535
#019
NUT, HEX. (8MM)
$1.54¢771
#020
PIN, SPLIT (2.0X15)
$1.23¢615
#021
PIN, SPRING (2X10)
$1.03¢518
#022
PIN D, JOINT
$4.74¢2 369
#023
MASTER CYLINDER ASSY., RR. (NISSIN)
$303.48¢151 742
