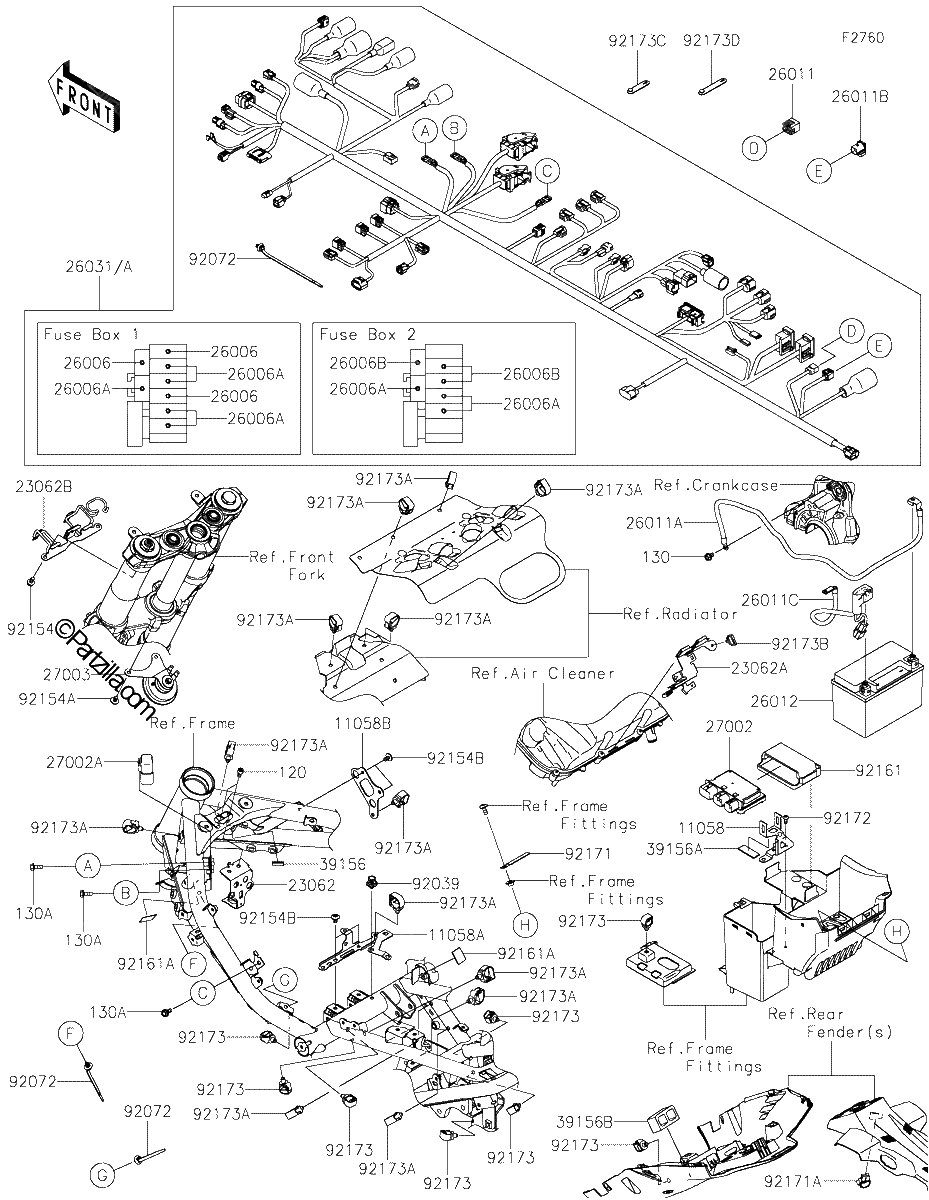

CHASSIS ELECTRICAL EQUIPMENT
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#120
BOLT-SOCKET,6X12
$1.66¢831
#130
BOLT FLANGED,6X10
$1.26¢631
#130A
BOLT FLANGED,6X16
$1.26¢631
#11058
BRACKET,MAGNETIC SWITCH
$8.75¢4 375
#11058A
BRACKET
$10.75¢5 375
#11058B
BRACKET,IMU
$4.84¢2 419
#23062
BRACKET COMP,VDS
$12.58¢6 288
#23062A
BRACKET COMP,A/C BOX
$16.92¢8 462
#23062B
BRACKET COMP,FORK UPPER HOLDER
$26.39¢13 194
#26006
FUSE,MINI BLADE,15A,BLUE
$6.25¢3 125
#26006A
FUSE,MINI BLADE,10A,RED
$4.38¢2 188
#26006B
FUSE,MINI BLADE,30A,GREEN
$5.06¢2 531
#26011
WIRE-LEAD,CONNECTOR COVER
$15.71¢7 856
#26011A
WIRE-LEAD,BATTERY(-)
$100.21¢50 106
#26011B
WIRE-LEAD,DIAG CONNECTOR
$44.84¢22 419
#26011C
WIRE LEAD,BATTERY(+)
$103.18¢51 588
#26012
BATTERY,FTX9-BS,12V 8AH
No Disponible
#26031
HARNESS,MAIN
$1290.03¢645 013
#26031A
HARNESS,MAIN
$1290.03¢645 013
#27002A
RELAY Assembly
$42.02¢21 013
#27002
RELAY Assembly
$214.27¢107 137
#27003
HORN
$82.90¢41 450
#39156A
PAD,40X15X2
$1.09¢544
#39156B
PAD,DIAG CONNECTOR
$3.24¢1 619
#39156
PAD,20X20X1
$1.11¢556
#92039
RIVET,HOLE 8MM
$2.97¢1 487
#92072
BAND
$3.70¢1 850
#92154
BOLT,FLANGED,6X12
$1.96¢981
#92154A
BOLT,SOCKET,6X10
$1.24¢619
#92154B
BOLT,SOCKET,6X10
$1.63¢813
#92161
DAMPER,RELAY BOX
$11.73¢5 863
#92161A
DAMPER,25X40,T1.0
$1.29¢644
#92171
CLAMP,L=60
$2.41¢1 206
#92171A
CLAMP,EDGE CLIP
$9.25¢4 625
#92172
SCREW,SOCKET,5X14
$0.95¢475
#92173
CLAMP,12MM DIA.
$5.01¢2 506
#92173A
CLAMP
$2.75¢1 375
#92173B
CLAMP,CLIP,TAIL LAMP,ETC
$1.55¢775
#92173C
CLAMP
$1.55¢775
#92173D
CLAMP
$1.55¢775
