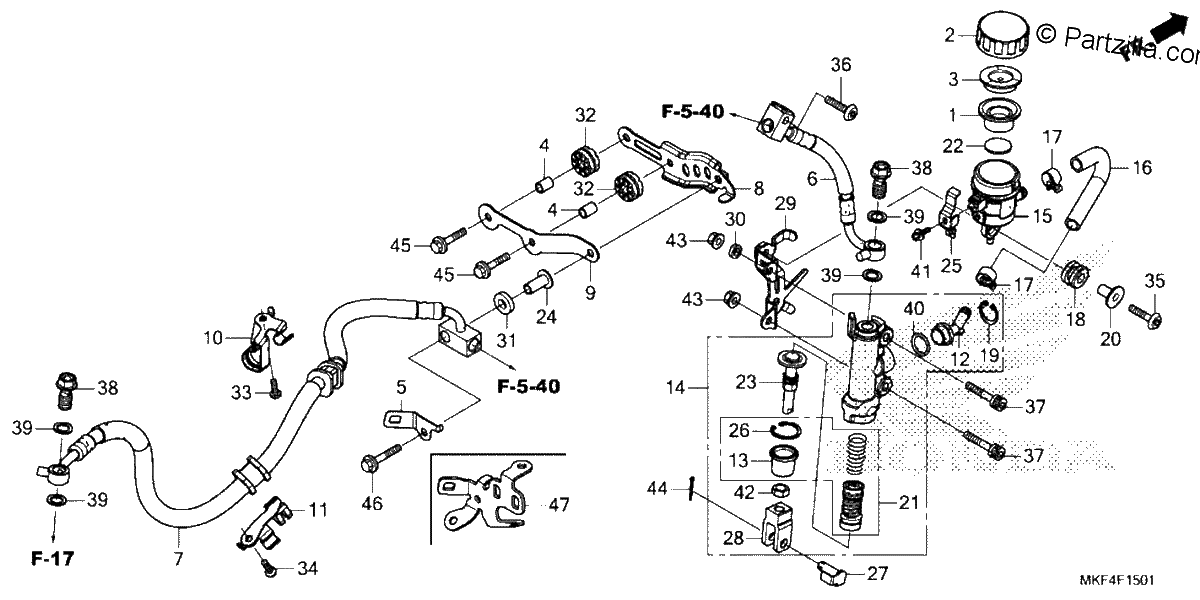

REAR BRAKE MASTER CYLINDER 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
DIAPHRAGM
$16.21¢8 108
#002
CAP, OIL CUP
$47.13¢23 563
#003
PLATE, DIAPHRAGM
$12.54¢6 268
#004
COLLAR
$2.04¢1 018
#005
STAY, HARNESS CLIP
$4.51¢2 254
#006
HOSE A, RR. BRAKE
$48.48¢24 242
#007
HOSE D, RR. BRAKE
$78.28¢39 140
#008
STAY B, RR. BRAKE HOSE
$14.12¢7 061
#009
STAY C, RR. BRAKE HOSE
$7.19¢3 594
#010
CLAMP A, RR. BRAKE HOSE
$9.02¢4 508
#011
CLAMP B, RR. BRAKE HOSE
$9.02¢4 508
#012
CONNECTOR, MASTER CYLINDER
$4.96¢2 478
#013
BOOT
$10.80¢5 399
#014
MASTER CYLINDER SUB-ASSY., RR.BRAKE (NISSIN)
$227.91¢113 953
#015
CUP, OIL
$24.92¢12 460
#016
HOSE, RR. MASTER CYLINDER
$13.12¢6 561
#017
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
#018
RUBBER, OIL CUP MOUNTING
$4.99¢2 496
#019
CIRCLIP, Rear MASTER CYLINDER
$4.25¢2 128
#020
COLLAR (6.3X14)
$4.36¢2 179
#021
PISTON SET, MASTER CYLINDER (NISSIN)
$49.67¢24 834
#022
FLOAT
$3.71¢1 857
#023
ROD, PUSH
$32.80¢16 399
#024
COLLAR, FR. BRAKE HOSE
$8.91¢4 456
#025
PLATE, STOP
$6.08¢3 042
#026
CIRCLIP
$2.30¢1 150
#027
PIN, BRAKE ROD
$15.71¢7 855
#028
JOINT, BRAKE ROD
$15.55¢7 774
#029
STAY, RR. MASTER CUP
$14.21¢7 107
#030
COLLAR (6.5X11X3)
$3.36¢1 679
#031
RUBBER, SEAT HINGE
$3.16¢1 581
#032
RUBBER, TAILLIGHT MOUNTING
$5.27¢2 633
#033
SCREW, PAN (5X15)
$3.21¢1 604
#034
SCREW, PAN (5X15)
$3.21¢1 604
#035
BOLT, SPECIAL (6X25)
$2.64¢1 322
#036
BOLT, SPECIAL (6X25)
$2.86¢1 432
#037
BOLT, SOCKET (6X32)
$2.51¢1 254
#038
BOLT, OIL (10X22)
$8.18¢4 088
#039
WASHER, OIL BOLT
$4.46¢2 231
#040
O-RING (14.8X2.4)
$3.04¢1 518
#041
SCREW-WASHER (4X12)
$1.59¢793
#041
SCREW-WASHER (4X12)
$1.59¢793
#042
NUT, HEX. (8MM)
$1.47¢736
#043
NUT, FLANGE (6MM)
$0.74¢368
#044
PIN, SPLIT (2.0X15)
$1.23¢615
#045
BOLT, FLANGE (6X25)
$1.59¢793
#046
BOLT, FLANGE (6X32)
$1.83¢914
