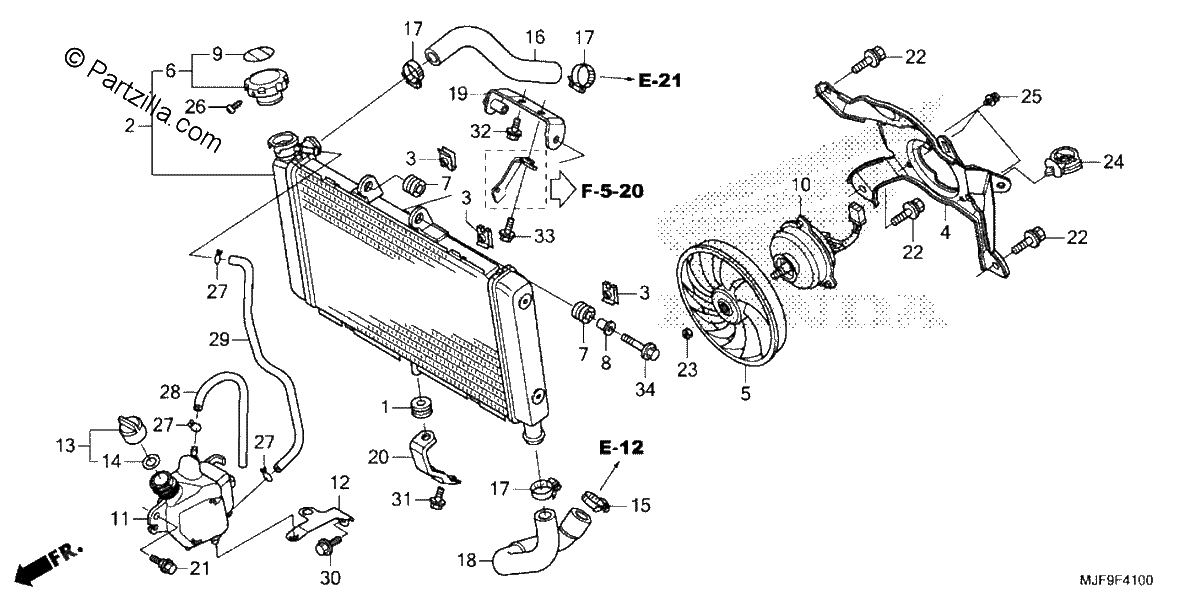

RADIATOR
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
RUBBER, CUSHION
$5.35¢2 674
#002
RADIATOR (COO)
$1054.61¢527 304
#002
RADIATOR
$1054.61¢527 304
#003
NUT, SETTING (6MM)
$3.45¢1 725
#004
SHROUD
$97.15¢48 576
#005
FAN, COOLING (TOYO)
$42.38¢21 189
#006
CAP, RADIATOR
$43.54¢21 769
#007
RUBBER, RADIATOR MOUNTING
$2.15¢1 075
#008
COLLAR, RADIATOR MOUNTING
$2.94¢1 472
#009
SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)
$9.92¢4 962
#010
MOTOR Assembly., FAN
$255.77¢127 886
#011
TANK, RADIATOR RESERVE
$46.02¢23 012
#012
STAY, RESERVE TANK (LOWER)
$8.29¢4 146
#013
CAP ASSY., RESERVE TANK
$7.69¢3 847
#014
GASKET, RESERVE TANK
$4.17¢2 087
#015
CLAMP, WATER HOSE (35MM)
$11.14¢5 572
#016
HOSE, RADIATOR (UPPER)
$15.50¢7 751
#017
CLAMP, WATER HOSE
$7.89¢3 944
#018
HOSE, RADIATOR (LOWER)
$27.07¢13 535
#019
STAY, RADIATOR (UPPER)
$9.86¢4 928
#020
STAY, RADIATOR (LOWER) NH303M (MAT AXIS GRAY METALLIC)
$11.85¢5 923
#021
BOLT, FLANGE (6MM)
$3.36¢1 679
#022
BOLT-WASHER (6X12)
$2.28¢1 138
#023
NUT, FLANGE (3MM)
$2.75¢1 374
#024
CLIP, HARNESS
$3.69¢1 846
#025
SCREW-WASHER (4X6)
$1.36¢678
#026
SCREW, TAPPING (3X8)
$1.07¢535
#027
CLIP, TUBE (B10)
$2.24¢1 121
#028
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$36.70¢18 348
#029
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$36.70¢18 348
#030
BOLT, FLANGE (6X14)
$1.13¢564
#031
BOLT, FLANGE (6X14)
$1.28¢638
#032
BOLT, FLANGE (6X14)
$1.92¢960
#033
BOLT, FLANGE (6X18)
$1.92¢960
#034
BOLT, FLANGE (6X25)
$2.13¢1 064
