HANDLE LEVER SWITCH CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

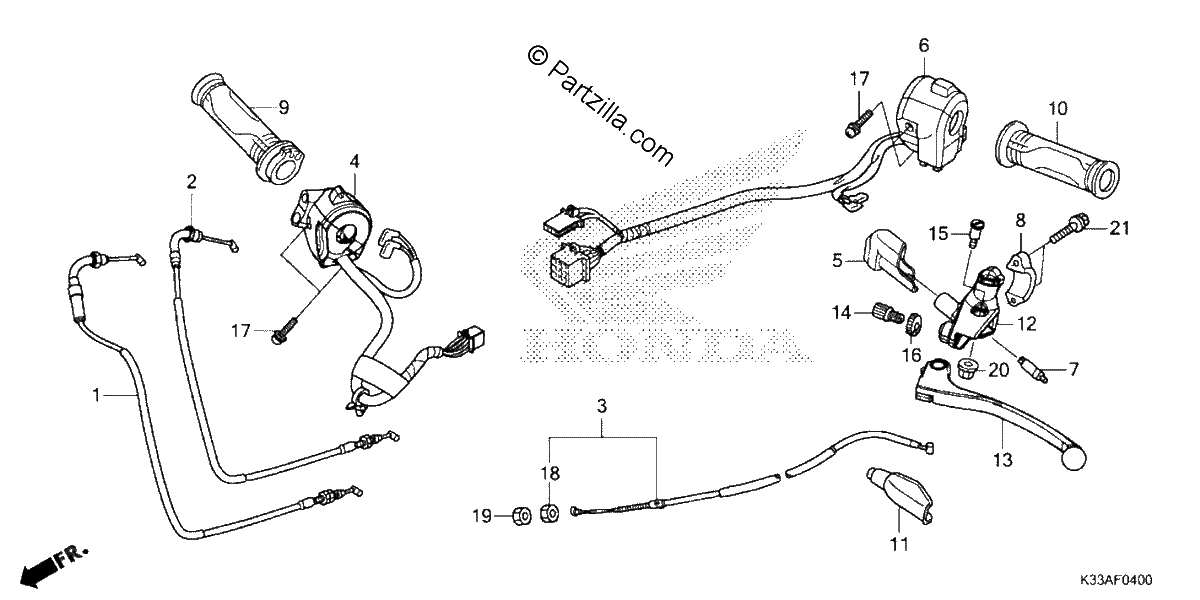

Diagrama de HANDLE LEVER SWITCH CABLE

Repuestos

#001
17910-K33-700
CABLE A, THROTTLE
$17.16¢8 579
1
#002
17920-K33-700
CABLE B, THROTTLE
$16.25¢8 125
1
#003
22870-K33-700
CABLE, CLUTCH
$11.33¢5 664
1
#004
35130-K33-701
SWITCH ASSY., STARTER ENGINE STOP
$57.06¢28 531
1
#005
35152-KRY-970
COVER, CLUTCH SWITCH
$10.80¢5 399
1
#006
35200-K33-651
SWITCH ASSY., TURN SIGNAL
$116.54¢58 271
1
#007
35330-KYJ-901
SWITCH, Front LEVER
$7.37¢3 686
1
#008
45517-KCW-870
HOLDER, MASTER CYLINDER
$11.65¢5 825
1
#009
53140-KYJ-305
GRIP, THROTTLE (COO)
$10.88¢5 440
1
#009
53140-KYJ-900
GRIP, THROTTLE
$10.88¢5 440
1
#010
53166-KYJ-305
GRIP, L. HANDLE (COO)
$6.32¢3 162
1
#010
53166-KYJ-900
GRIP, L. HANDLE
$6.32¢3 162
1
#011
53172-402-700
COVER, L HANDLE LEVER
$8.03¢4 013
1
#012
53172-KYJ-900
BRACKET, HANDLE LEVER
$14.96¢7 481
1
#013
53178-MAH-000
LEVER, L HANDLE
$20.84¢10 419
1
#013
53178-MFR-305
LEVER, L. HANDLEBAR (COO)
$20.84¢10 419
1
#014
53192-268-000
BOLT, WIRE ADJUSTING
$7.29¢3 645
1
#015
90113-438-000
BOLT, L HANDLEBAR LEVER PIVOT
$8.46¢4 232
1
#016
90321-315-670
NUT, FIXING
$8.15¢4 077
1
#017
90507-MGZ-J00
SCREW-WASHER (5X20)
$0.59¢293
1
#018
94002-08000-0S
NUT, HEX. (8MM)
$1.47¢736
1
#019
94030-08000
NUT, HEX. (8MM)
$1.26¢633
1
#020
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
#021
96001-06022-07
BOLT, FLANGE (6X22)
$2.18¢1 092
1
