IGNITION SWITCH LOCKS REFLECTORS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

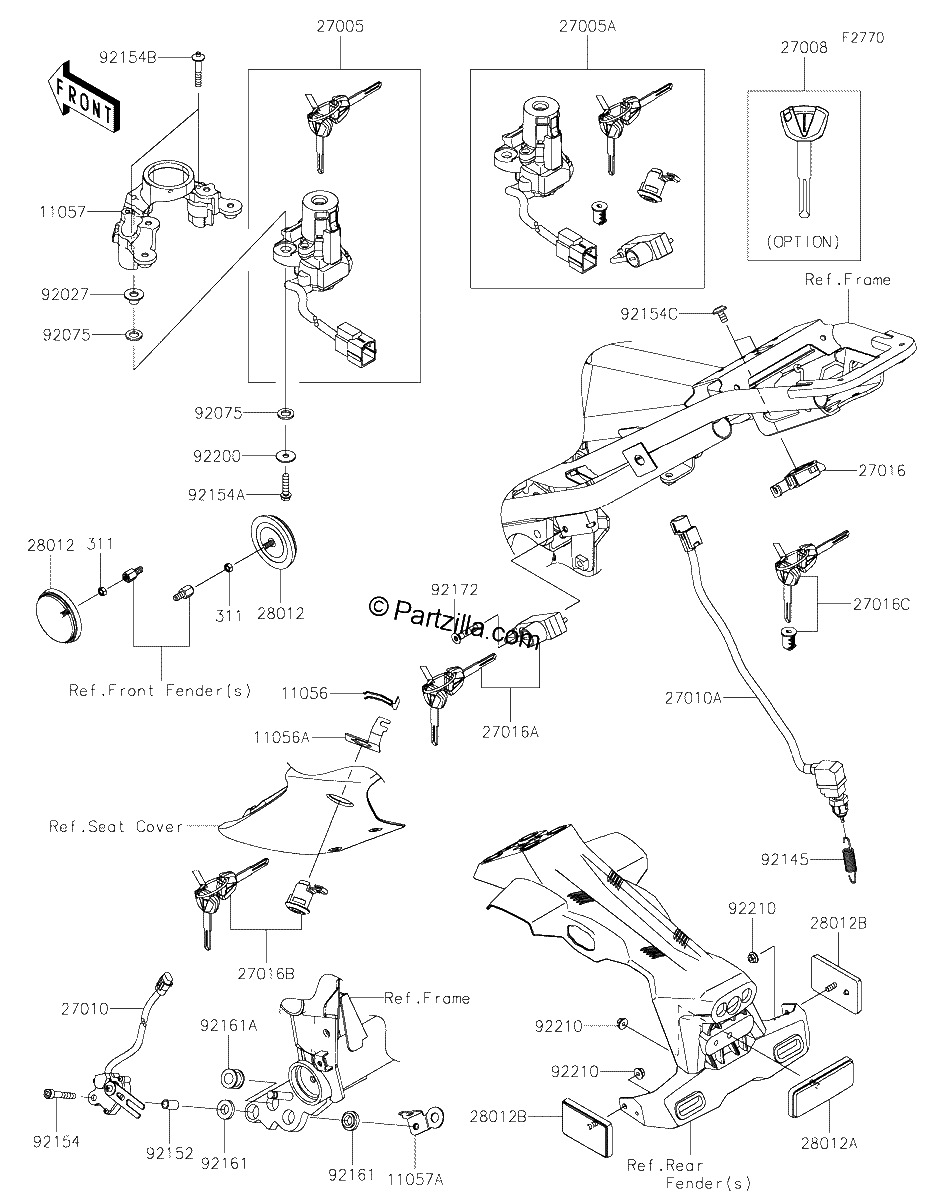

Diagrama de IGNITION SWITCH LOCKS REFLECTORS

Repuestos

#311
311AB0500
NUT HEX,5MM
$0.60¢300
1
#11056
11056-0238
BRACKET,CLASP
$5.90¢2 950
1
#11056A
11056-2119
BRACKET,SEAT LOCK
$4.60¢2 300
1
#11057A
11057-0319
BRACKET
$1.49¢744
1
#11057
11057-0251
BRACKET,IG. SWITCH
$84.72¢42 363
1
#27005A
27005-5211
SWITCH Assembly IGNITION
$621.29¢310 644
1
#27005
27005-0750
SWITCH Assembly IGNITION
$202.84¢101 419
1
#27008
27008-0662
KEY-LOCK,BLANK
$32.85¢16 425
1
#27010A
27010-1503
SWITCH,REAR BRAKE
$32.54¢16 269
1
#27010
27010-0722
SWITCH,SIDE STAND
$147.57¢73 788
1
#27016C
27016-5425
LOCK Assembly,TANK CAP
$161.21¢80 606
1
#27016B
27016-5424
LOCK Assembly,SEAT
$171.38¢85 688
1
#27016A
27016-5423
LOCK Assembly,HELMET
$140.59¢70 294
1
#27016
27016-0008
LOCK Assembly,SEAT STRIKER
$16.55¢8 275
1
#28012B
28012-1088
REFLECTOR REFLEX
$23.64¢11 819
1
#28012A
28012-0064
REFLECTOR REFLEX,Rear,FLAP
$25.47¢12 737
1
#28012
28012-0061
REFLECTOR-REFLEX,FR,SIDE
$14.06¢7 031
1
#92027
92027-1045
COLLAR,L=9.6
$5.45¢2 725
1
#92075
92075-1564
DAMPER
$5.41¢2 706
1
#92145
92145-1902
SPRING,BRAKE LAMP SWITCH
$8.89¢4 444
1
#92152
92152-2274
COLLAR,6.5X9.5X17
$2.36¢1 181
1
#92154C
92154-2355
BOLT,SOCKET,6X12
$1.86¢931
1
#92154B
92154-2207
BOLT,E TYPE TORX,6X35
$3.69¢1 844
1
#92154A
92154-2154
BOLT,FLANGED,6X25
$2.75¢1 375
1
#92154
92154-0505
BOLT,SOCKET,6X40
$1.69¢844
1
#92161A
92161-0118
DAMPER
$2.76¢1 381
1
#92161
92161-0117
DAMPER
$2.76¢1 381
1
#92172
92172-0835
SCREW,HEXLOBE,6X35
$2.86¢1 431
1
#92200
92200-0780
WASHER,6X20X1.6
$1.24¢619
1
#92210
92210-0007
NUT,FLANGED,5MM
$2.48¢1 238
1
