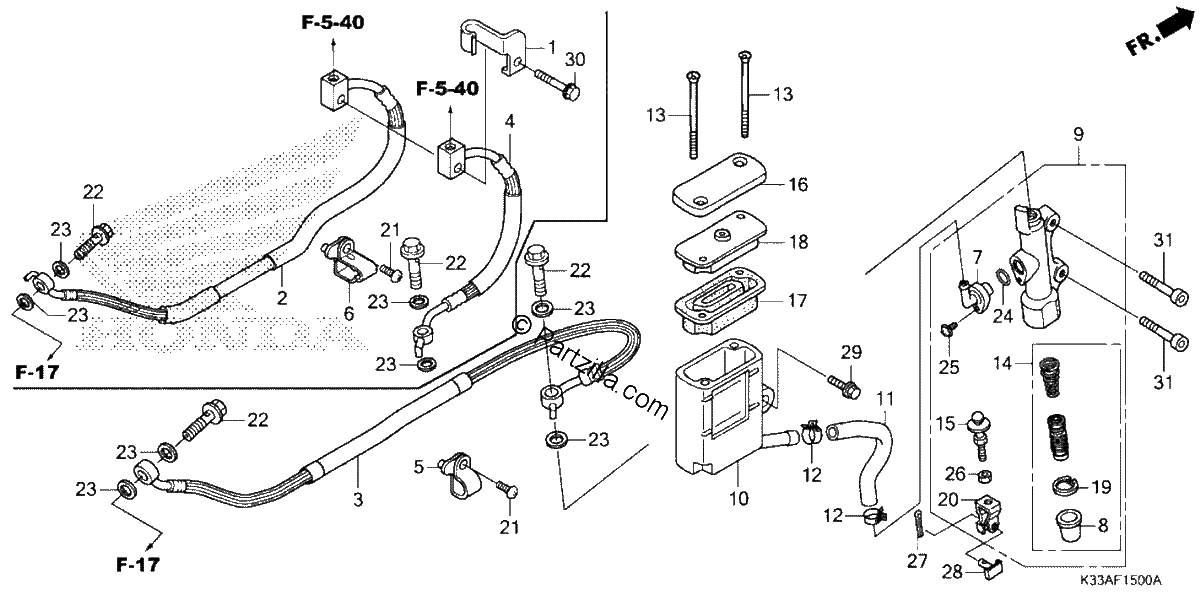

REAR BRAKE MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#003
HOSE, RR. BRAKE
$32.92¢16 463
#005
GUIDE, BRAKE HOSE
$6.00¢3 000
#007
CONNECTOR
$16.30¢8 150
#008
BOOT
$11.74¢5 869
#009
MASTER CYLINDER SUB-Assembly., Rear BRAKE (COO) (NISSIN)
$151.11¢75 556
#009
MASTER CYLINDER SUB-ASSY., RR.BRAKE (NISSIN)
$151.11¢75 556
#010
CUP, MASTER CYLINDER OIL
$7.97¢3 988
#011
HOSE, RR. MASTER CYLINDER
$7.63¢3 813
#012
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
#013
SCREW, FLAT (4X60)
$1.16¢581
#014
PISTON SET, MASTER CYLINDER (NISSIN)
$53.99¢26 994
#015
ROD, PUSH
$25.54¢12 769
#016
CAP, MASTER CYLINDER
$21.21¢10 606
#017
DIAPHRAGM
$8.84¢4 419
#018
PLATE, DIAPHRAGM
$6.95¢3 475
#019
CIRCLIP
$2.50¢1 250
#020
JOINT, BRAKE ROD
$17.25¢8 625
#021
SCREW, PAN (5X12)
$1.06¢531
#022
BOLT, OIL (10X22)
$8.89¢4 444
#023
WASHER, OIL BOLT
$4.85¢2 425
#024
O-RING (14.8X2.4)
$3.30¢1 650
#025
SCREW-WASHER (4X12)
$0.33¢163
#026
NUT, HEX. (8MM)
$1.60¢800
#027
PIN, SPLIT (2.0X15)
$1.34¢669
#028
PIN D, JOINT
$5.15¢2 575
#029
BOLT, FLANGE (6X14)
$1.54¢769
#031
BOLT, SOCKET (6X20)
$1.66¢831
