CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

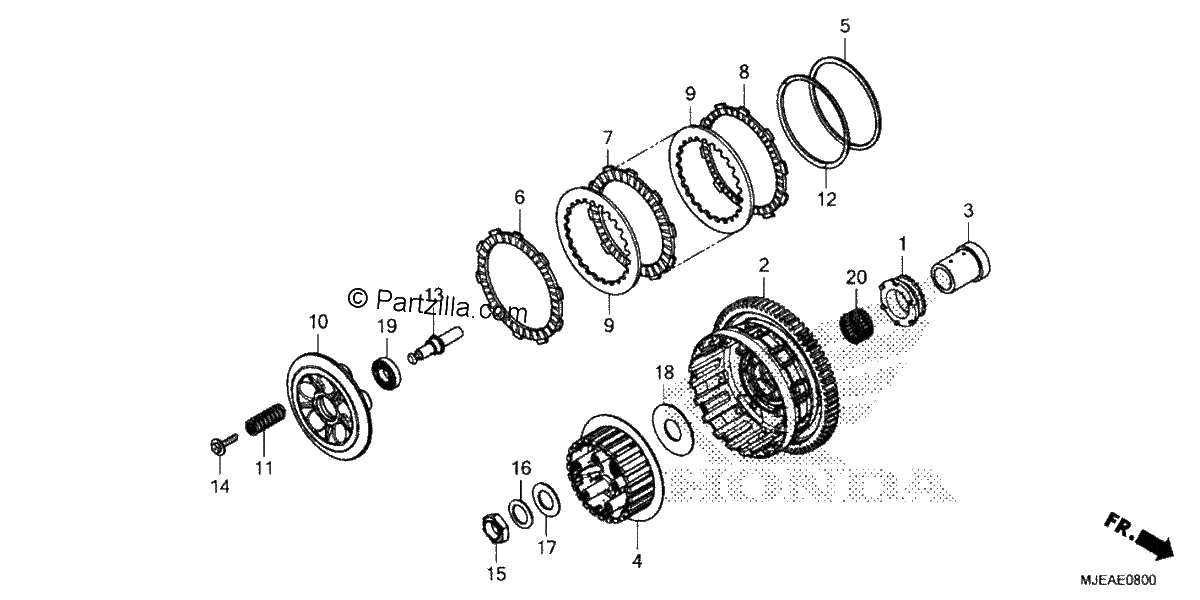

Diagrama de CLUTCH

Repuestos

#001
15131-MJE-D01
SPROCKET, OIL PUMP DRIVE (25T)
$46.76¢23 379
1
#002
22100-MJE-D00
CLUTCH OUTER (71T)
$259.45¢129 726
1
#003
22116-MJE-D00
GUIDE, CLUTCH (OUTER)
$21.70¢10 850
1
#004
22120-MJE-D00
CENTER, CLUTCH
$42.49¢21 246
1
#005
22125-ML7-000
SEAT, JUDDER SPRING
$11.49¢5 744
1
#006
22201-MAE-000
DISK, CLUTCH FRICTION
$18.93¢9 465
1
#007
22201-MFJ-D00
DISK, CLUTCH FRICTION
$14.04¢7 021
1
#008
22202-MAE-000
DISK B, CLUTCH FRICTION
$17.10¢8 550
1
#009
22321-ML7-000
PLATE, CLUTCH
$15.08¢7 538
1
#010
22350-MCJ-000
PLATE, CLUTCH PRESSURE
$68.68¢34 339
1
#011
22401-MJE-D00
SPRING, CLUTCH
$3.36¢1 679
1
#012
22402-MAS-E00
SPRING, JUDDER
$22.62¢11 310
1
#013
22847-MJE-D00
PIN, CLUTCH LIFTER
$25.86¢12 932
1
#014
90024-MAS-000
BOLT-WASHER (6X28)
$4.16¢2 081
1
#015
90231-MJE-D00
NUT, LOCK (22MM)
$4.91¢2 455
1
#016
90432-MM5-000
WASHER, SPRING (22MM)
$9.18¢4 589
1
#017
90451-KG4-000
WASHER, THRUST (22X39X2)
$5.23¢2 616
1
#018
90459-MM4-000
WASHER (60X25X2)
$11.45¢5 727
1
#019
91009-MAS-003
BEARING, RADIAL BALL (16003)
$24.25¢12 127
1
#020
91102-MEE-003
BEARING B, NEEDLE (35X41X23.8) (WHITE)
$7.30¢3 651
1
