FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

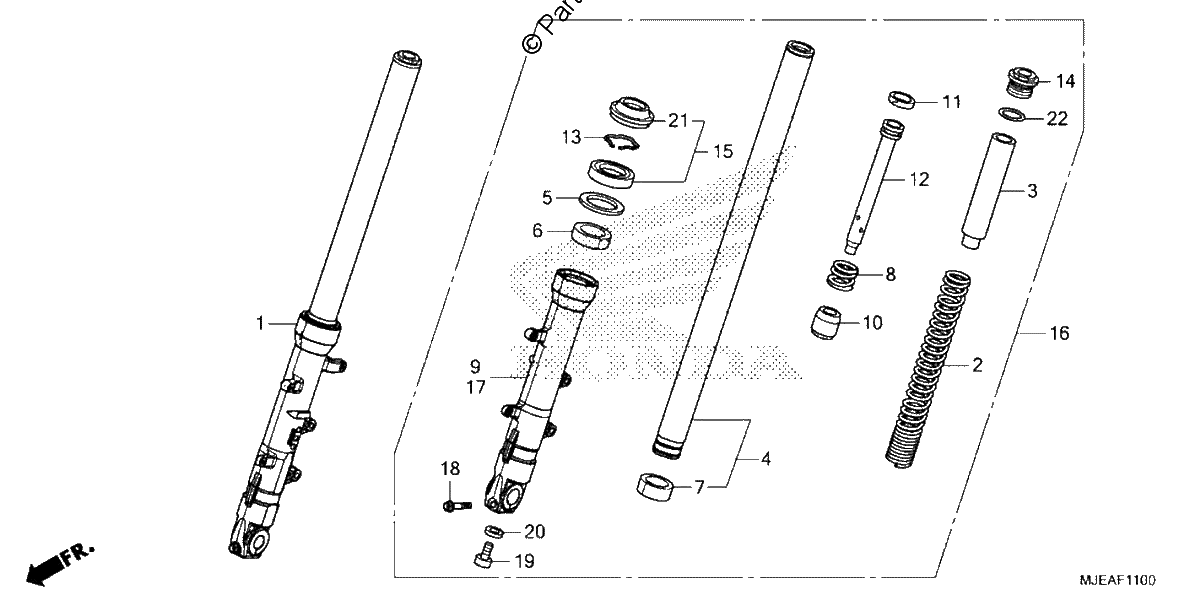

Diagrama de FRONT FORK

Repuestos

#001
51400-MJE-DF1
FORK ASSY., R. FR. (SHOWA)
$558.24¢279 119
1
#002
51401-MJE-DF1
SPRING, FR. FORK (SHOWA)
$51.57¢25 787
1
#003
51402-MGZ-J01
COLLAR, SPRING
$20.74¢10 369
1
#004
51410-MJE-DF1
PIPE, FR. FORK (SHOWA)
$200.82¢100 413
1
#005
51412-MB4-003
RING, BACK-UP (SHOWA)
$11.29¢5 644
1
#006
51414-MFJ-A51
BUSH, GUIDE
$8.80¢4 400
1
#007
51415-MFJ-A51
BUSH, SLIDER
$8.80¢4 400
1
#008
51416-KF0-003
SPRING, FR. REBOUND (SHOWA)
$9.36¢4 681
1
#009
51420-MJE-D01
CASE, R. (LOWER)
$248.38¢124 188
1
#010
51432-MV4-003
PIECE, OIL LOCK
$19.14¢9 569
1
#011
51437-MJE-DB1
RING, PISTON (SHOWA)
$2.31¢1 156
1
#012
51440-MJE-DB1
PIPE, SEAT (SHOWA)
$12.18¢6 088
1
#013
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.47¢2 738
1
#014
51454-MKA-D81
BOLT, FR. FORK
$59.77¢29 888
1
#015
51490-MKA-D81
SEAL SET, FR. FORK
$26.44¢13 219
1
#016
51500-MJE-DF1
FORK ASSY., L. FR. (SHOWA)
$531.86¢265 931
1
#017
51520-MJE-D01
CASE, Left (LOWER)
$246.79¢123 394
1
#018
90108-MR7-000
BOLT, FLANGE (8X40)
$6.13¢3 063
1
#019
90116-KV3-701
BOLT, SOCKET (8MM) (SHOWA)
$4.71¢2 356
1
#020
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.65¢1 825
1
#021
91251-MKA-D81
DUST SEAL (SHOWA)
$10.00¢5 000
1
#022
91356-KF0-003
O-RING (33.2X2.4)
$4.56¢2 281
1
