FRONT BRAKE MASTER CYLINDER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

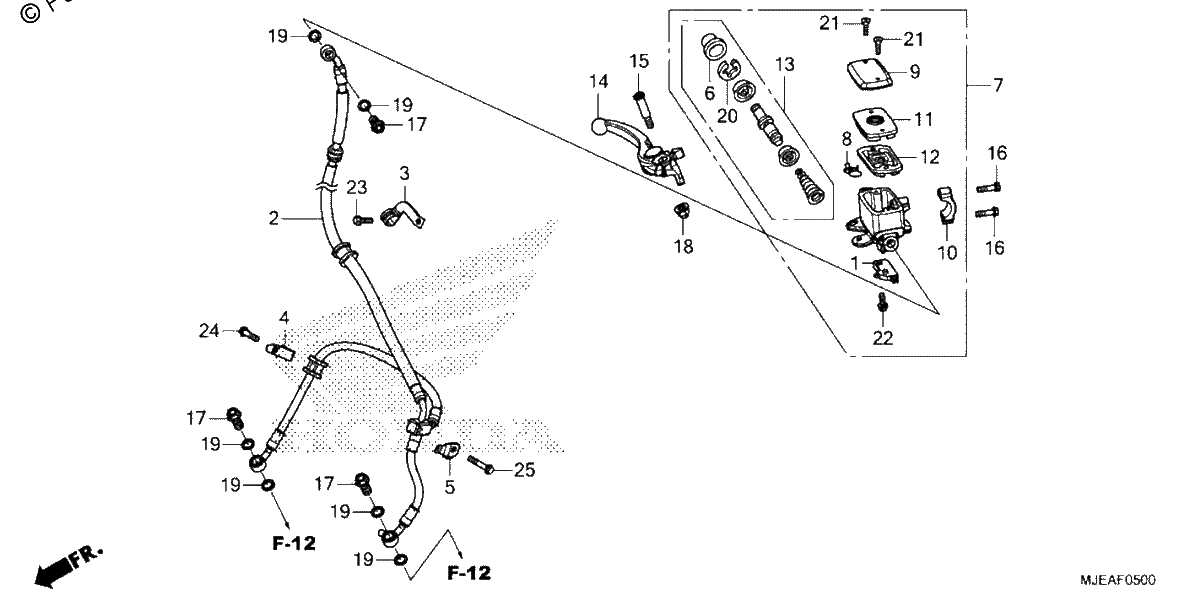

Diagrama de FRONT BRAKE MASTER CYLINDER 1

Repuestos

#001
35340-MGS-D31
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
1
#002
45125-MJE-ME1
HOSE, FR. BRAKE (NICHIRIN)
$84.90¢42 450
1
#003
45155-MGZ-J00
CLAMP A, Front BRAKE HOSE
$2.92¢1 463
1
#004
45156-MJE-D00
CLAMP A, Front BRAKE HOSE
$4.96¢2 481
1
#005
45158-MJE-D00
STAY, Front BRAKE HOSE
$7.38¢3 688
1
#006
45504-410-003
BOOT
$14.24¢7 119
1
#007
45510-MJE-305
MASTER CYLINDER SUB-Assembly., Front.(COO) (NISSIN)
$136.89¢68 444
1
#007
45510-MJE-D01
MASTER CYLINDER SUB-ASSY., FR.(NISSIN)
$136.89¢68 444
1
#008
45512-MA6-006
PROTECTOR
$5.20¢2 600
1
#009
45513-MM5-016
CAP, MASTER CYLINDER (NISSIN)
$26.02¢13 013
1
#010
45517-166-006
HOLDER, MASTER CYLINDER
$15.74¢7 869
1
#011
45518-MM5-006
PLATE, DIAPHRAGM
$12.36¢6 181
1
#012
45520-MM5-006
DIAPHRAGM
$17.68¢8 838
1
#013
45530-471-831
MASTER CYLINDER SET
$46.40¢23 200
1
#014
53170-MJE-305
LEVER Assembly., Right HANDLE (COO)
$61.71¢30 856
1
#014
53170-MJE-D01
LEVER ASSY., R. HANDLE
$61.71¢30 856
1
#015
90114-MA5-671
BOLT, HANDLE LEVER PIVOT
$11.03¢5 513
1
#016
90131-MJE-D00
BOLT, FLANGE (6X22)
$0.61¢306
1
#017
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#018
90202-KCW-870
NUT, CAP (6MM)
$3.65¢1 825
1
#019
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#020
90651-MA5-671
CIRCLIP
$3.10¢1 550
1
#021
93600-04012-0G
SCREW, FLAT (4X12)
$1.16¢581
1
#021
93600-04012-1G
SCREW, FLAT (4X12)
$1.16¢581
1
#022
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#022
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
#023
96001-06012-07
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#024
96001-06020-07
BOLT, FLANGE (6X20)
$1.74¢869
1
#025
96001-06035-07
BOLT, FLANGE (6X35)
$2.79¢1 394
1
