COWLING LOWERS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

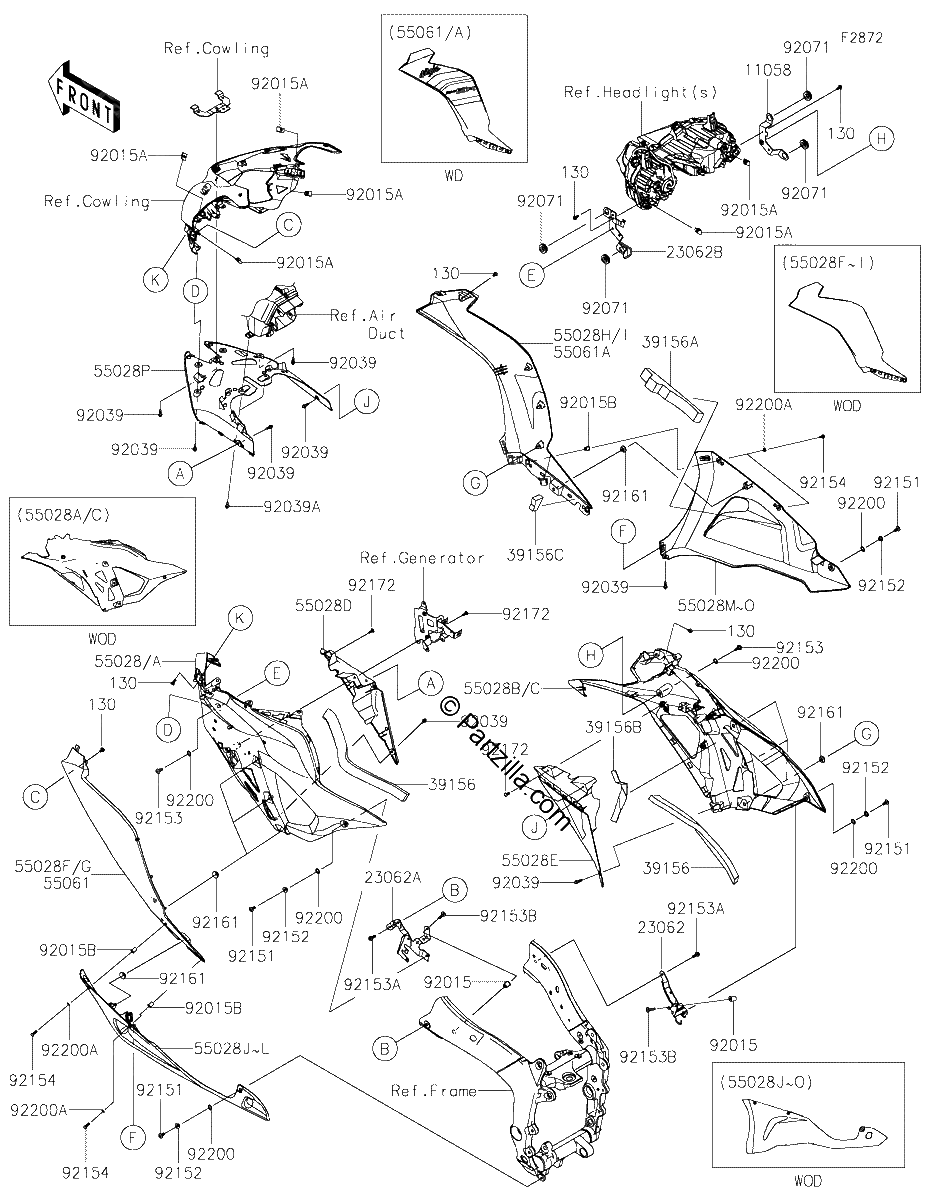

Diagrama de COWLING LOWERS

Repuestos

#130
130BA0512
BOLT-FLANGED,5X12
$1.85¢926
1
#11058
11058-0584
BRACKET,HEAD LAMP,Right Hand
$9.95¢4 974
1
#23062
23062-1160
BRACKET COMP,SIDE COWLING,Right Hand
$34.04¢17 020
1
#23062A
23062-1416
BRACKET-COMP
$56.38¢28 192
1
#23062B
23062-1417
BRACKET COMP,HEAD LAMP,Left Hand
$38.79¢19 395
1
#39156
39156-2841
PAD,390X30X15
$6.84¢3 421
1
#39156A
39156-2843
PAD,LWR COWLING
$17.09¢8 545
1
#39156B
39156-2844
PAD,173X20X2
$2.81¢1 403
1
#39156C
39156-2900
PAD,SIDE COWLING
$10.28¢5 140
1
#55028P
55028-0852
COWLING,FR
$71.92¢35 960
1
#55028M
55028-0851-69P
COWLING,Lower,Right Hand,M M D GRAY
$225.73¢112 867
1
#55028M
55028-0851-H8
COWLING,Lower,Right Hand,EBONY
$225.73¢112 867
1
#55028M
55028-0851-68N
COWLING,Lower,Right Hand,P R WHITE
$233.94¢116 972
1
#55028
55028-0844-H8
COWLING,SIDE,Left Hand,EBONY
$421.99¢210 996
1
#55028
55028-0844-45W
COWLING,SIDE,Left Hand,M G GRAY
$458.15¢229 074
1
#55028B
55028-0845-45W
COWLING,SIDE,RH,M.G.GRAY
$458.15¢229 074
1
#55028J
55028-0850-H8
COWLING,Lower,Left Hand,EBONY
$219.35¢109 676
1
#55028B
55028-0845-H8
COWLING,SIDE,Right Hand,EBONY
$458.15¢229 074
1
#55028D
55028-0846
COWLING,SIDE,Left Hand,INNER
$49.73¢24 863
1
#55028E
55028-0847
COWLING,SIDE,RH,INNER
$48.96¢24 478
1
#55028F
55028-0848-68N
COWLING,SIDE,LH,OUTER,P.R.WHT
$258.07¢129 036
1
#55028F
55028-0848-69P
COWLING,SIDE,Left Hand,OUTER,GRAY
$281.21¢140 605
1
#55028H
55028-0849-68N
COWLING,SIDE,RH,OUTER,P.R.WHT
$264.26¢132 129
1
#55028H
55028-0849-69P
COWLING,SIDE,Right Hand,OUTER,GRAY
$287.94¢143 968
1
#55028J
55028-0850-68N
COWLING,Lower,Left Hand,P R WHITE
$225.71¢112 855
1
#55028J
55028-0850-69P
COWLING,Lower,Left Hand,M M D GRAY
$219.35¢109 676
1
#55061
55061-5329-777
COWLING,SIDE,Left Hand,OUTER,L GREEN
$392.62¢196 311
1
#55061A
55061-5330-777
COWLING,SIDE,Right Hand,OUTER,L GREEN
$399.36¢199 680
1
#92015
92015-1700
NUT
$7.84¢3 922
1
#92015A
92015-1710
NUT,5MM
$5.60¢2 800
1
#92015B
92015-1757
NUT,WELL,5MM
$6.68¢3 341
1
#92039
92039-0060
RIVET
$2.81¢1 403
1
#92039A
92039-0068
RIVET
$2.51¢1 254
1
#92071
92071-1043
GROMMET
$4.69¢2 346
1
#92151
92151-1654
BOLT,SOCKET,6X14
$1.49¢747
1
#92152
92152-1535
COLLAR,6.15X10.15X6
$3.40¢1 702
1
#92153
92153-0489
BOLT,SOCKET,6MM
$3.40¢1 702
1
#92153A
92153-0713
BOLT,FLANGED,6X16
$1.84¢920
1
#92153B
92153-1356
BOLT,SOCKET,6X22
$1.87¢937
1
#92154
92154-0209
BOLT,SOCKET,5X16
$2.33¢1 167
1
#92161
92161-1937
DAMPER,6X20X7.5
$1.59¢793
1
#92172
92172-0265
SCREW,TAPPING,5X14
$1.24¢621
1
#92200
92200-0157
WASHER,10.4X15.9X0.5
$1.87¢937
1
#92200A
92200-1820
WASHER,5.2X10X1.0
$0.71¢357
1
