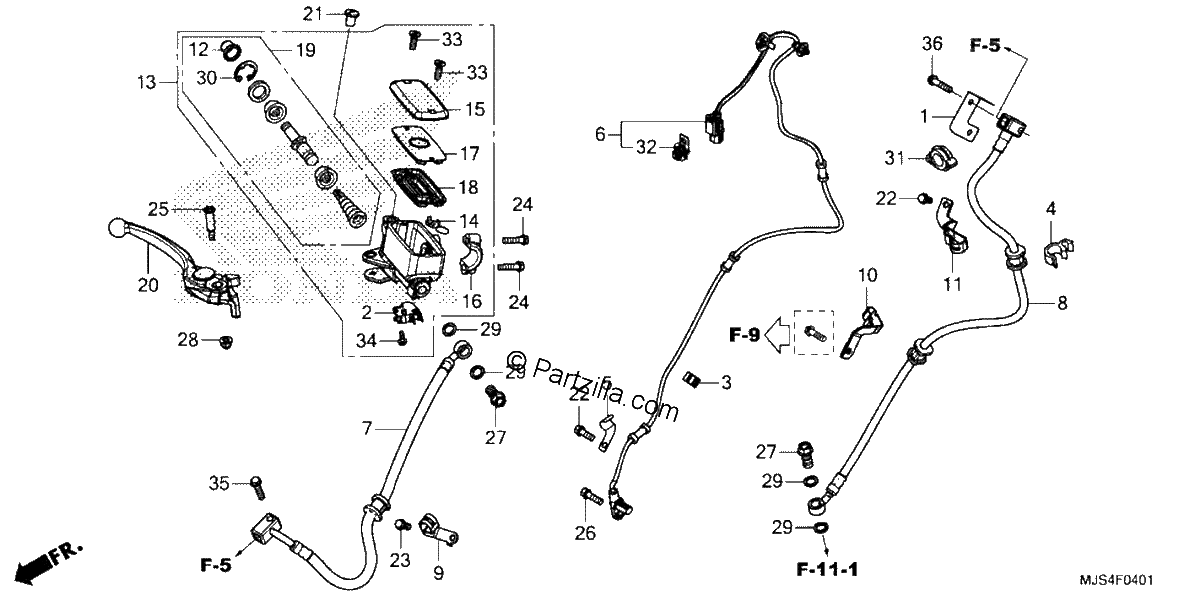

FRONT BRAKE MASTER CYLINDER 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
STAY, HARNESS CLIP
$6.27¢3 137
#002
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
#003
CLAMP, ABS WIRE (D8.5)
$4.00¢2 000
#004
CLAMP, ABS WIRE (D12)
$3.50¢1 750
#005
CLAMP, SENSOR WIRE
$1.35¢675
#006
SENSOR, FR. WHEEL SPEED
$237.59¢118 794
#007
HOSE A, FR. BRAKE
$70.04¢35 019
#008
HOSE D, FR. BRAKE
$78.20¢39 100
#009
CLAMP A, FR. BRAKE
$8.69¢4 344
#010
CLAMP B, FR. BRAKE
$15.35¢7 675
#011
CLAMP B, FR. BRAKE HOSE
$14.49¢7 244
#012
BOOT
$14.24¢7 119
#013
MASTER CYLINDER SUB-Assembly., Front.(COO)
$360.26¢180 131
#013
MASTER CYLINDER SUB-Assembly., Front.(NISSIN)
$360.26¢180 131
#014
PROTECTOR
$5.20¢2 600
#015
CAP, MASTER CYLINDER (NISSIN)
$26.02¢13 013
#016
HOLDER, MASTER CYLINDER
$15.74¢7 869
#017
PLATE, DIAPHRAGM
$12.36¢6 181
#018
DIAPHRAGM
$17.68¢8 838
#019
MASTER CYLINDER SET (NISSIN)
$33.21¢16 606
#020
LEVER ASSY., R. HANDLE (COO)
$52.47¢26 237
#021
PLUG, HANDLE LEVER BRACKET
$3.20¢1 600
#021
PLUG, HANDLE LEVER BRACKET
$3.20¢1 600
#022
BOLT, FLANGE (6X12)
$2.99¢1 494
#023
BOLT, FLANGE (6X14)
$2.99¢1 494
#024
BOLT, FLANGE (6X22)
$2.99¢1 494
#025
BOLT, HANDLE LEVER PIVOT
$11.03¢5 513
#026
BOLT, FLANGE (6X16)
$2.76¢1 381
#027
BOLT, OIL (10X22)
$8.89¢4 444
#028
NUT, CAP (6MM)
$2.76¢1 381
#029
WASHER, OIL BOLT
$4.85¢2 425
#030
CIRCLIP
$3.10¢1 550
#031
CLIP, CABLE (12MM)
$2.88¢1 438
#032
CLIP, CONNECTOR (DARK BROWN)
$5.02¢2 512
#033
SCREW, FLAT (4X12)
$1.16¢581
#033
SCREW, FLAT (4X12)
$1.16¢581
#034
SCREW-WASHER (4X12)
$1.72¢862
#034
SCREW-WASHER (4X12)
$1.72¢862
#035
BOLT, FLANGE (6X25)
$2.70¢1 350
#036
BOLT, FLANGE (6X25)
$1.72¢862
