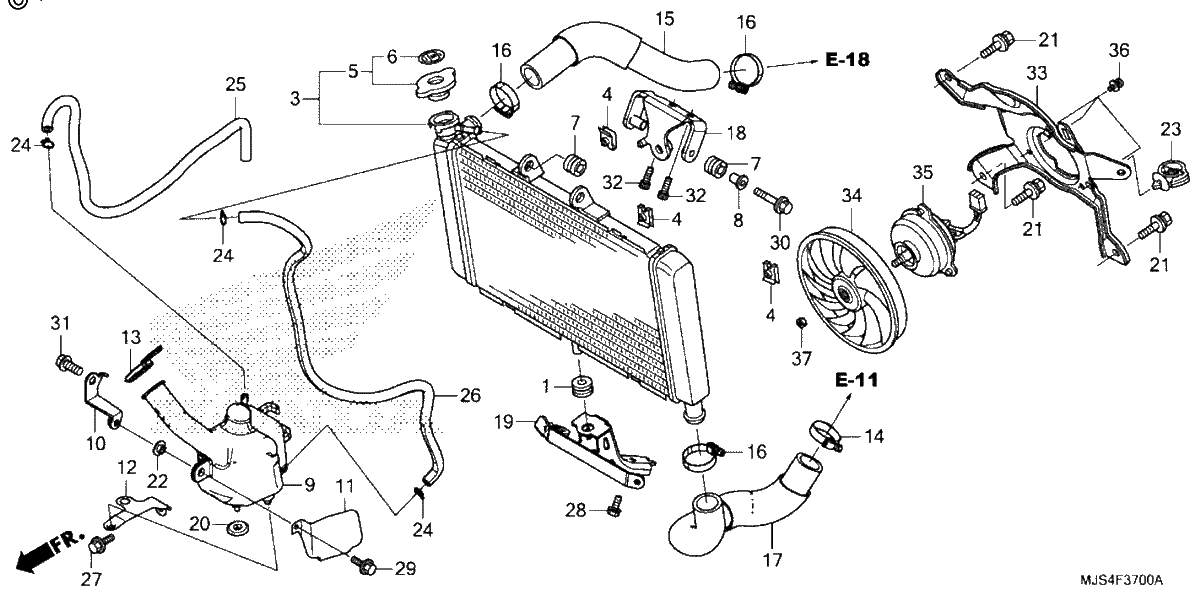

RADIATOR
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
RUBBER, CUSHION
$5.81¢2 906
#003
RADIATOR (COO)
$980.33¢490 163
#004
NUT, SETTING (6MM)
$3.75¢1 875
#005
CAP, RADIATOR
$35.16¢17 581
#006
LABEL, RADIATOR CAP
$3.65¢1 825
#007
RUBBER, RADIATOR MOUNTING
$2.34¢1 169
#008
COLLAR, RADIATOR MOUNTING
$3.20¢1 600
#009
TANK, RADIATOR RESERVE (COO)
$46.05¢23 025
#010
STAY, RESERVE TANK (UPPER)
$9.39¢4 694
#011
GUARD, RESERVE TANK
$21.85¢10 925
#012
STAY, RESERVE TANK (LOWER)
$9.01¢4 506
#013
CAP, RESERVE TANK
$5.83¢2 913
#014
CLAMP, WATER HOSE (35MM)
$12.11¢6 056
#015
HOSE, RADIATOR (UPPER)
$22.11¢11 056
#016
CLAMP, WATER HOSE
$8.58¢4 288
#017
HOSE, RADIATOR (LOWER)
$26.92¢13 462
#018
STAY, RADIATOR (UPPER)
$20.88¢10 438
#019
STAY, RADIATOR (LOWER)
$22.21¢11 106
#020
GROMMET, TOP COVER
$2.76¢1 381
#021
BOLT-WASHER (6X12)
$2.48¢1 238
#022
WASHER, CHAIN CASE SETTING
$3.65¢1 825
#023
CLIP, HARNESS
$4.01¢2 006
#024
CLIP, TUBE (B10)
$2.44¢1 219
#025
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$39.89¢19 944
#026
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$39.89¢19 944
#027
BOLT, FLANGE (6X14)
$1.23¢613
#028
BOLT, FLANGE (6X14)
$1.39¢694
#029
BOLT, FLANGE (6X16)
$2.09¢1 044
#030
BOLT, FLANGE (6X25)
$2.31¢1 156
#031
BOLT, FLANGE (8X20)
$2.40¢1 200
#032
BOLT, SOCKET (6X16)
$2.24¢1 119
#033
SHROUD
$104.01¢52 006
#034
FAN, COOLING (TOYO)
$46.06¢23 031
#035
MOTOR Assembly., FAN
$278.01¢139 006
#036
SCREW-WASHER (4X6)
$1.47¢737
#037
NUT, FLANGE (3MM)
$2.99¢1 494
