FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

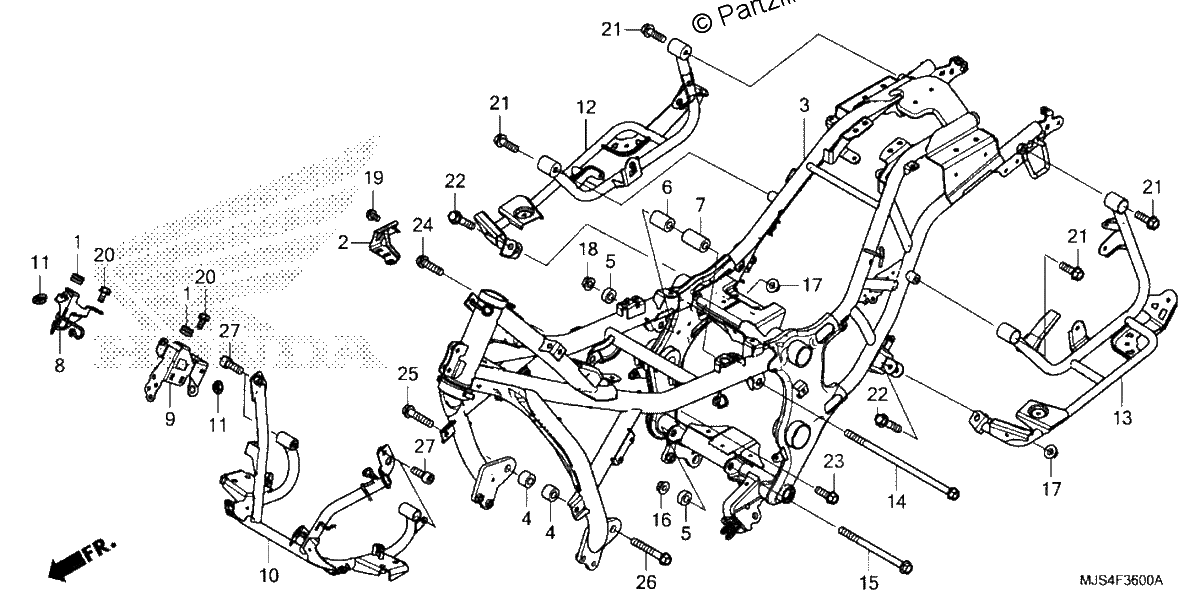

Diagrama de FRAME

Repuestos

#001
17245-107-010
RUBBER, AIR CLEANER HOUSING MOUNTING
$3.36¢1 679
1
#002
32126-MJS-J70
STAY, CONNECTOR
$13.01¢6 503
1
#003
50100-MJS-J70
FRAME
$3375.54¢1 687 769
1
#004
50191-MJF-A00
COLLAR A, Right ENGINE HANGER
$9.82¢4 910
1
#005
50193-MGS-D10
COLLAR B, ENGINE HANGER
$6.58¢3 289
1
#006
50194-MGS-D10
COLLAR C, R. ENGINE HANGER
$13.35¢6 676
1
#007
50195-MGS-D10
COLLAR C, L. ENGINE HANGER
$15.50¢7 751
1
#008
50237-MJS-J70
STAY, R. AIR CLEANER HOUSING
$19.20¢9 603
1
#009
50238-MJS-J70
STAY, L. AIR CLEANER HOUSING
$15.69¢7 843
1
#010
50650-MJS-J70
STAY, STEP
$547.02¢273 510
1
#011
83551-GE2-000
GROMMET, AIR CLEANER HOUSING
$6.27¢3 134
1
#012
84110-MJS-J90
STAY, R. PANNIER CASE
$444.31¢222 157
1
#013
84120-MJS-J90
STAY, L. PANNIER CASE
$444.31¢222 157
1
#014
90103-MGS-D30
BOLT, FLANGE (12X276)
$23.21¢11 603
1
#015
90104-MGS-D30
BOLT, FLANGE (12X168)
$14.36¢7 182
1
#016
90364-MEJ-000
NUT, FLANGE (12MM)
$2.04¢1 018
1
#017
94050-08080
NUT, FLANGE (8MM)
$1.06¢529
1
#018
94050-12000
NUT, FLANGE (12MM)
$1.17¢586
1
#019
95701-06010-08
BOLT, FLANGE (6X10)
$1.82¢909
1
#020
95701-06012-08
BOLT, FLANGE (6X12)
$1.83¢914
1
#021
95701-08025-08
BOLT, FLANGE (8X25)
$0.83¢414
1
#022
95701-08040-08
BOLT, FLANGE (8X40)
$2.50¢1 248
1
#023
95701-12035-08
BOLT, FLANGE (12X35)
$3.75¢1 874
1
#024
95701-12045-08
BOLT, FLANGE (12X45)
$2.17¢1 087
1
#025
95701-12055-08
BOLT, FLANGE (12X55)
$3.89¢1 943
1
#026
95701-12080-08
BOLT, FLANGE (12X80)
$5.22¢2 610
1
#027
96600-08022-00
BOLT, SOCKET (8X22)
$2.09¢1 047
1
