FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

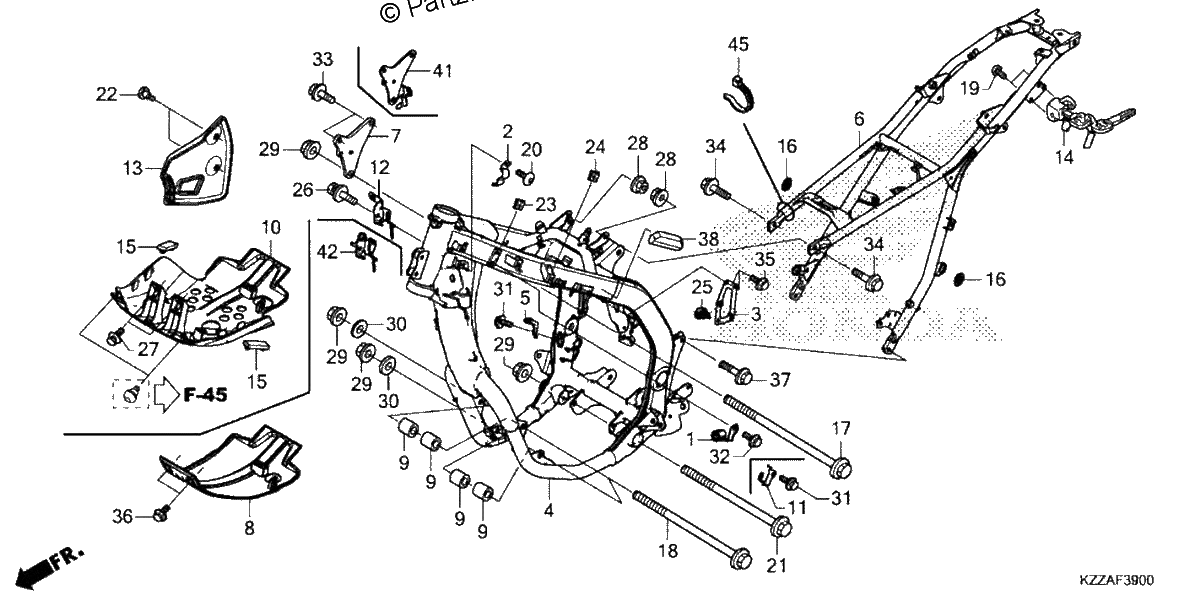

Diagrama de FRAME

Repuestos

#002
35205-KZZ-J80
CLAMP, L. HARNESS
$4.09¢2 047
1
#003
35206-KZZ-J00
STAY, TURN SIGNAL SWITCH CONNECTOR
$3.66¢1 829
1
#004
50100-KZZ-J00ZB
FRAME *NH303M*(MAT AXIS GRAY METALLIC)
$518.67¢259 336
1
#005
50175-KZZ-900
STAY, STOP SWITCH
$2.06¢1 029
1
#006
50200-KZZ-J00ZB
FRAME, RR. *NH303M*(MAT AXIS GRAY METALLIC)
$186.38¢93 190
1
#007
50351-KZZ-D20
PLATE, R. ENGINE HANGER
$7.43¢3 714
1
#009
50361-KZZ-900
COLLAR, ENGINE HANGER
$2.96¢1 478
1
#010
50376-KZZ-J00
COWL (LOWER) (RR)
$75.43¢37 714
1
#011
50401-KZZ-J00
STAY, HARNESS (L)
$9.58¢4 790
1
#012
50402-KZZ-D20
GUIDE, CABLE
$12.80¢6 400
1
#013
50615-KZZ-A20
GUARD, HEEL
$2.96¢1 478
1
#014
50710-KCZ-J71
HOLDER ASSY., HELMET
$47.62¢23 811
1
#015
77204-312-000
RUBBER, SEAT SETTING
$5.63¢2 818
1
#016
83551-300-000
GROMMET, AIR CLEANER HOUSING
$4.09¢2 047
1
#017
90102-KZZ-900
BOLT, FLANGE (10X150)
$3.90¢1 949
1
#018
90104-HP6-A00
BOLT, FLANGE (10X140)
$9.56¢4 778
1
#019
90105-KGA-B00
BOLT, ONE-WAY (6X10)
$2.86¢1 432
1
#020
90106-GBB-710
SCREW, PAN (6X10)
$1.49¢747
1
#021
90127-KR3-000
BOLT, FLANGE (10X130)
$10.26¢5 129
1
#022
90133-KPP-T00
SCREW, PAN (6X14)
$1.51¢753
1
#023
90303-KZZ-J00
NUT, CLIP (6MM)
$1.51¢753
1
#025
90652-KZZ-901
CLIP
$2.06¢1 029
1
#026
93401-08012-08
BOLT-WASHER (8X12)
$1.18¢592
1
#027
93404-06012-00
BOLT-WASHER (6X12)
$1.92¢960
1
#028
94050-08000
NUT, FLANGE (8MM)
$1.06¢529
1
#029
94050-10000
NUT, FLANGE (10MM)
$1.75¢874
1
#030
94101-10800
WASHER, PLAIN (10MM)
$2.22¢1 110
1
#031
95701-06010-00
BOLT, FLANGE (6X10)
$1.49¢747
1
#033
95701-08016-00
BOLT, FLANGE (8X16)
$2.13¢1 064
1
#034
95701-08018-00
BOLT, FLANGE (8X18)
$2.13¢1 064
1
#035
96001-06010-00
BOLT, FLANGE (6X10)
$1.92¢960
1
#037
96300-08020-00
BOLT, FLANGE (8X20)
$1.86¢932
1
