FRONT BRAKE MASTER CYLINDER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

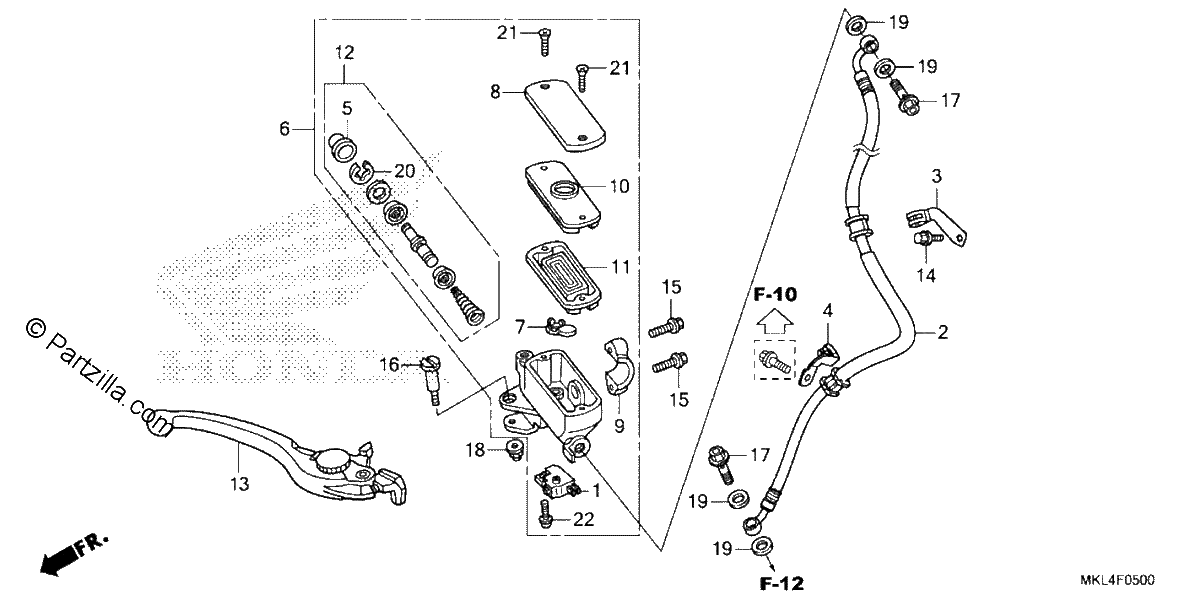

Diagrama de FRONT BRAKE MASTER CYLINDER 1

Repuestos

#001
35340-MGS-D31
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
1
#002
45125-MKA-J31
HOSE, Front BRAKE
$77.36¢38 681
1
#003
45155-MGS-D30
CLAMP A, FR. BRAKE
$11.99¢5 994
1
#004
45156-MGS-D30
CLAMP B, Front BRAKE HOSE
$11.47¢5 738
1
#005
45504-410-003
BOOT
$14.24¢7 119
1
#006
45510-MGS-305
MASTER CYLINDER SUB-Assembly., Front.(COO)
$360.26¢180 131
1
#006
45510-MGS-D31
MASTER CYLINDER SUB-Assembly., Front.(NISSIN)
$360.26¢180 131
1
#007
45512-MA6-006
PROTECTOR
$5.20¢2 600
1
#008
45513-MM5-016
CAP, MASTER CYLINDER (NISSIN)
$26.02¢13 013
1
#009
45517-166-006
HOLDER, MASTER CYLINDER
$15.74¢7 869
1
#010
45518-MM5-006
PLATE, DIAPHRAGM
$12.36¢6 181
1
#011
45520-MM5-006
DIAPHRAGM
$17.68¢8 838
1
#012
45530-KVY-911
MASTER CYLINDER SET (NISSIN)
$33.21¢16 606
1
#013
53170-MEJ-016
LEVER Assembly., Right HANDLE
$52.47¢26 237
1
#013
53170-MEJ-305
LEVER ASSY., R. HANDLE (COO)
$52.47¢26 237
1
#014
90013-GHB-600
BOLT, FLANGE (6X10)
$5.76¢2 881
1
#015
90013-GHB-660
BOLT, FLANGE (6X22)
$2.99¢1 494
1
#016
90114-MA5-671
BOLT, HANDLE LEVER PIVOT
$11.03¢5 513
1
#017
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#018
90201-415-000
NUT, CAP (6MM)
$2.76¢1 381
1
#019
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#020
90651-MA5-671
CIRCLIP
$3.10¢1 550
1
#021
93600-04012-0G
SCREW, FLAT (4X12)
$1.16¢581
1
#021
93600-04012-1G
SCREW, FLAT (4X12)
$1.16¢581
1
#022
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#022
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
