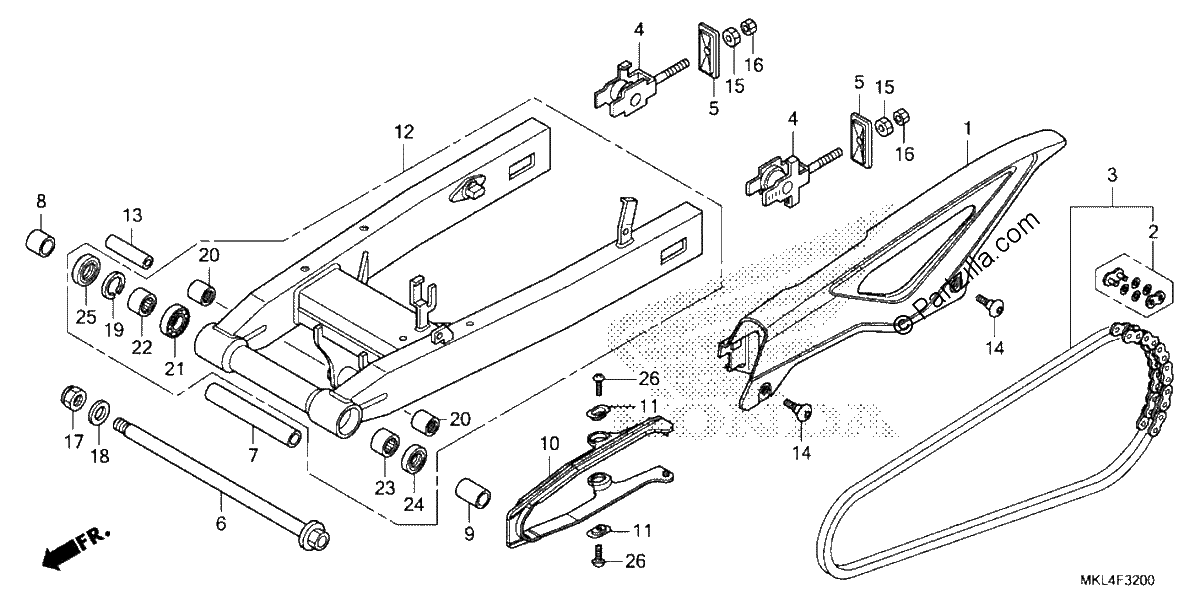

SWINGARM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CASE, DRIVE CHAIN
$135.83¢67 913
#002
MASTER LINK (RK EXCEL)
$15.66¢7 831
#002
MASTER LINK (DAIDO)
$15.92¢7 958
#003
CHAIN, DRIVE (DID520V0-120ZB) (DAIDO) (STANDARD LINK 112L) (STANDARD LINK 114L)
$273.87¢136 936
#003
CHAIN, DRIVE (RK520KHO-120LJFZ) (RK JAPAN) (STANDARD LINK 112L) (STANDARD LINK 114L)
$269.78¢134 889
#004
ADJUSTER, CHAIN
$33.50¢16 750
#005
CAP, SWINGARM END
$21.21¢10 603
#006
BOLT, SWINGARM PIVOT
$46.79¢23 397
#007
COLLAR, PIVOT DISTANCE CENTER
$40.78¢20 390
#008
COLLAR, R. PIVOT DISTANCE
$22.08¢11 040
#009
COLLAR, L PIVOT DISTANCE
$23.83¢11 914
#010
SLIDER, CHAIN
$45.87¢22 937
#011
WASHER, CHAIN SLIDER
$3.06¢1 529
#012
SWINGARM SUB-Assembly., Rear.
$1420.10¢710 050
#013
COLLAR B, CUSHION ARM
$13.86¢6 929
#014
SCREW, SPECIAL (6X14)
$3.21¢1 604
#015
NUT, HEX. (8MM)
$1.02¢512
#016
NUT, HEX. (8MM)
$0.91¢454
#017
NUT, U (18MM)
$7.60¢3 801
#018
WASHER (20X31.5X2)
$3.58¢1 788
#019
CIRCLIP (INNER) (37)
$3.71¢1 857
#020
BEARING, NEEDLE (17X24X30)
$10.52¢5 261
#021
BEARING, RADIAL BALL (20X37X9)
$11.86¢5 928
#022
BEARING, NEEDLE (30X37X20)
$22.76¢11 379
#023
BEARING, NEEDLE
$27.44¢13 719
#024
DUST SEAL (28X37X4)
$7.08¢3 542
#025
DUST SEAL (30X37X4)
$9.34¢4 669
#026
SCREW, TAPPING (5X12)
$1.07¢535
