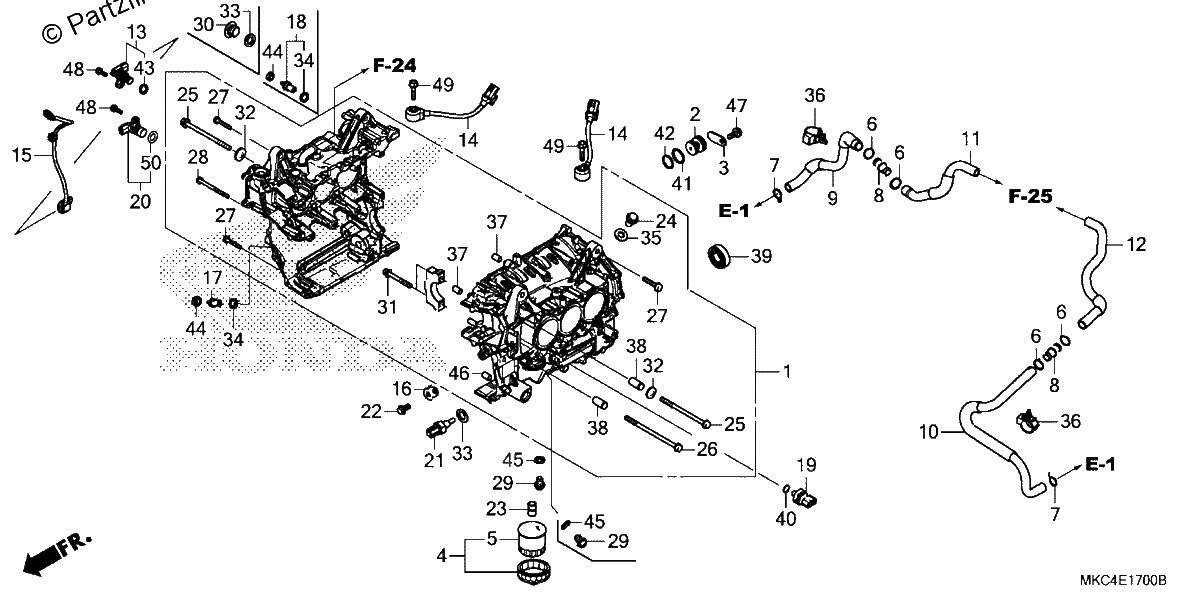

CYLINDER BLOCK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
BLOCK ASSY., CYLINDER
$4475.92¢2 237 962
#002
PLUG, SEALING
$19.88¢9 938
#003
PLATE, MAIN GALLERY
$3.50¢1 750
#004
FILTER SET, OIL
$23.05¢11 525
#004
FILTER SET, OIL
$23.05¢11 525
#005
FILTER, OIL (TOYO ROKI)
$17.98¢8 988
#005
FILTER, OIL (WAKO FILTER)
$17.98¢8 988
#006
CLIP B, TUBE
$2.89¢1 444
#007
CLIP, SUB-TANK HOSE
$5.31¢2 656
#008
JOINT (TWO-WAY)
$12.24¢6 119
#009
TUBE, R. AIR INDUCTION A
$28.77¢14 388
#010
TUBE, L. AIR INDUCTION A
$38.65¢19 325
#011
TUBE, R. AIR INDUCTION B
$21.13¢10 563
#012
TUBE, L. AIR INDUCTION B
$27.25¢13 625
#014
SENSOR, KNOCK
$73.44¢36 719
#016
STAY, HARNESS CLIP
$5.93¢2 963
#017
SWITCH ASSY., NEUTRAL
$27.85¢13 925
#019
SENSOR, OIL PRESSURE
$220.39¢110 194
#022
BOLT, FLANGE (6X12)
$3.40¢1 700
#023
BOSS, OIL FILTER
$10.08¢5 038
#024
BOLT, SEALING (8MM)
$5.06¢2 531
#025
BOLT, FLANGE (8X120)
$6.47¢3 238
#026
BOLT, FLANGE (8X140)
$6.92¢3 463
#027
BOLT, FLANGE (6X35)
$2.91¢1 456
#028
BOLT, FLANGE (6X75)
$4.00¢2 000
#029
BOLT, DRAIN PLUG (12X15)
$6.71¢3 356
#030
BOLT, SPECIAL (10X12)
$5.74¢2 869
#031
BOLT-WASHER (10X80)
$5.76¢2 881
#032
WASHER, SEALING (8MM)
$3.36¢1 681
#033
WASHER, SEALING (10.2MM)
$3.65¢1 825
#034
WASHER, NEUTRAL
$2.48¢1 238
#035
WASHER, SEALING (8MM)
$4.01¢2 006
#036
CLAMP, TUBE (D18)
$3.20¢1 600
#037
PIN, DOWEL (10X16)
$5.21¢2 606
#038
PIN, DOWEL (12X37)
$8.20¢4 100
#039
BEARING, RADIAL BALL (6203U SPL.)
$14.75¢7 375
#040
O-RING (13X1.5)
$2.09¢1 044
#041
O-RING (18.5X1.9) (NOK)
$3.74¢1 869
#042
O-RING (16.7X1.9) (NOK)
$3.89¢1 944
#044
NUT, HEX. (4MM)
$1.34¢669
#045
WASHER, DRAIN PLUG (12MM)
$1.57¢788
#046
PIN, DOWEL (8X14)
$2.89¢1 444
#047
BOLT, FLANGE (6X14)
$1.23¢613
#049
BOLT, FLANGE (8X30)
$1.45¢725
