FINAL DRIVEN GEAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

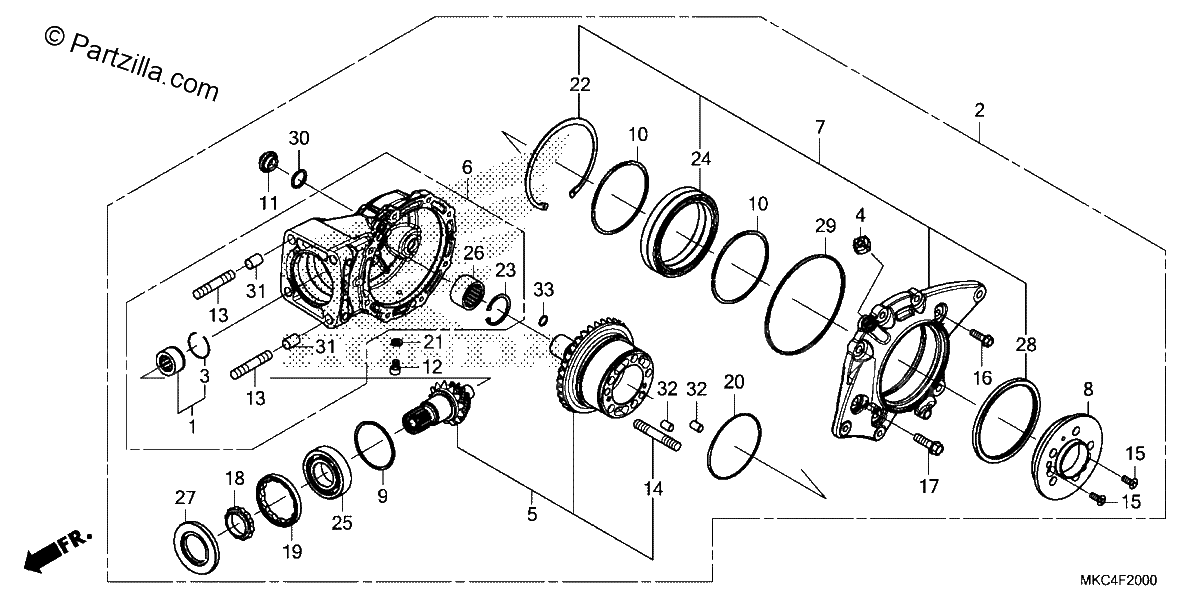

Diagrama de FINAL DRIVEN GEAR

Repuestos

#001
06910-MCA-000
BEARING SET, NEEDLE
$22.76¢11 381
1
#002
41300-MKC-A40
GEAR ASSY., FINAL
$2449.16¢1 224 581
1
#003
41305-MB4-770
RING, STOPPER
$7.24¢3 619
1
#004
41306-MKC-A00
CAP, BREATHER
$9.20¢4 600
1
#005
41310-MKC-A00
GEAR SET, FINAL
$597.02¢298 513
1
#006
41311-MKC-A10
CASE SUB-ASSY., FINAL GEAR
$1432.56¢716 281
1
#007
41320-MKC-A40
COVER SUB-ASSY., FINAL GEAR
$391.90¢195 950
1
#008
41441-MKC-A00
FLANGE, FINAL GEAR SIDE
$146.82¢73 413
1
#009
41454-MGE-000
SHIM E, PINION GEAR (1.56)
$14.00¢7 000
1
#009
41456-MGE-000
SHIM G, PINION GEAR (1.68)
$14.00¢7 000
1
#009
41455-MGE-000
SHIM F, PINION GEAR (1.62)
$14.00¢7 000
1
#009
41452-MGE-000
SHIM C, PINION GEAR (1.44)
$14.00¢7 000
1
#009
41453-MGE-000
SHIM D, PINION GEAR (1.50)
$14.00¢7 000
1
#009
41451-MGE-000
SHIM B, PINION GEAR (1.38)
$14.00¢7 000
1
#009
41450-MGE-000
SHIM A, PINION GEAR (1.32)
$14.00¢7 000
1
#010
41536-MCA-000
SHIM G, RING GEAR (2.18)
$10.10¢5 050
1
#010
41547-MCA-000
SHIM S, RING GEAR (1.76)
$10.94¢5 469
1
#010
41541-MCA-000
SHIM L, RING GEAR (2.48)
$10.10¢5 050
1
#010
41540-MCA-000
SHIM K, RING GEAR (2.42)
$10.10¢5 050
1
#010
41538-MCA-000
SHIM I, RING GEAR (2.30)
$10.10¢5 050
1
#010
41537-MCA-000
SHIM H, RING GEAR (2.24)
$10.10¢5 050
1
#010
41539-MCA-000
SHIM J, RING GEAR (2.36)
$10.10¢5 050
1
#010
41535-MCA-000
SHIM F, RING GEAR (2.12)
$10.10¢5 050
1
#010
41534-MCA-000
SHIM E, RING GEAR (2.06)
$10.10¢5 050
1
#010
41533-MCA-000
SHIM D, RING GEAR (2.00)
$10.10¢5 050
1
#010
41532-MCA-000
SHIM C, RING GEAR (1.94)
$10.10¢5 050
1
#010
41531-MCA-000
SHIM B, RING GEAR (1.88)
$10.10¢5 050
1
#010
41530-MCA-000
SHIM A, RING GEAR (1.82)
$10.10¢5 050
1
#011
41530-MGE-000
CAP, FINAL GEAR CASE HOLE
$19.38¢9 688
1
#012
90109-ME5-770
BOLT, SOCKET (8X11)
$6.95¢3 475
1
#013
90124-MGE-300
BOLT, STUD (12X48)
$13.49¢6 744
1
#014
90125-MKC-A00
BOLT, STUD (12X51)
$7.44¢3 719
1
#015
90132-MCA-000
SCREW, FLAT (6X16)
$1.86¢931
1
#016
90132-MKC-A00
BOLT, FLANGE (8X28)
$3.59¢1 794
1
#017
90134-MGE-000
BOLT, FLANGE (10X35)
$3.71¢1 856
1
#018
90241-MCH-000
NUT, LOCK (35MM)
$11.00¢5 500
1
#019
90242-MCH-000
NUT, LOCK (75MM)
$31.23¢15 613
1
#020
90351-MCA-003
O-RING
$7.05¢3 525
1
#021
90471-580-000
GASKET (8MM)
$3.65¢1 825
1
#022
90653-MCA-000
CIRCLIP (INNER) (125MM)
$25.29¢12 644
1
#023
90654-MKC-A01
CIRCLIP (INNER) (42)
$5.06¢2 531
1
#024
91051-MCA-003
BEARING, RADIAL BALL (100X125X26)
$152.56¢76 281
1
#025
91054-MKC-A01
BEARING, BALL SPECIAL (35X72X17)
$39.71¢19 856
1
#026
91057-MKC-A01
BEARING, NEEDLE (30X42X23)
$25.80¢12 900
1
#027
91254-MKC-A01
OIL SEAL (42X76X8)
$18.44¢9 219
1
#028
91265-MCA-003
OIL SEAL (110X125X7)
$25.21¢12 606
1
#029
91351-MKC-A00
O-RING, FINAL GEAR CASE
$13.49¢6 744
1
#030
91352-MGE-003
O-RING (21.5X2.9)
$2.50¢1 250
1
#031
94301-14200
PIN, DOWEL (14X20)
$2.94¢1 469
1
#032
94303-10160
PIN, DOWEL (10X16)
$3.17¢1 588
1
#033
91355-MGE-700
O-RING (12X1.5)
$2.52¢1 263
1
