PEDAL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

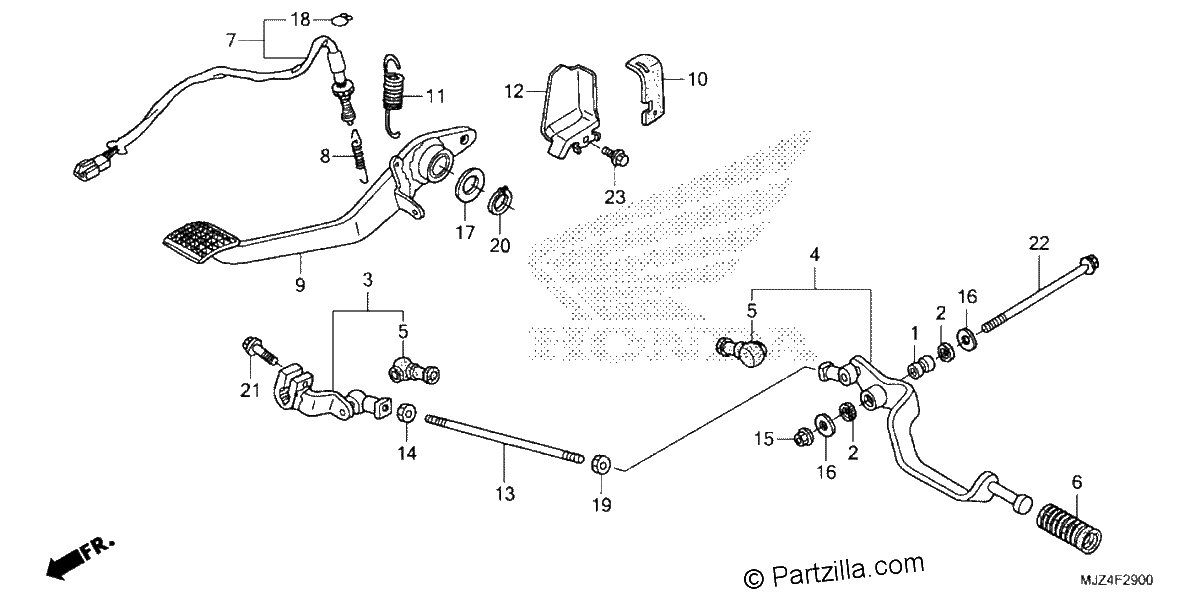

Diagrama de PEDAL

Repuestos

#001
24705-MK3-000
COLLAR, GEARSHIFT PEDAL PIVOT
$11.40¢5 698
1
#002
24706-MK3-770
RUBBER, DUST SEAL
$4.99¢2 496
1
#003
24710-MCS-G00
ARM, GEARSHIFT
$45.85¢22 925
1
#004
24720-MCS-305
PEDAL, GEARSHIFT (COO)
$99.54¢49 772
1
#004
24720-MCS-G00
PEDAL, GEARSHIFT
$99.54¢49 772
1
#005
24724-MBW-D21
COVER, DUST
$7.77¢3 887
1
#006
24781-KR3-770
RUBBER, GEARSHIFT PEDAL
$3.78¢1 892
1
#007
35350-MCS-G01
SWITCH ASSY., RR. STOP (TOYO)
$15.19¢7 596
1
#008
35357-KR3-670
SPRING, STOP SWITCH
$5.70¢2 852
1
#009
46500-MCS-305
PEDAL, RR. BRAKE (COO)
$110.85¢55 424
1
#009
46500-MCS-G00
PEDAL, RR. BRAKE
$110.85¢55 424
1
#010
46506-MCS-G00
RUBBER, RR. BRAKE GUARD
$16.46¢8 228
1
#011
46511-MBW-000
SPRING, BRAKE PEDAL
$6.77¢3 387
1
#012
50618-MCS-G01
COVER, RR. STOP SWITCH
$27.22¢13 610
1
#013
90065-MCS-G00
BOLT, TIE ROD
$3.68¢1 840
1
#014
90201-700-000
NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)
$0.91¢454
1
#015
90301-GCT-J50
NUT, FLANGE (8MM)
$1.00¢500
1
#016
90514-921-000
WASHER (8MM)
$1.22¢609
1
#017
90557-230-000
WASHER (15.2X25)
$2.83¢1 414
1
#018
90601-KAF-003
CLIP, SWITCH COVER
$3.16¢1 581
1
#019
94002-06020-0S
NUT, HEX. (6MM)
$1.30¢650
1
#020
94511-15000
CIRCLIP, OUTER (15MM)
$0.80¢402
1
#021
95701-06020-00
BOLT, FLANGE (6X20)
$2.09¢1 047
1
#022
95701-08110-08
BOLT, FLANGE (8X110)
$5.26¢2 628
1
#023
96001-06012-00
BOLT, FLANGE (6X12)
$2.13¢1 064
1
