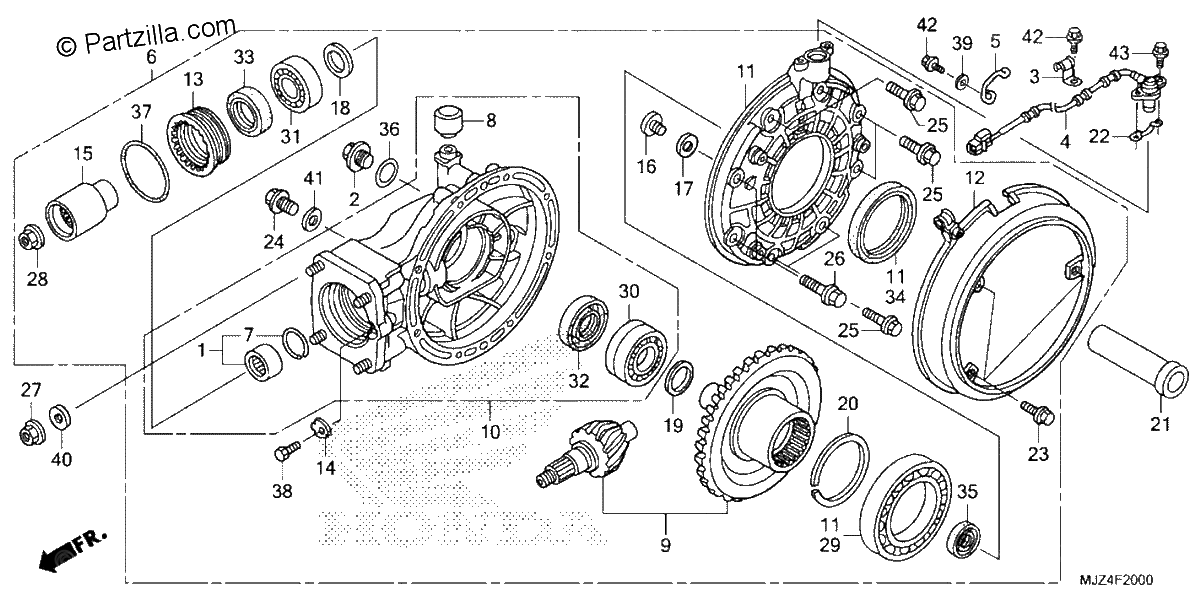

FINAL DRIVEN GEAR
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
BEARING SET, NEEDLE
$42.47¢21 237
#002
CAP, TAPPET ADJUSTING HOLE
$12.51¢6 256
#002
CAP, VALVE ADJ.
No Disponible
#002
CAP, VALVE ADJ.
No Disponible
#003
CLIP B, TUBE
$3.95¢1 975
#004
SENSOR, RR. WHEEL SPEED
$174.90¢87 450
#005
GUIDE, SPEED SENSOR WIRE
$8.88¢4 438
#006
GEAR ASSY., FINAL DRIVEN
$2266.80¢1 133 400
#007
RING, STOPPER
$7.24¢3 619
#008
CAP, BREATHER
$10.81¢5 406
#009
GEAR SET, FINAL
$507.95¢253 975
#010
CASE SUB-ASSY., FINAL GEAR
$1567.34¢783 669
#011
COVER SUB-ASSY., FINAL GEAR
$283.81¢141 906
#012
PLATE, DUST GUARD
$39.49¢19 744
#013
RETAINER, BEARING
$148.49¢74 244
#014
LOCK A, BEARING ADJUSTING (SINGLE TAB)
$3.24¢1 619
#014
LOCK B, BEARING ADJUSTING (DOUBLE TABS)
$3.24¢1 619
#015
JOINT, PINION
$84.74¢42 369
#016
PIN, RING GEAR STOPPER
$41.09¢20 544
#017
SHIM A, STOPPER PIN (0.10)
$6.81¢3 406
#017
SHIM B, STOPPER PIN (0.15)
$6.23¢3 113
#018
SHIM H, PINION GEAR (1.53)
$9.57¢4 788
#018
SHIM M, PINION GEAR (1.68)
$9.57¢4 788
#018
SHIM L, PINION GEAR (1.65)
$9.57¢4 788
#018
SHIM K, PINION GEAR (1.62)
$9.57¢4 788
#018
SHIM J, PINION GEAR (1.59)
$9.57¢4 788
#018
SHIM I, PINION GEAR (1.56)
$9.57¢4 788
#018
SHIM A, PINION GEAR (1.32)
$9.57¢4 788
#018
SHIM G, PINION GEAR (1.50)
$9.57¢4 788
#018
SHIM F, PINION GEAR (1.47)
$9.57¢4 788
#018
SHIM E, PINION GEAR (1.44)
$9.57¢4 788
#018
SHIM D, PINION GEAR (1.41)
$9.57¢4 788
#018
SHIM C, PINION GEAR (1.38)
$9.57¢4 788
#018
SHIM B, PINION GEAR (1.35)
$9.57¢4 788
#019
WASHER, SPECIAL (35X40)
$15.80¢7 900
#020
SHIM Q, RING GEAR (2.30)
$29.22¢14 612
#020
SHIM P, RING GEAR (2.27)
$29.22¢14 612
#020
SHIM O, RING GEAR (2.24)
$29.22¢14 612
#020
SHIM J, RING GEAR (2.09)
$29.22¢14 612
#020
SHIM N, RING GEAR (2.21)
$29.22¢14 612
#020
SHIM M, RING GEAR (2.18)
$29.22¢14 612
#020
SHIM L, RING GEAR (2.15)
$29.22¢14 612
#020
SHIM K, RING GEAR (2.12)
$30.54¢15 269
#020
SHIM D, RING GEAR (1.91)
$29.22¢14 612
#020
SHIM I, RING GEAR (2.06)
$30.54¢15 269
#020
SHIM H, RING GEAR (2.03)
$29.22¢14 612
#020
SHIM G, RING GEAR (2.00)
$30.54¢15 269
#020
SHIM F, RING GEAR (1.97)
$29.22¢14 612
#020
SHIM E, RING GEAR (1.94)
$30.54¢15 269
#020
SHIM C, RING GEAR (1.88)
$29.22¢14 612
#020
SHIM B, RING GEAR (1.85)
$30.54¢15 269
#020
SHIM A, RING GEAR (1.82)
$29.22¢14 612
#021
COLLAR B, RR. AXLE DISTANCE
$39.94¢19 969
#022
SHIM, WHEEL SENSOR
$25.39¢12 694
#023
BOLT, FLANGE (6X12) (CT200)
$1.90¢950
#024
BOLT, PLUG (14MM)
$8.22¢4 113
#025
BOLT, FLANGE (8X27)
$9.83¢4 913
#026
BOLT, FLANGE (10X35)
$9.56¢4 781
#027
NUT, HEX. (10MM)
$5.90¢2 950
#028
NUT, HEX. (16MM)
$8.77¢4 387
#029
BEARING, RADIAL BALL (65X100X11) (TOYO)
$136.19¢68 094
#030
BEARING, RADIAL BALL (35X62X19)
$53.69¢26 844
#031
BEARING, RADIAL BALL (QJ3/28V1)
$78.80¢39 400
#032
OIL SEAL (35X54X8) (NOK)
$18.40¢9 200
#033
OIL SEAL (39X56X7) (NOK)
$15.64¢7 819
#034
OIL SEAL (65X85X7) (NOK)
$19.71¢9 856
#035
DUST SEAL (26X40X5)
$8.03¢4 013
#036
O-RING (30.8MM)
$4.54¢2 269
#037
O-RING (64.5X3.5) (ARAI)
$5.47¢2 738
#038
BOLT, HEX. (6X12)
$1.82¢913
#039
WASHER, PLAIN (6MM)
$0.84¢419
#039
WASHER, PLAIN (6MM)
$0.84¢419
#039
WASHER, PLAIN (6MM)
$0.84¢419
#040
WASHER, PLAIN (10MM)
$1.47¢737
#041
WASHER, DRAIN PLUG (14MM)
$0.80¢400
#042
BOLT, FLANGE (6X14)
$1.23¢613
#043
BOLT, FLANGE (6X14)
$2.31¢1 156
