FRONT CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

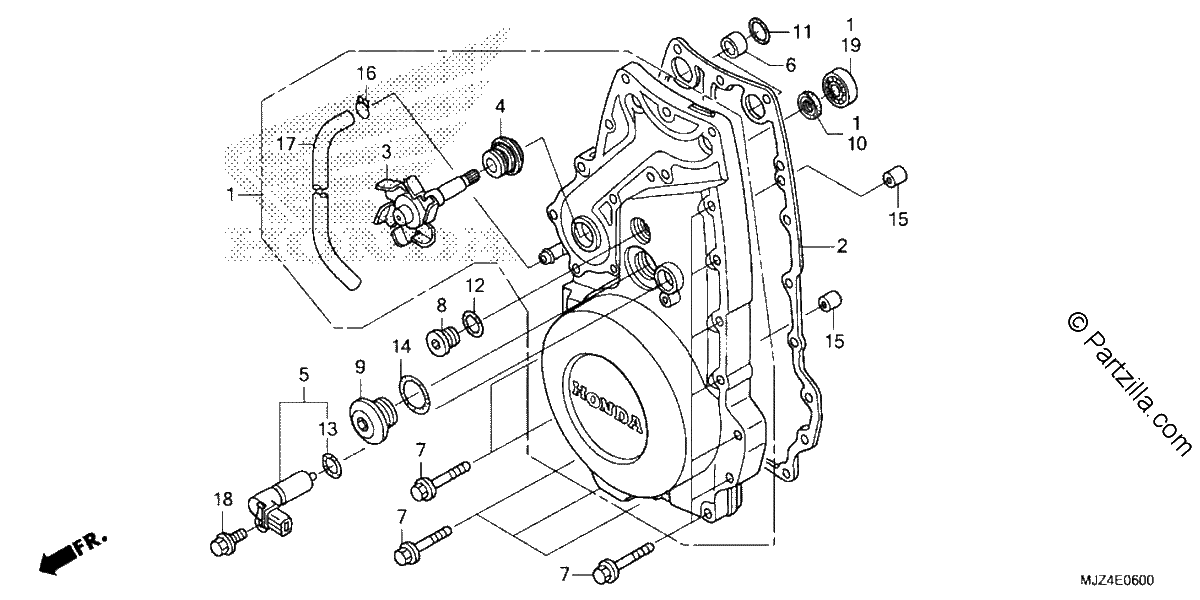

Diagrama de FRONT CRANKCASE COVER

Repuestos

#001
11340-MCS-D80
COVER, FR. CRANKCASE
$593.30¢296 650
1
#002
11394-MCS-010
GASKET, FR. CRANKCASE COVER
$28.63¢14 313
1
#002
11394-MCS-020
GASKET, Front CRANKCASE COVER
$24.33¢12 163
1
#003
19210-MCS-000
IMPELLER, WATER PUMP
$66.88¢33 438
1
#004
19217-MAL-300
SEAL, MECHANICAL
$61.57¢30 787
1
#005
30300-MCS-003
GENERATOR ASSY., PULSE
$100.60¢50 300
1
#006
51486-087-711
COLLAR, FR. FORK (OUTER)
$6.90¢3 450
1
#007
90004-GHB-710
BOLT, FLANGE (6X40) (NSHF)
$4.94¢2 469
1
#008
90084-KY2-000
CAP (14MM)
$18.54¢9 269
1
#009
90087-KT7-000
CAP
$22.91¢11 456
1
#010
91201-965-000
OIL SEAL (12X22X5)
$4.91¢2 456
1
#010
91201-148-003
OIL SEAL (12X22X5) (ARAI)
$4.91¢2 456
1
#011
91301-MCS-A11
O-RING (19.9X3.1)
$4.19¢2 094
1
#012
91303-377-000
O-RING (13.8X2.5)
$4.15¢2 075
1
#013
91309-PX4-003
O-RING (16X2.1) (NOK)
$3.65¢1 825
1
#014
91356-425-003
O-RING (30MM)
$3.65¢1 825
1
#014
91356-425-005
O-RING (29.7X2.4) (NOK)
$3.65¢1 825
1
#015
94301-08140
PIN, DOWEL (8X14)
$2.89¢1 444
1
#016
95002-02100
CLIP, TUBE (B10)
$2.44¢1 219
1
#017
95005-55008-10M
BULK HOSE, VACUUM (5.5X8000) (5.3X670)
No Disponible
1
#018
95701-06018-00
BOLT, FLANGE (6X18)
$2.09¢1 044
1
#019
96100-62003-00
BEARING, RADIAL BALL (6200)
$14.89¢7 444
1
