REAR CRANKCASE COVER CLUTCH SLAVE CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

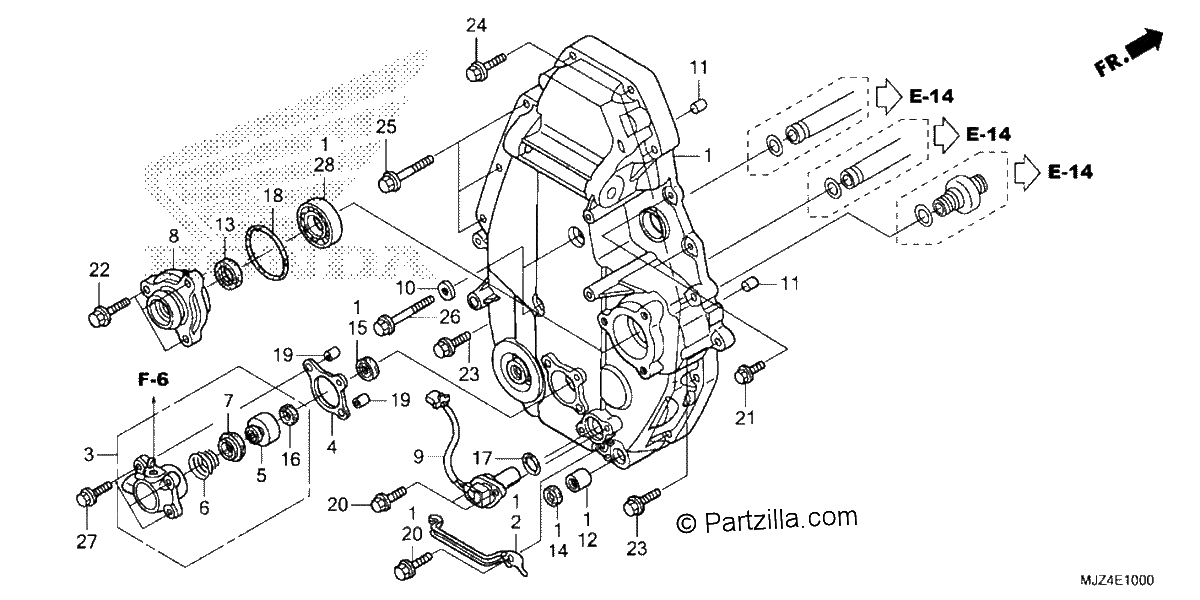

Diagrama de REAR CRANKCASE COVER CLUTCH SLAVE CYLINDER

Repuestos

#001
21110-MCS-D80
CASE, RR.
$607.67¢303 836
1
#002
21114-MCS-000
CLAMP B, DRAIN HOSE
$7.31¢3 657
1
#003
22860-MCS-000
CYLINDER ASSY., CLUTCH SLAVE
$100.98¢50 491
1
#004
22862-MGJ-D00
GASKET, SLAVE CYLINDER
$5.55¢2 777
1
#005
22863-MJ8-003
PISTON, SLAVE CYLINDER
$28.46¢14 231
1
#006
22864-MT7-016
SPRING, SLAVE CYLINDER
$6.92¢3 461
1
#007
22865-MJ8-003
CUP, SLAVE CYLINDER
$12.28¢6 141
1
#008
23751-MCS-000
HOLDER, FINAL SHAFT BEARING
$33.43¢16 715
1
#009
37700-MCS-003
SENSOR ASSY., SPEED
$152.65¢76 326
1
#010
90463-MCS-000
WASHER, SEALING (8.5MM)
$2.66¢1 328
1
#011
90701-MV9-670
PIN, DOWEL (10X16)
$4.80¢2 398
1
#012
91106-MCF-003
BEARING, NEEDLE (14X22X16)
$13.41¢6 704
1
#013
91201-MV1-003
OIL SEAL (28X45X7)
$8.18¢4 088
1
#014
91203-KK3-830
OIL SEAL (14X22X5)
$4.25¢2 128
1
#015
91204-MB0-013
OIL SEAL (8X25X8) (ARAI)
$4.52¢2 260
1
#016
91209-MB0-003
OIL SEAL (8X18X5)
$4.52¢2 260
1
#017
91302-MAL-601
O-RING (18.1X3.6)
$3.93¢1 967
1
#018
91351-881-000
O-RING (66MM)
$5.13¢2 565
1
#019
94301-08100
PIN, DOWEL (8X10)
$2.66¢1 328
1
#020
95701-06014-00
BOLT, FLANGE (6X14)
$1.13¢564
1
#021
95701-06020-00
BOLT, FLANGE (6X20)
$2.09¢1 047
1
#022
95701-08028-00
BOLT, FLANGE (8X28)
$1.64¢822
1
#023
95701-08032-00
BOLT, FLANGE (8X32)
$1.64¢822
1
#024
95701-08040-00
BOLT, FLANGE (8X40)
$1.41¢707
1
#025
95701-08075-00
BOLT, FLANGE (8X75)
$3.16¢1 581
1
#026
95701-08085-00
BOLT, FLANGE (8X85)
$3.09¢1 547
1
#027
96001-06022-00
BOLT, FLANGE (6X22)
$1.47¢736
1
#028
96100-62063-00
BEARING, RADIAL BALL (6206)
$23.09¢11 546
1
