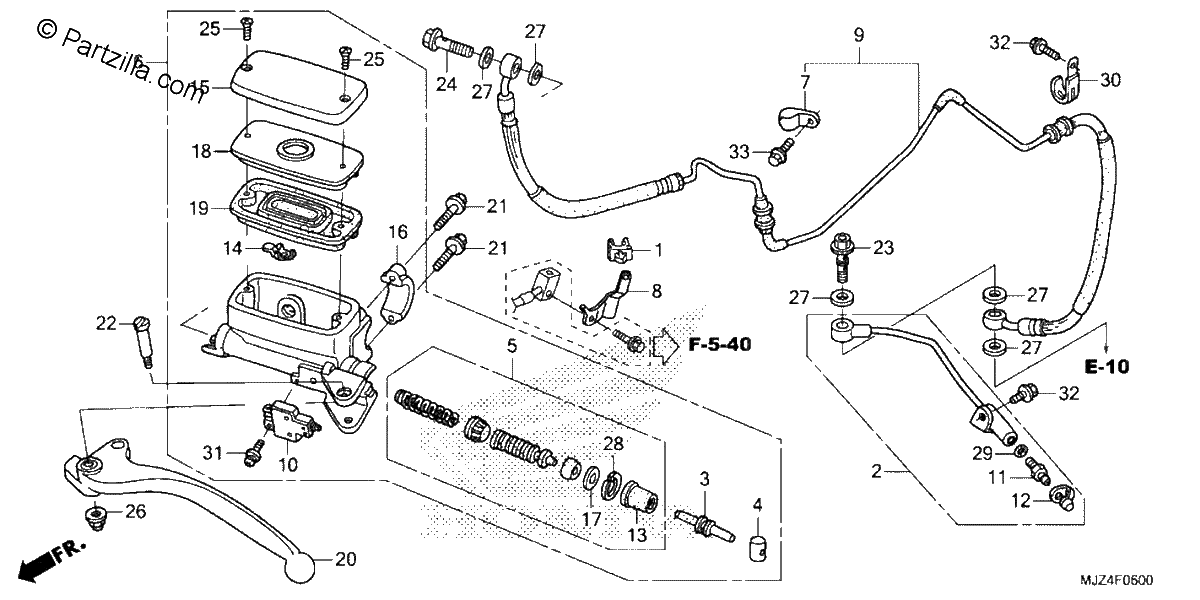

CLUTCH MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CLIP, THROTTLE WIRE
$8.44¢4 220
#002
PIPE ASSY., BLEEDER
$75.01¢37 507
#003
ROD, PUSH
$22.08¢11 040
#004
BUSH
$13.94¢6 969
#005
PISTON SET, MASTER
$68.30¢34 149
#006
MASTER CYLINDER SUB-ASSY., CLUTCH
$462.33¢231 167
#007
CLAMP A, CLUTCH PIPE
$4.78¢2 392
#008
CLAMP C, CLUTCH PIPE
$12.52¢6 262
#009
PIPE, CLUTCH
$235.09¢117 547
#010
SWITCH ASSY., CLUTCH
$19.45¢9 723
#011
SCREW, BLEEDER
$6.45¢3 226
#012
CAP, BLEEDER SCREW
$5.63¢2 818
#012
CAP, BLEEDER
$5.63¢2 818
#012
CAP, BLEEDER
No Disponible
#013
BOOT
$13.10¢6 549
#014
PROTECTOR
$4.78¢2 392
#015
CAP, MASTER CYLINDER (NISSIN)
$32.69¢16 347
#016
HOLDER, MASTER CYLINDER
$13.51¢6 756
#017
PLATE, STOPPER
$2.30¢1 150
#018
PLATE, DIAPHRAGM
$11.37¢5 687
#019
DIAPHRAGM
$16.26¢8 131
#020
LEVER, L. HANDLE (COO)
$34.88¢17 440
#020
LEVER, L. HANDLE
$34.88¢17 440
#021
BOLT, FLANGE (6X22)
$1.47¢736
#021
BOLT, FLANGE (6X22)
$1.47¢736
#022
BOLT, HANDLE LEVER PIVOT
$10.14¢5 071
#023
BOLT, OIL (10X34)
$8.61¢4 307
#024
BOLT, OIL (10X22)
$8.18¢4 088
#025
SCREW, FLAT
$2.54¢1 271
#026
NUT, CAP (6MM)
$2.54¢1 271
#027
WASHER, OIL BOLT
$4.46¢2 231
#028
CIRCLIP (INNER) (18MM)
$2.30¢1 150
#029
O-RING
$3.51¢1 754
#030
CLIP, CORD
$3.69¢1 846
#031
SCREW-WASHER (4X12)
$1.59¢793
#031
SCREW-WASHER (4X12)
$1.59¢793
#032
BOLT, FLANGE (6X10)
$1.92¢960
#033
BOLT, FLANGE (6X16)
$1.24¢621
