GENERATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

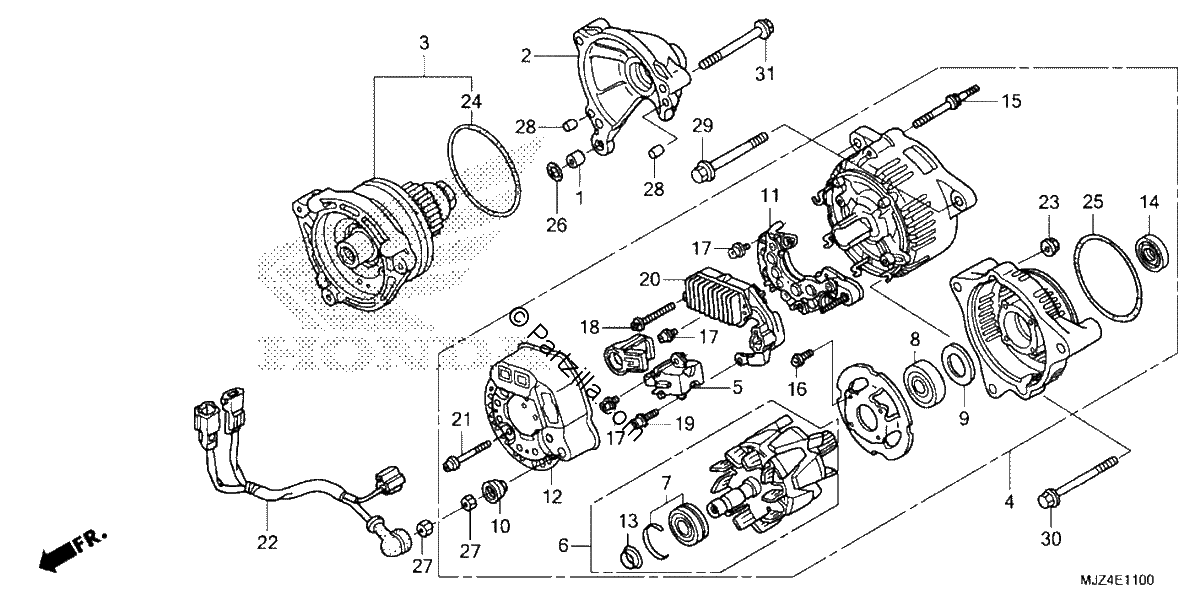

Diagrama de GENERATOR

Repuestos

#001
11104-MCS-000
ORIFICE (1.2MM)
$2.83¢1 414
1
#002
11203-MCS-000
HOLDER, ALTERNATOR BEARING
$97.39¢48 697
1
#003
13430-MCS-020
GEAR ASSY., ALTERNATOR DRIVEN
$522.34¢261 171
1
#004
31100-MCS-013
ALTERNATOR ASSY.
$1124.04¢562 022
1
#005
31105-MAJ-G41
HOLDER ASSY., BRUSH
$49.81¢24 903
1
#006
31110-MCS-003
ROTOR ASSY.
$482.15¢241 074
1
#007
31111-MAJ-G41
BEARING, RR.
$34.33¢17 164
1
#008
31114-MCS-013
BEARING, FR.
$13.82¢6 911
1
#009
31116-MCS-003
COVER, BEARING
$12.68¢6 342
1
#010
31119-MAJ-G41
BUSH, INSULATION
$8.61¢4 307
1
#011
31127-MCS-003
RECTIFIER ASSY.
$263.44¢131 721
1
#012
31135-MAJ-G41
COVER, RR. END
$28.83¢14 415
1
#013
31138-PD1-004
COVER, BEARING
$11.82¢5 911
1
#014
31141-MCS-003
OIL SEAL
$7.67¢3 835
1
#015
31145-PE9-941
BOLT, STUD
$7.06¢3 530
1
#016
31146-MAJ-G41
SCREW
$3.79¢1 897
1
#017
31147-PT0-003
SCREW-WASHER
$3.81¢1 903
1
#018
31148-PD1-004
SCREW-WASHER (4X25)
$4.05¢2 024
1
#019
31149-PZ1-003
SCREW
$2.20¢1 098
1
#020
31150-PZ3-003
REGULATOR ASSY.
$388.62¢194 310
1
#021
31153-PZ1-003
BOLT
$2.48¢1 242
1
#022
32130-MCS-000
SUB-HARNESS, ALTERNATOR
$28.69¢14 346
1
#023
90231-PD1-014
NUT-WASHER (5MM)
$2.94¢1 472
1
#024
91303-MCS-003
O-RING (95.5X2.4)
$7.29¢3 645
1
#025
91304-MAJ-G41
O-RING
$6.92¢3 461
1
#026
91305-422-000
O-RING (9.8X2.4)
$3.07¢1 535
1
#027
94001-06080-0S
NUT, HEX. (6MM)
$1.47¢736
1
#028
94302-08100
PIN B, DOWEL (8X10)
$2.66¢1 328
1
#029
95701-08065-00
BOLT, FLANGE (8X65)
$2.04¢1 018
1
#030
95701-08085-00
BOLT, FLANGE (8X85)
$3.09¢1 547
1
#031
95701-08090-00
BOLT, FLANGE (8X90)
$3.68¢1 840
1
